Fluke 360 Clamp Meter Kit - Includes BS-150 Borescope for FREE

Model: 360-KIT | UPC: 095969364508

Fluke 360 Clamp Meter Kit - Includes BS-150 Borescope for FREE-


Downloads: datasheet

Fluke 360 Clamp Meter Kit - Includes BS-150 Borescope for FREE

Model: 360-KIT

Rugged and accurate solution for leakage current measurements. Features 3mA range and a broad range measurement from 1µA up to 60A. This value added kit includes the REED BS-150 Borescope for FREE.

Rugged and accurate solution for leakage current measurements. Features 3mA range and a broad range measurement from 1µA up to 60A. This value added kit includes the REED BS-150 Borescope for FREE.

This product has been discontinued. Click here for the replacement model(s).


Fluke 360-KIT Offers

Purchase a Fluke 360 Leakage Current Clamp Meter and receive a FREE REED R8500 Video Inspection Camera.

Fluke 360 Clamp Meter

Measurement of leakage current with 3 mA range and 1 µA of resolution, for accurate monitoring of insulation erosion.

  • Method of Detection: Mean value
  • Display: 3200 count digital display; 32 segment, LCD bar-graph display
  • Measurement Cycle: 2 times/second (digital); 12 time/second (bar-graph)
  • Auto-range switching
  • Conformance to IEC1010 and EMC standards

REED R8500 9mm Video Inspection Camera, Recordable

9mm camera diameter and 2.5" color TFT LCD monitor. Saves high resolution images and records video.

  • Camera and video functions save high resolution images and video
  • Comfortable pistol grip design
  • High resolution 2.5" color LCD monitor
  • 9mm waterproof (IP67) camera head
  • Gooseneck cable retains configured shape
  • Cable expandable up to 30 ft. (~9m) with extensions (optional)
  • Four high visibility LED lights provide illumination in dimly lit environments
  • Expandable memory up to 32Gb (SD card sold separately)
  • 180° mirror rotation function
  • Low battery indicator and auto shut off
Applications

Commonly used in the visual inspection of aircraft engines, aero-derivative industrial gas turbines, steam turbines, diesel engines, and automotive and truck engines. They are also used in manufacturing of machined or cast parts to inspect critical interior surfaces for burrs, surface finish or complete through-holes. Other common uses include forensic applications in law enforcement and building inspection, and in gun-smithing for inspecting the interior bore of a firearm.

Fluke 360 Specifications

AC Current Range and Resolution 3mA: 0.001mA
30mA: 0.01mA
30A: 0.01A
60A: 0.1A
AC Current Accuracy 3mA to 30mA: 1% + 5
0 to 50A: 1% +5
50 to 60A: 5% + 5
Max Permissible Current 60A RMS
Display Digital display: 3200 counts
Bar-graph display: 32 segments, LCD
Measurement Cycle 2 times/second (Digital display), 12 times/second (Bar-graph display)
Range Switching Auto-range
Temperature Coefficient 0.05% of range / °C or less
(within the ranges of 0 to 18°C and 28 to 50°C for measurement of 0 to 50A)
Circuit Voltage ≤300V RMS
Safety Standard EN 61010-1, EN 61010-2-032. 300 V CAT II, Pollution Degree 2
Battery Life Approx. 90 hours (when continuously used)
Click here for complete specifications on the Fluke 360-KIT

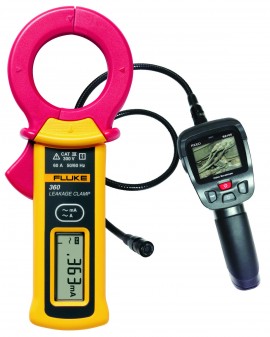

This Fluke 360 Clamp Meter Kit Includes


Fluke 360 AC Leakage Current Clamp Meter

Fluke 360 AC Leakage Current Clamp Meter

Rugged and accurate solution for leakage current measurements. Features 3mA range and a broad range measurement from 1µA up to 60A.


REED R8500 9mm Video Inspection Camera, Recordable

REED R8500 9mm Video Inspection Camera, Recordable

9mm camera diameter and 2.5" color TFT LCD monitor. Saves high resolution images and records video.

Customer Reviews for the Fluke 360-KIT

Ask a question about Fluke 360 Clamp Meter Kit - Includes BS-150 Borescope for FREE

Fluke 360-KIT Offers

Purchase a Fluke 360 Leakage Current Clamp Meter and receive a FREE REED R8500 Video Inspection Camera.

Fluke 360 Clamp Meter

Measurement of leakage current with 3 mA range and 1 µA of resolution, for accurate monitoring of insulation erosion.

  • Method of Detection: Mean value
  • Display: 3200 count digital display; 32 segment, LCD bar-graph display
  • Measurement Cycle: 2 times/second (digital); 12 time/second (bar-graph)
  • Auto-range switching
  • Conformance to IEC1010 and EMC standards

REED R8500 9mm Video Inspection Camera, Recordable

9mm camera diameter and 2.5" color TFT LCD monitor. Saves high resolution images and records video.

  • Camera and video functions save high resolution images and video
  • Comfortable pistol grip design
  • High resolution 2.5" color LCD monitor
  • 9mm waterproof (IP67) camera head
  • Gooseneck cable retains configured shape
  • Cable expandable up to 30 ft. (~9m) with extensions (optional)
  • Four high visibility LED lights provide illumination in dimly lit environments
  • Expandable memory up to 32Gb (SD card sold separately)
  • 180° mirror rotation function
  • Low battery indicator and auto shut off
Applications

Commonly used in the visual inspection of aircraft engines, aero-derivative industrial gas turbines, steam turbines, diesel engines, and automotive and truck engines. They are also used in manufacturing of machined or cast parts to inspect critical interior surfaces for burrs, surface finish or complete through-holes. Other common uses include forensic applications in law enforcement and building inspection, and in gun-smithing for inspecting the interior bore of a firearm.

Fluke 360 Specifications

AC Current Range and Resolution 3mA: 0.001mA
30mA: 0.01mA
30A: 0.01A
60A: 0.1A
AC Current Accuracy 3mA to 30mA: 1% + 5
0 to 50A: 1% +5
50 to 60A: 5% + 5
Max Permissible Current 60A RMS
Display Digital display: 3200 counts
Bar-graph display: 32 segments, LCD
Measurement Cycle 2 times/second (Digital display), 12 times/second (Bar-graph display)
Range Switching Auto-range
Temperature Coefficient 0.05% of range / °C or less
(within the ranges of 0 to 18°C and 28 to 50°C for measurement of 0 to 50A)
Circuit Voltage ≤300V RMS
Safety Standard EN 61010-1, EN 61010-2-032. 300 V CAT II, Pollution Degree 2
Battery Life Approx. 90 hours (when continuously used)
Click here for complete specifications on the Fluke 360-KIT

This Fluke 360 Clamp Meter Kit Includes


Fluke 360 AC Leakage Current Clamp Meter

Fluke 360 AC Leakage Current Clamp Meter

Rugged and accurate solution for leakage current measurements. Features 3mA range and a broad range measurement from 1µA up to 60A.


REED R8500 9mm Video Inspection Camera, Recordable

REED R8500 9mm Video Inspection Camera, Recordable

9mm camera diameter and 2.5" color TFT LCD monitor. Saves high resolution images and records video.
