Designed for the multi-tasker, this single-channel thermometer measures, graphs, and records PRTs, thermocouples, and thermistors with one tool. Delivering high accuracy, wide measurement range, logging, and trending, all in a handheld device you can take anywhere.
Designed for the multi-tasker, this single-channel thermometer measures, graphs, and records PRTs, thermocouples, and thermistors with one tool. Delivering high accuracy, wide measurement range, logging, and trending, all in a handheld device you can take anywhere.
Using a technique called a current reversal, this reference thermometer eliminates thermal EMFs, for precision temperature measurements. Special precision resistors and a highly stable reference voltage source maintain this reference thermometer's accuracy virtually insensitive to environmental temperature. Additionally, it can endure rigorous testing in temperature extremes and under harsh conditions of vibration, allowing professionals to take them anywhere they need to go.
Features
INFO-CON connectors ensure correct temperature conversion
Inside the INFO-CON, a memory chip keeps calibration information for the attached probe. Simply plugging in the probe uploads the information to the readout, ensuring the correct temperature conversion for accurate, hassle-free measurements.
Probes may be locked by password to specific channels and readouts for security or for system calibration traceability. Plug any thermocouple with mini-thermocouple jacks into an optional universal thermocouple adapter for convenient measurement. Each thermocouple adapter or standard connector supports reference junction compensation (RJC) with its own internal precision thermistor.
Monitor trends in the lab or in the field
See trends graphically on the thermometer's 128 x 64 backlit LCD display. You can change the graph's resolution at the touch of a button. Now it's easy to see when the temperature is stable, without statistics or long delays, or monitor processes over time to verify correct operation.
Document on demand up to 25 readings and associated statistics for easy retrieval. You can view the data through the display or by uploading it to a PC via RS-232 connection and 9940 software, included free. To monitor and log more data over time, use a PC and optional LogWare II software.
RS-232-to-USB adapters are available for those who prefer USB connectors. Battery power lasts at least 20 hours on three AA batteries, or use the dc power adapter for extended periods of measurement. Power saving features can be enabled or disabled for longer battery life or greater convenience.
Applications
| Input Channels | 2 |
| Resolution | PRTs and thermistors: 0.001° Thermocouples: 0.01° |
| Logging | 25 readings with statistics15,000 time and date stamped |
| Sample Interval (Normal) | 1 second (simultaneous) |
| Typical Sample Interval (Fast Mode) | 0.3 seconds |
| Sensor Types | PRTs, RTDs, thermistors, and thermocouples |
| Thermocouple Types | C, E, J, K, L, M, N, T, U, B, R, S |
| Statistics | Maximum, minimum, average, standard deviation |
| Trending | Scale: ±18°F (10°C), ±1.8°F (1°C), ±0.18°F (0.1°C), ±0.018°F (0.01°C), 10 minutes of real-time data |
| Power Requirements | 3 x AA alkaline batteries, 12 V DC universal power supply |
| Computer Interface | RS-232, 9940 I/O ToolKit software included |
| Environmental Conditions for Best Accuracy | 55.4 to 91.4°F (13 to 33°C) |
| Millivolt Range and Accuracy | 10 to 75 mV, ± (0.005% + 5 µV) |
| Internal Reference Junction Compensation | ±0.36°F (±0.2°C) |
| Resistance Range and Accuracy | 0 to 400 Ω ± (0.004% + 0.002 Ω) 200 Ω to 50 kΩ ± (0.01% + 0.5 Ω) 50 to 500 kΩ ± (0.03 %) |
| Temperature Coefficient, Voltage | ±(0.001%/°C + 1 mV/°C) |
| Temperature Coefficient, Resistance | 0.0008%/°C + 0.0004 Ω (0 to 400 Ω) 0.002%/°C + 0.1 Ω (0 Ω to 50 kΩ) 0.06%/°C + 0.1 Ω (50 to 500 kΩ) |
| Excitation Current, Resistance | 1 mA (0 to 400 Ω) 10 µA (0 Ω to 50 kΩ) 2 µA (50 to 500 kΩ) |
| Dimensions | 3.75 x 7.9 x 1.86" (96 x 200 x 47 mm) |
| Weight | 1.45 lbs (0.65 kg) |
| Safety | EN61010-1:2001, CAN/CSA C22.2 No. 61010.1-04 |

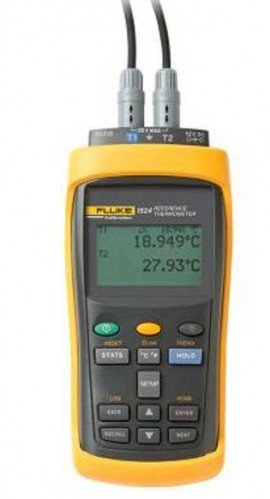

Click on a category to view a selection of compatible accessories with the Fluke 1524 Reference Thermometer, 2-channel.
