Fluke 1555 FC w/IR3000FC 10 kV Insulation Tester with IR3000 FC Connector

Model: FLUKE-1555 FC | Order No: 1555FC | UPC: 095969868891

Fluke 1555 FC w/IR3000FC 10 kV Insulation Tester with IR3000 FC Connector-


Downloads: datasheet manual

Fluke 1555 FC w/IR3000FC 10 kV Insulation Tester with IR3000 FC Connector

Model: FLUKE-1555 FC | Order No: 1555FC

The Fluke 1555C Tester together with the IR3000 FC connector and Fluke Connect App allow users to perform advanced insulation testing by wirelessly transfering test results from the tester to Fluke Connect which eliminates error-prone paperwork and saves your technicianÍs time.

The Fluke 1555C Tester together with the IR3000 FC connector and Fluke Connect App allow users to perform advanced insulation testing by wirelessly transfering test results from the tester to Fluke Connect which eliminates error-prone paperwork and saves your technicianÍs time.

Your Price $5399.99 USD
Availability 2 to 3 Weeks
Quantity

Add In-House Traceable Calibration to your FLUKE-1555 FC

Add In-House Traceable Calibration to your FLUKE-1555 FC


Recommended Accessories


Fluke FLUKE-1555 FC Offers

This insulation resistance tester offers digital insulation testing up to 10 kV, making it ideal for testing a wide range of high voltage equipment including switchgear, motors, generators and cables. It can conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV 600 V safety rating. With measurement storage and PC interface, it is the perfect tool for preventative or predictive maintenance programs designed to identify potential equipment failures before they occur.

Features

  • Test voltages to up 10 kV and save time by trending on the spot only with Fluke Connect™
  • CAT III 1000 V, CAT IV 600 V safety rating
  • Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
  • Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
  • Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
  • Long battery life gives the user over 750 tests between charges
  • Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
  • Guard system eliminates the effect of surface leakage current on high-resistance measurements
  • Large digital/analog LCD for easy viewing
  • Capacitance and leakage current measurement
  • Ramp function for breakdown testing
  • Resistance measurements up to 2 TΩ
  • Timer settings up to 99 minutes for timed tests
  • 3-year warranty

Benefits

When combined with the ir3000FC1550 Connector and Fluke Connect, it provides three unique benefits that increase work efficiency and safety:

  • Real-time trending – show a graph of current insulation test data on your phone, rather than trying to interpret a hard-to-read set of changing numbers on the tester itself. Makes it easy to see if your test values are shifting in the right direction. You no longer need to import values into a separate spreadsheet
  • Remote configuration and operation of your tester – take full control of your tester through your smartphone. Remote start and stop allows the user to move out of potentially hazardous zones before engaging tests and monitoring results
  • Simple, quick report creation using drag and drop tools – faster, more understandable and more accurate reporting for the maintenance manager or a customer contracting the test procedure

Applications

  • General purpose electrical maintenance
  • Preventive and predictive maintenance
  • Troubleshooting
6 Tips for effective insulation testing
1

Disconnect any electronic devices like motor drives, PLC’s, transmitters, etc. before performing insulation testing. Electronics can be damaged by applying higher than normal voltage.

2

The effect of temperature should be considered - it is recommended that tests be performed at a standard conductor temperature of 20 °C (68 °F) or that a temperature baseline is established while compensating future readings by using a DMM with a probe or an infrared thermometer.

3

Select a test voltage appropriate for the insulation being tested. The objective is to stress the insulation but not to over-stress it. When in doubt, use a lower test voltage. It’s usually appropriate to test insulation at twice the voltage it normally sees: for example 460 V to 600 V rated equipment is often tested at 1000 V.

4

When using an insulation tester, leave the leads connected when you stop the test. The insulation tester can discharge any residual test voltage.

5

Conductors that are close to each other have a normal capacitance. This will cause an insulation resistance reading to start low and increase steadily until it stabilizes. This type of increase is normal, but if the reading jumps violently down and up again this indicates arcing.

6

Although the current is tightly limited, an insulation tester can generate sparks and minor but painful burns. The unexpected surprise can cause an operator to jerk away. As always, work away from live systems and use safe work practices when working overhead.

Insulation Resistance Testing Solutions

Fluke FLUKE-1555 FC Specifications

Insulation Resistance
Test voltage (DC) Range (DC) Accuracy (± reading)
250 V < 250 kΩ
250 kΩ to 5 GΩ
5 GΩ to 50 GΩ
> 50 GΩ
Unspecified
5%
20%
Unspecified
500 V < 500 kΩ
500 kΩ to 10 GΩ
10 GΩ to 100 GΩ
> 100 GΩ
Unspecified
5%
20%
Unspecified
1000 V < 1 MΩ
1 MΩ to 20 GΩ
20 GΩ to 200 GΩ
> 200 GΩ
Unspecified
5%
20%
Unspecified
2500 V < 2.5 MΩ
2.5 MΩ to 50 GΩ
50 GΩ to 500 GΩ
> 500 GΩ
Unspecified
5%
20%
Unspecified
5000 V < 5 MΩ
5 MΩ to 100 GΩ
100 GΩ to 1 TΩ
> 1 TΩ
Unspecified
5%
20%
Unspecified
10000 V < 10 MΩ
10 MΩ to 200 GΩ
10 GΩ to 2 TΩ
> 2 TΩ
Unspecified
5%
20%
Unspecified
Leakage Current Measurement
Range 1 nA to 2 mA
Accuracy ± (5 % + 2 nA)
Capacitance Measurement
Range 0.01 uF to 15.00°F
Accuracy ± (15 % rdg + 0.03°F)
Timer
Range 0 to 99 minutes
Accuracy Resolution Setting: 1 minute Indication: 1 second
Live Circuit Warning
Range Warning Range 30 V to 660 V AC/DC, 50/60 Hz
Accuracy Voltage Accuracy ± (15 % + 2 V)
Additional
Bar Graph Range 0 to 1 TΩ
Insulation Test Voltage Accuracy -0 %, +10 % at 1 mA load current
Induced AC Mains Current Rejection 2 mA maximum
Charging Rate for Capacitive Load 5 seconds per °F
Discharge Rate for Capacitive Load 1.5 s/°F
Click here for complete specifications on the Fluke FLUKE-1555 FC

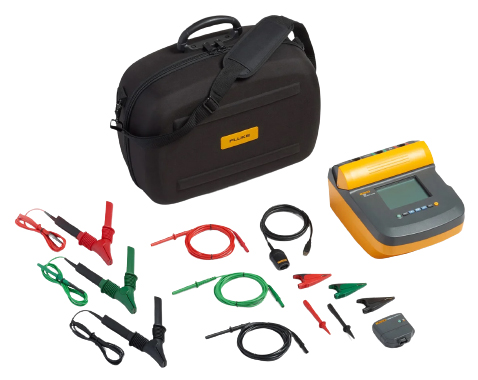

What's included with the Fluke FLUKE-1555 FC

  • Insulation Resistance Tester
  • IR3000FC1550 Connector
  • Test Cables with Alligator Clips
  • Infrared adapter with interface cable
  • FlukeView® Forms Basic CD-ROM
  • AC Power Cord
  • English Manual
  • Users Manual on CD-ROM
  • Quick Reference Card
  • Software License Agreement
  • Registration Card
  • FlukeView® Forms Installation Guide
  • USB-IR Cable Installation Guide
  • Soft Carrying Case

Fluke 1587 FC Insulation Multimeter Fluke 1577 Insulation Multimeter Fluke 1503 Insulation Resistance Meter Fluke 1507 Insulation Resistance Tester Fluke 1550C Insulation Resistance Tester Fluke 1555 Insulation Resistance Tester
Two in one tools Stand-alone tools
Insulation test features 1587 FC 1577 1503 1507 1550C 1555
Test voltages 50 V, 100 V, 250 V, 500 V, 1000 V 500 V, 1000 V 500 V, 1000 V 50 V, 100 V, 250 V, 500 V, 1000 V 250 V to 5000 V 250 V to 10,000 V
Insulation resistance range 0.01 MΩ to 2 GΩ 0.01 MΩ to 600 GΩ 0.01 MΩ to 2000 GΩ 0.01 MΩ to 10 GΩ 250 kΩ to 1 TΩ 250 kΩ to 2 TΩ
PI/DAR
Auto discharge
Timed ramp test (Breakdown)
Pass/fail comparison
Est. # of IRT tests 1000 1000 2000 2000 Various Various
Voltage > 30 V warning
Memory With Fluke Connect App
Remote test probe
Lo ohms/earth-bond continuity 200 mA source (10 mΩ resolution) 200 mA source (10 mΩ resolution)
Display Digital LCD Digital LCD Digital LCD Digital LCD Digital LCD/ analog display Digital LCD/ analog display
Hold/lock
Multimeter features
AC/DC volts

Note: Not all product features and specifications are listed in this table. For more complete information, see individual product data sheets.

Footnotes:
1. Function useful for checking connections and motor windings. Also useful for users who are required to perform earth-bond continuity measurements during installation testing.
2. Filter for variable-speed motor drive measurements.

Current
Resistance
Continuity beeper
Temperature (contact)
Lo-pass filter2
Capacitance
Diode test
Frequency
MIN/MAX
Other features
Backlight
Software Fluke Connect compatible FlukeView® Forms Basic Fluke View® Forms Basic
Battery 4 AA (NEDA 15A or IEC LR6) 4 AA (NEDA 15A or IEC LR6) 4 AA (NEDA 15A or IEC LR6) 4 AA (NEDA 15A or IEC LR6) Rechargeable Rechargeable
Find out more about insulation testing
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements

Click on a category to view a selection of compatible accessories with the Fluke 1555 FC w/IR3000FC 10 kV Insulation Tester with IR3000 FC Connector.

Fluke IR3000FC 1550 FC Connector IR3000FC 1550
Enables wireless transfer of data from Insulation Tester to Fluke Connect Mobile App.




Customer Reviews for the Fluke FLUKE-1555 FC

Ask a question about Fluke 1555 FC w/IR3000FC 10 kV Insulation Tester with IR3000 FC Connector

Fluke FLUKE-1555 FC Offers

This insulation resistance tester offers digital insulation testing up to 10 kV, making it ideal for testing a wide range of high voltage equipment including switchgear, motors, generators and cables. It can conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV 600 V safety rating. With measurement storage and PC interface, it is the perfect tool for preventative or predictive maintenance programs designed to identify potential equipment failures before they occur.

Features

  • Test voltages to up 10 kV and save time by trending on the spot only with Fluke Connect™
  • CAT III 1000 V, CAT IV 600 V safety rating
  • Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
  • Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
  • Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
  • Long battery life gives the user over 750 tests between charges
  • Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
  • Guard system eliminates the effect of surface leakage current on high-resistance measurements
  • Large digital/analog LCD for easy viewing
  • Capacitance and leakage current measurement
  • Ramp function for breakdown testing
  • Resistance measurements up to 2 TΩ
  • Timer settings up to 99 minutes for timed tests
  • 3-year warranty

Benefits

When combined with the ir3000FC1550 Connector and Fluke Connect, it provides three unique benefits that increase work efficiency and safety:

  • Real-time trending – show a graph of current insulation test data on your phone, rather than trying to interpret a hard-to-read set of changing numbers on the tester itself. Makes it easy to see if your test values are shifting in the right direction. You no longer need to import values into a separate spreadsheet
  • Remote configuration and operation of your tester – take full control of your tester through your smartphone. Remote start and stop allows the user to move out of potentially hazardous zones before engaging tests and monitoring results
  • Simple, quick report creation using drag and drop tools – faster, more understandable and more accurate reporting for the maintenance manager or a customer contracting the test procedure

Applications

  • General purpose electrical maintenance
  • Preventive and predictive maintenance
  • Troubleshooting
6 Tips for effective insulation testing
1

Disconnect any electronic devices like motor drives, PLC’s, transmitters, etc. before performing insulation testing. Electronics can be damaged by applying higher than normal voltage.

2

The effect of temperature should be considered - it is recommended that tests be performed at a standard conductor temperature of 20 °C (68 °F) or that a temperature baseline is established while compensating future readings by using a DMM with a probe or an infrared thermometer.

3

Select a test voltage appropriate for the insulation being tested. The objective is to stress the insulation but not to over-stress it. When in doubt, use a lower test voltage. It’s usually appropriate to test insulation at twice the voltage it normally sees: for example 460 V to 600 V rated equipment is often tested at 1000 V.

4

When using an insulation tester, leave the leads connected when you stop the test. The insulation tester can discharge any residual test voltage.

5

Conductors that are close to each other have a normal capacitance. This will cause an insulation resistance reading to start low and increase steadily until it stabilizes. This type of increase is normal, but if the reading jumps violently down and up again this indicates arcing.

6

Although the current is tightly limited, an insulation tester can generate sparks and minor but painful burns. The unexpected surprise can cause an operator to jerk away. As always, work away from live systems and use safe work practices when working overhead.

Insulation Resistance Testing Solutions

Fluke FLUKE-1555 FC Specifications

Insulation Resistance
Test voltage (DC) Range (DC) Accuracy (± reading)
250 V < 250 kΩ
250 kΩ to 5 GΩ
5 GΩ to 50 GΩ
> 50 GΩ
Unspecified
5%
20%
Unspecified
500 V < 500 kΩ
500 kΩ to 10 GΩ
10 GΩ to 100 GΩ
> 100 GΩ
Unspecified
5%
20%
Unspecified
1000 V < 1 MΩ
1 MΩ to 20 GΩ
20 GΩ to 200 GΩ
> 200 GΩ
Unspecified
5%
20%
Unspecified
2500 V < 2.5 MΩ
2.5 MΩ to 50 GΩ
50 GΩ to 500 GΩ
> 500 GΩ
Unspecified
5%
20%
Unspecified
5000 V < 5 MΩ
5 MΩ to 100 GΩ
100 GΩ to 1 TΩ
> 1 TΩ
Unspecified
5%
20%
Unspecified
10000 V < 10 MΩ
10 MΩ to 200 GΩ
10 GΩ to 2 TΩ
> 2 TΩ
Unspecified
5%
20%
Unspecified
Leakage Current Measurement
Range 1 nA to 2 mA
Accuracy ± (5 % + 2 nA)
Capacitance Measurement
Range 0.01 uF to 15.00°F
Accuracy ± (15 % rdg + 0.03°F)
Timer
Range 0 to 99 minutes
Accuracy Resolution Setting: 1 minute Indication: 1 second
Live Circuit Warning
Range Warning Range 30 V to 660 V AC/DC, 50/60 Hz
Accuracy Voltage Accuracy ± (15 % + 2 V)
Additional
Bar Graph Range 0 to 1 TΩ
Insulation Test Voltage Accuracy -0 %, +10 % at 1 mA load current
Induced AC Mains Current Rejection 2 mA maximum
Charging Rate for Capacitive Load 5 seconds per °F
Discharge Rate for Capacitive Load 1.5 s/°F
Click here for complete specifications on the Fluke FLUKE-1555 FC

What's included with the Fluke FLUKE-1555 FC

  • Insulation Resistance Tester
  • IR3000FC1550 Connector
  • Test Cables with Alligator Clips
  • Infrared adapter with interface cable
  • FlukeView® Forms Basic CD-ROM
  • AC Power Cord
  • English Manual
  • Users Manual on CD-ROM
  • Quick Reference Card
  • Software License Agreement
  • Registration Card
  • FlukeView® Forms Installation Guide
  • USB-IR Cable Installation Guide
  • Soft Carrying Case
