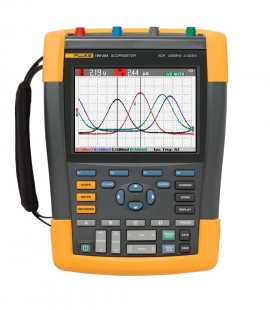

Fluke 190-104/AM ScopeMeter® Oscilloscope, 4 channel, 100 MHz

Model: 190-104/AM | UPC: 095969580076

Fluke 190-104/AM ScopeMeter® Oscilloscope, 4 channel, 100 MHz-


Downloads: datasheet manual

Fluke 190-104/AM ScopeMeter® Oscilloscope, 4 channel, 100 MHz

Model: 190-104/AM

Performs in harsh, dirty, and hazardous industrial conditions, users can test everything from micro-electronics to power electronics applications. A combination of the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Additionally, it features a 100 MHz bandwidth model.

Performs in harsh, dirty, and hazardous industrial conditions, users can test everything from micro-electronics to power electronics applications. A combination of the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Additionally, it features a 100 MHz bandwidth model.

Your Price $4499.99 USD
Availability 1 to 2 Weeks
Quantity

Add In-House Traceable Calibration to your 190-104/AM

Add In-House Traceable Calibration to your 190-104/AM


Fluke 190-104/AM Offers

Simplify electrical signal analysis and diagnose equipment failures in the field with this portable oscilloscope. It offers the same performance as a bench scope with feature–rich capabilities to tackle just about any troubleshooting task. Designed for plant maintenance engineers and technicians, this series of ScopeMeters® performs in harsh and dirty industrial conditions to test everything from microelectronics to power electronics applications. This portable oscilloscope features a CAT III 1000V/CAT IV 600V safety rating and is IP-51 rated to withstand harsh environments. Get unprecedented ease-of-use with Connect-and-View™ triggering to capture and analyze waveforms hands free.

Features

  • Two electrically isolated inputs
  • Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
  • Dedicated 5000 Count digital multimeter in 2 Channel models
  • Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering
  • ScopeRecord roll mode, capture waveform sample data for up to 48 hours
  • TrendPlot, trend measurement readings for up to 22 days
  • Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
  • IP-51 rated for dust and drip proof to withstand harsh environments
  • Isolated USB ports for memory devices and PC connectivity
  • Li-Ion battery for extended operating timespan
  • Easy-access battery door to make it easy to swap batteries
  • A handy slot to tether and lock down the oscilloscope while unattended using a standard Kensington® lock
  • CAT III 1000 V / CAT IV 600 V safety rated

Applications

  • Microelectronics
  • Power electronics

Gain four times the diagnostic power plus CAT IV safety rating

This scope is double-insulated two -channel floating oscilloscopes safety rated for measurements in CAT III 1000V/CAT IV 600V environments.

Three-dimensional testing for industrial systems

Inspect input signals, output feedback loops or safety interlocks simultaneously to find a range of problems including:

  • Circuit voltage/current overloading
  • Signal timing measurements and synchronization issues
  • Attenuation/input impedance mismatch
  • Signal fluctuation/drift

Three-phase testing for diagnosing VSD, power inverters, and converters

  • Test for harmonics, transients and loads at the three-phase power input
  • Troubleshoot dc to ac converters for faulty IGBT gates or filter circuits
  • Test PWM output for reflections and transients or voltage unbalance

Safely measure from mV to kV

Standard probes that cover a wide application range from mV to kV prepare you for anything from micro-electronics to heavy duty medium voltage electrical applications. Independent isolated inputs eliminate the risk of accidental ground short circuits by allowing you to make measurements in mixed circuits with separate ground references.

Take on the harshest conditions with the only IP-51-rated Scope on the market

Rugged and shock-proof, all ScopeMeter® portable oscilloscopes are built for harsh environments. Their sealed cases protect them from dust, water vapor, drips, humidity and airborne pollutants, ensuring reliable accurate performance every time you need them.

Built in multimeter to quickly and conveniently perform precise measurements

Built-in digital multimeter 2 channel models with isolated dual input scope and dedicated digital multimeter. Conveniently switch from waveform analysis to precise multimeter measurements using the built in 5000 count digital multimeter. Measurement functions include VDC, VAC, VAC + DC, resistance, continuity and diode test. Measure current and temperature using suitable shunt, probe or adapter with wide range of scaling factors.

Work a Full Shift on a Single Charge

New high-performance batteries take advantage of Li-ion technology to keep you going strong for up to four hours. And with the easy-access battery door you can make battery swaps fast.

Capture and share waveforms easily with USB connectivity

Two USB ports, electrically isolated from measurement input circuits offer you easy USB connectivity to a PC or USB memory devices. Store unlimited waveform, screen captures or instrument setups to a USB memory device. Connect to a PC USB interface to transfer and archive critical measurement data using FlukeView software for windows.

See a stable display instantly with Connect-and-View™ triggering

Connect-and-View™ automatically sets up correct triggering by recognizing signal patterns. Without touching a button, you get a stable, reliable, and repeatable display of virtually any signal including motor drive and control signals. Expedites measuring several test-points in rapid succession.

Record up to 48 hours of high-resolution waveforms with ScopeRecord™

ScopeRecord memory stores up to 30,000 data points per channel, capturing intermittents and fast glitches. (Two sets of multiple-channel recordings can be stored for later analysis.)

  • Stores events like motion profiles, UPS, power supply, and motor start-ups
  • With the Stop-on-Trigger mode, this unit automatically recognizes a power failure and stores the waveform data preceding it
  • With the waveform zoom (up to 100x) you can look at the smallest details, like individual power cycles

Record up to 22 days with TrendPlot™ paperless recorder to find intermittent faults

Intermittent faults can be caused by bad connections, dust, dirt, corrosion, or simply broken wiring or connectors. Line outages, sags, or starting and stopping a motor can also cause a machine to stop. The TrendPlot function helps find those faults by:

  • Plotting minimum and maximum peak values and average over time up to 22 days
  • Plotting any combination of voltages, amps, temperature, frequency and phase for all four inputs, all with time and date stamp to pinpoint faults

Fluke 190-104/AM Specifications

Functions Specifications
Bandwidth 100 MHz
Number of Channels 100 MHz: 4 channels
Real-Time Sample Rate 1.25 GS/s
Inputs 4 scope plus DMM input
Independently Floating Isolated Inputs Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
Timebase Range 5 ns - 2 min/div
Input Sensitivity 2 mV - 100 V/div
Trigger Types Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
Trigger Source Any scope input channel
Glitch Capture 8 ns
Scope Measurements Cursor: 7
Automatic: 30
Maximum Record Length ScopeRecord mode: 30,000 pts
Scope mode: 10,000 pts per input
Persistence Digital persistence giving analog oscilloscope-like waveform decay
Waveform Compare Waveform reference with automatic Pass/Fail testing
Environmental Specifications
Operating Temperature 32 to 104°F (0 to 40°C), including batteries
32 to 122°F (0 to 50°C), excluding batteries
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Altitude Up to 6666' (2000 m) for CAT IV 600 V, CAT III 1000 V
Up to 10,000' (3000 m) for CAT III 600 V, CAT II 1000 V
Mechanical and General Specifications
Li-Ion Battery BP291 4800 mAh battery up to 7 Hours included standard
Dimensions 10.6 x 7.5 x 2.75" (270 x 190 x 70 mm)
Weight 4.85 lbs (2.2 kg)
Safety Specifications
Electrical Safety 1,000 V CAT III/600 V CAT IV (EN61010-1)
Click here for complete specifications on the Fluke 190-104/AM

What's included with the Fluke 190-104/AM

  • ScopeMeter™ Oscilloscope
  • Test Lead Set
  • Handstrap
  • Hangstrap
  • USB Interface Cable
  • Battery Charger/Mains Adapter
  • Li-ion Battery
  • Multi-Language User Manuals on CD-Rom
  • Three-Years on Main instrument
  • One-Year on Accessories

See More, Fix More with the New Four-Channel CAT IV Rated Fluke ScopeMeter 190 Series II

The new Fluke ScopeMeter 190-104 (100MHz) and 190-204 (200MHz) combine the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Designed for plant maintenance engineers and technicians, these tough ScopeMeters go into harsh, dirty, and hazardous industrial conditions to test everything from microelectronics to power electronics applications.

The new 190 Series II includes all the standard ScopeMeter features including TrendPlot™, Connect-and-View™ triggering, and ScopeRecord™ and much more:

  • Four electrically isolated inputs
  • CAT III 1000V / CAT IV 600V safety rated
  • Choose from 100MHz or 200MHz bandwidth models
  • Single shot, pulse width, and video triggering
  • Fast sampling rate, up to 2.5GS/s with up to 400 ps resolution
  • Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
  • IP-51 rated for dust and drip proof to withstand harsh environments
  • Isolated USB ports for memory devices and PC connectivity
  • 7-hour battery life, standard with new Li-ion technology
  • Easy-access battery door to make it easy to swap batteries
  • A handy slot to tether and lock down the oscilloscope while unattended

Gain Four Times the Diagnostic Power Plus CAT IV Safety Rating

The new Fluke ScopeMeter 190 Series II portable scopes are double-insulated four-channel floating oscilloscopes safety rated for measurements in CAT III 1000V/CAT IV 600V environments.

oscilloscope

Three-dimensional testing for industrial systems

Visual:
Inspect input signals, output feedback loops or safety interlocks simultaneously to find a range of problems including:
  • Circuit voltage/current overloading
  • Signal timing measurements and synchronization issues
  • Attenuation/input impedance mismatch
  • Signal fluctuation/drift

oscilloscope

Three-phase testing for diagnosing VSD, power inverters, and converters

Visual:
Take advantage of four channels to test variable frequency drive and inverter power electronics technology used in wind energy and transportation applications:
  • Test for harmonics, transients and loads in three-phase power input
  • Troubleshoot dc to ac converters for faulty IGBT gates.
  • Test PWM output for reflections and transients

Safely measure from mV to kV

Standard probes that cover a wide application range from mV to kV prepare you for anything from micro-electronics to heavy duty medium voltage electrical applications. Independent isolated inputs eliminate the risk of accidental ground short circuits by allowing you to make measurements in mixed circuits with separate ground references.

oscilloscopeTake on the Harshest Conditions with the only IP-51-rated Scope on the Market

Rugged and shock-proof, all ScopeMeter portable oscilloscopes are built for harsh environments. Their sealed cases protect them from dust, water vapor, drips, humidity and airborne pollutants, ensuring reliable accurate performance every time you need them.

Work a Full Shift on a Single Charge

New high-performance batteries take advantage of Li-ion technology to keep you going strong for seven hours. And with the easy-access battery door you can make battery swaps fast.

scopemeter usb

Capture and Share Waveforms Easily with New USB connectivity


Two USP ports, electrically isolated from measurement input circuits offer you easy USB connectivity to a PC or USB memory devices. Store unlimited waveform, screen captures or instrument steups to a USB memory device. Connect to a PC USB interface to transfer and archive critical measurement data using FlukeView software for windows.



oscilloscope

See a Stable Display Instantly with Connect-and-View™ Triggering

Connect-and-View™ automatically sets up correct triggering by recognizing signal patterns. Without touching a button, you get a stable, reliable, and repeatable display of virtually any signal including motor drive and control signals. Expedites measuring several test-points in rapid succession.






oscilloscope

Record Up to 48 Hours of High-Resolution Waveforms with ScopeRecord™

ScopeRecord memory stores up to 27,000 data points per channel, capturing intermittents and fast glitches. (Two sets of multiple-channel recordings can be stored for later analysis.)
  • Stores events like motion profiles, UPS, power supply, and motor start-ups
  • With the Stop-on-Trigger mode, the ScopeMeter automatically recognizes a power failure and stores the waveform data preceding it
  • With the waveform zoom (up to 100x) you can look at the smallest details, like individual power cycles

oscilloscope

Record up to 16 days with TrendPlot™ paperless recorder to find intermittent faults

Intermittent faults can be caused by bad connections, dust, dirt, corrosion, or simply broken wiring or connectors. Line outages, sags, or starting and stopping a motor can also cause a machine to stop. The TrendPlot function in the Fluke ScopeMeter helps find those faults by:
  • Plotting minimum and maximum peak values and average over time up to 16 days
  • Plotting any combination of voltages, amps, temperature, frequency and phase for all four inputs, all with time and date stamp to pinpoint faults

FlukeView ScopeMeter software adds PC power to your Fluke ScopeMeter (Includes Demo Version)


FlukeView ScopeMeter SoftwareFlukeView ScopeMeter software helps you get more out of your ScopeMeter by:

Documenting: Transfer screens, waveforms, and measurement data from the ScopeMeter to your PC for printing, or to import data to other programs.

Archiving: Store and retrieve waveforms with text annotations and create your own library for easy reference and comparison.

Analysis: Gather valuable measurement data and enable cursor measurements to reveal relationships and conditions. Extended recording of up to four user-selected measurements help you monitor and analyze slow moving signals and related events. Upload waveforms to the PC and use cursors for detailed measurements. Perform waveform analysis, including analyzing harmonics.
  • For ScopeMeter 190 & 120 Series
  • Windows 95/98/Me/NT4.0/2000/XP
  • Requires one free RS-232 port (COM port)
  • Requires optional PM9080 RS-232 Adapter/Cable

Fluke ScopeMeter 190 Series II Portable Oscilloscopes Demo Circuit: Overview


This video showcases the main features and functions of these portable oscilloscopes. Additionally, the user can perform timing or amplitude related measurements on three phases or three-axis control systems, or compare and contrast multiple test points in a circuit under test.

How To Use Instant Replay On a Fluke 190 ScopeMeter Oscilloscope


In this video, the user learns how to capture random events using triggering and show the results in instant replay. The scope meter oscilloscope can quickly and easily capture disturbances to make sense of your signals and eliminate the tedium of troubleshooting.

How To Create and Recall Waveforms Using the Fluke 190 Series Portable Oscilloscope


This video will serve as a step by step tutorial on how to set up waveforms with the oscilloscope, and how to return settings to factory default. Additionally, this instrument offers the same performance as a bench scope with feature-rich capabilities to tackle just about any troubleshooting task.

How to Synchronize a Fluke 190 Series Portable Oscilloscope with Basic Triggers


This video breaks down the process of synchronizing your portable oscilloscope with triggers. The TRIGGER function allows the user to synchronize their scopemeter with the signal the oscilloscope is connected to and display waveforms on your instrument.

How To Startup and Reset Settings on the Fluke ScopeMeter Portable Oscilloscope


This video is a walkthrough on how to power up and perform a reset with the scopemeter. Ideal for plant maintenance engineers and technicians, this instrument goes into harsh and dirty industrial conditions to test everything from microelectronics to power electronics applications.

How To Transfer Data From a Fluke ScopeMeter Portable Oscilloscope onto a USB Drive


This video is a tutorial on how to transfer data from a fluke scope meter directly onto a USB drive. The oscilloscope comes with an isolated USB host port for direct data storage from a USB to a computer.

How To Use the TrendPlot® Function on the Fluke ScopeMeter Portable Oscilloscope


In this video, the user learns how to set up the TrendPlot function to find intermittent faults. The function plots minimum and maximum peak values for up to 22 days, in any combination of voltages, amps, temperature, frequency, and phase for all four inputs.

Click on a category to view a selection of compatible accessories with the Fluke 190-104/AM ScopeMeter® Oscilloscope, 4 channel, 100 MHz.

Fluke TL175 TwistGuard Test Leads Set TL175
By simply twisting the test lead the user can change the exposed probe tip length from 19 mm to 4 mm (0.75 inch to 0.16 inch).




Fluke SCC290 ScopeMeter Software & Carrying Case Kit SCC290
Kit comes with FlukeView ScopeMeter software and the Fluke C290 carrying case.




Fluke HH290 Hanging Hook HH290
Hanging Hook for ScopeMeter 190-Series II.




FE AS400 AS400
Probe Accessory set for VPS400 Probes.




Fluke RS400 Probe Accessory Replacement Kit for the VPS400 Series RS400
Compatible with the FLuke VPS410B, VPS410G, VPS410R, and the VPS410V.





Fluke VPS510-B ScopeMeter Compact Probe Set, 500MHZ, 10:1, Blue VPS510-B
Double insulated, designed for safety, wide bandwidth probe-set for ScopeMeter 190 Series II. Compact size, targeting electronics applications.




Fluke VPS510-G ScopeMeter Compact Probe Set, 500 MHZ, 10:1 VPS510-G
Double insulated, designed for safety, wide bandwidth probe-set for ScopeMeter 190 Series II. Compact size, targeting electronics applications.




Fluke VPS510-R ScopeMeter Compact Probe Set, 500MHZ, 10:1, Red VPS510-R
Double insulated, designed for safety, wide bandwidth probe-set for the ScopeMeter 190 Series II. Compact size, targeting electronics applications.




Fluke VPS510-V ScopeMeter Compact Probe Set, 500MHZ, 10:1, Green VPS510-V
Double insulated,designed for safety, wide bandwidth probe-set for the ScopeMeter 190 Series II. Compact size, targeting electronics applications.




Fluke SW90W FlukeView ScopeMeter Software SW90W
Documents, archives, and analyzes slow moving signals and related events. For use with 120B Series ScopeMeters.




Fluke C290 Hard Shell Protective Carrying Case for the Fluke 190-II Series C290
Includes pockets to store probes and leads.




Fluke BP290 Li-Ion Battery Pack BP290
For Fluke 43X power quality analyzers and 190-series ScopeMeters.




Fluke SCC298 Automotive Troubleshooting Kit for 190 Series II ScopeMeters SCC298
Using the 190 Series in dedicated applications like automotive electronics troubleshooting often requires special accessories like adapters, connectors and test leads to establish the measurement connection to the circuitry under test. The Fluke SCC198 kit provides a host of accessories that allow you to easily and quickly make measurements on automotive electronic systems, using a 190 Series ScopeMeter.




Fluke BP291 Double Capacity Li-Ion Battery Pack BP291
For Fluke 43X power quality analyzers and 190-series ScopeMeters.




Fluke EBC290 External Battery Charger EBC290
External battery charger for Li-ion batteries for 190B and 120B Series ScopeMeters and power quality analyzers.




Customer Reviews for the Fluke 190-104/AM

Ask a question about Fluke 190-104/AM ScopeMeter® Oscilloscope, 4 channel, 100 MHz

Fluke 190-104/AM Offers

Simplify electrical signal analysis and diagnose equipment failures in the field with this portable oscilloscope. It offers the same performance as a bench scope with feature–rich capabilities to tackle just about any troubleshooting task. Designed for plant maintenance engineers and technicians, this series of ScopeMeters® performs in harsh and dirty industrial conditions to test everything from microelectronics to power electronics applications. This portable oscilloscope features a CAT III 1000V/CAT IV 600V safety rating and is IP-51 rated to withstand harsh environments. Get unprecedented ease-of-use with Connect-and-View™ triggering to capture and analyze waveforms hands free.

Features

  • Two electrically isolated inputs
  • Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
  • Dedicated 5000 Count digital multimeter in 2 Channel models
  • Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering
  • ScopeRecord roll mode, capture waveform sample data for up to 48 hours
  • TrendPlot, trend measurement readings for up to 22 days
  • Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
  • IP-51 rated for dust and drip proof to withstand harsh environments
  • Isolated USB ports for memory devices and PC connectivity
  • Li-Ion battery for extended operating timespan
  • Easy-access battery door to make it easy to swap batteries
  • A handy slot to tether and lock down the oscilloscope while unattended using a standard Kensington® lock
  • CAT III 1000 V / CAT IV 600 V safety rated

Applications

  • Microelectronics
  • Power electronics

Gain four times the diagnostic power plus CAT IV safety rating

This scope is double-insulated two -channel floating oscilloscopes safety rated for measurements in CAT III 1000V/CAT IV 600V environments.

Three-dimensional testing for industrial systems

Inspect input signals, output feedback loops or safety interlocks simultaneously to find a range of problems including:

  • Circuit voltage/current overloading
  • Signal timing measurements and synchronization issues
  • Attenuation/input impedance mismatch
  • Signal fluctuation/drift

Three-phase testing for diagnosing VSD, power inverters, and converters

  • Test for harmonics, transients and loads at the three-phase power input
  • Troubleshoot dc to ac converters for faulty IGBT gates or filter circuits
  • Test PWM output for reflections and transients or voltage unbalance

Safely measure from mV to kV

Standard probes that cover a wide application range from mV to kV prepare you for anything from micro-electronics to heavy duty medium voltage electrical applications. Independent isolated inputs eliminate the risk of accidental ground short circuits by allowing you to make measurements in mixed circuits with separate ground references.

Take on the harshest conditions with the only IP-51-rated Scope on the market

Rugged and shock-proof, all ScopeMeter® portable oscilloscopes are built for harsh environments. Their sealed cases protect them from dust, water vapor, drips, humidity and airborne pollutants, ensuring reliable accurate performance every time you need them.

Built in multimeter to quickly and conveniently perform precise measurements

Built-in digital multimeter 2 channel models with isolated dual input scope and dedicated digital multimeter. Conveniently switch from waveform analysis to precise multimeter measurements using the built in 5000 count digital multimeter. Measurement functions include VDC, VAC, VAC + DC, resistance, continuity and diode test. Measure current and temperature using suitable shunt, probe or adapter with wide range of scaling factors.

Work a Full Shift on a Single Charge

New high-performance batteries take advantage of Li-ion technology to keep you going strong for up to four hours. And with the easy-access battery door you can make battery swaps fast.

Capture and share waveforms easily with USB connectivity

Two USB ports, electrically isolated from measurement input circuits offer you easy USB connectivity to a PC or USB memory devices. Store unlimited waveform, screen captures or instrument setups to a USB memory device. Connect to a PC USB interface to transfer and archive critical measurement data using FlukeView software for windows.

See a stable display instantly with Connect-and-View™ triggering

Connect-and-View™ automatically sets up correct triggering by recognizing signal patterns. Without touching a button, you get a stable, reliable, and repeatable display of virtually any signal including motor drive and control signals. Expedites measuring several test-points in rapid succession.

Record up to 48 hours of high-resolution waveforms with ScopeRecord™

ScopeRecord memory stores up to 30,000 data points per channel, capturing intermittents and fast glitches. (Two sets of multiple-channel recordings can be stored for later analysis.)

  • Stores events like motion profiles, UPS, power supply, and motor start-ups
  • With the Stop-on-Trigger mode, this unit automatically recognizes a power failure and stores the waveform data preceding it
  • With the waveform zoom (up to 100x) you can look at the smallest details, like individual power cycles

Record up to 22 days with TrendPlot™ paperless recorder to find intermittent faults

Intermittent faults can be caused by bad connections, dust, dirt, corrosion, or simply broken wiring or connectors. Line outages, sags, or starting and stopping a motor can also cause a machine to stop. The TrendPlot function helps find those faults by:

  • Plotting minimum and maximum peak values and average over time up to 22 days
  • Plotting any combination of voltages, amps, temperature, frequency and phase for all four inputs, all with time and date stamp to pinpoint faults

Fluke 190-104/AM Specifications

Functions Specifications
Bandwidth 100 MHz
Number of Channels 100 MHz: 4 channels
Real-Time Sample Rate 1.25 GS/s
Inputs 4 scope plus DMM input
Independently Floating Isolated Inputs Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
Timebase Range 5 ns - 2 min/div
Input Sensitivity 2 mV - 100 V/div
Trigger Types Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
Trigger Source Any scope input channel
Glitch Capture 8 ns
Scope Measurements Cursor: 7
Automatic: 30
Maximum Record Length ScopeRecord mode: 30,000 pts
Scope mode: 10,000 pts per input
Persistence Digital persistence giving analog oscilloscope-like waveform decay
Waveform Compare Waveform reference with automatic Pass/Fail testing
Environmental Specifications
Operating Temperature 32 to 104°F (0 to 40°C), including batteries
32 to 122°F (0 to 50°C), excluding batteries
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Altitude Up to 6666' (2000 m) for CAT IV 600 V, CAT III 1000 V
Up to 10,000' (3000 m) for CAT III 600 V, CAT II 1000 V
Mechanical and General Specifications
Li-Ion Battery BP291 4800 mAh battery up to 7 Hours included standard
Dimensions 10.6 x 7.5 x 2.75" (270 x 190 x 70 mm)
Weight 4.85 lbs (2.2 kg)
Safety Specifications
Electrical Safety 1,000 V CAT III/600 V CAT IV (EN61010-1)
Click here for complete specifications on the Fluke 190-104/AM

What's included with the Fluke 190-104/AM

  • ScopeMeter™ Oscilloscope
  • Test Lead Set
  • Handstrap
  • Hangstrap
  • USB Interface Cable
  • Battery Charger/Mains Adapter
  • Li-ion Battery
  • Multi-Language User Manuals on CD-Rom
  • Three-Years on Main instrument
  • One-Year on Accessories

See More, Fix More with the New Four-Channel CAT IV Rated Fluke ScopeMeter 190 Series II

The new Fluke ScopeMeter 190-104 (100MHz) and 190-204 (200MHz) combine the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Designed for plant maintenance engineers and technicians, these tough ScopeMeters go into harsh, dirty, and hazardous industrial conditions to test everything from microelectronics to power electronics applications.

The new 190 Series II includes all the standard ScopeMeter features including TrendPlot™, Connect-and-View™ triggering, and ScopeRecord™ and much more:

  • Four electrically isolated inputs
  • CAT III 1000V / CAT IV 600V safety rated
  • Choose from 100MHz or 200MHz bandwidth models
  • Single shot, pulse width, and video triggering
  • Fast sampling rate, up to 2.5GS/s with up to 400 ps resolution
  • Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
  • IP-51 rated for dust and drip proof to withstand harsh environments
  • Isolated USB ports for memory devices and PC connectivity
  • 7-hour battery life, standard with new Li-ion technology
  • Easy-access battery door to make it easy to swap batteries
  • A handy slot to tether and lock down the oscilloscope while unattended

Gain Four Times the Diagnostic Power Plus CAT IV Safety Rating

The new Fluke ScopeMeter 190 Series II portable scopes are double-insulated four-channel floating oscilloscopes safety rated for measurements in CAT III 1000V/CAT IV 600V environments.

oscilloscope

Three-dimensional testing for industrial systems

Visual:
Inspect input signals, output feedback loops or safety interlocks simultaneously to find a range of problems including:
  • Circuit voltage/current overloading
  • Signal timing measurements and synchronization issues
  • Attenuation/input impedance mismatch
  • Signal fluctuation/drift

oscilloscope

Three-phase testing for diagnosing VSD, power inverters, and converters

Visual:
Take advantage of four channels to test variable frequency drive and inverter power electronics technology used in wind energy and transportation applications:
  • Test for harmonics, transients and loads in three-phase power input
  • Troubleshoot dc to ac converters for faulty IGBT gates.
  • Test PWM output for reflections and transients

Safely measure from mV to kV

Standard probes that cover a wide application range from mV to kV prepare you for anything from micro-electronics to heavy duty medium voltage electrical applications. Independent isolated inputs eliminate the risk of accidental ground short circuits by allowing you to make measurements in mixed circuits with separate ground references.

oscilloscopeTake on the Harshest Conditions with the only IP-51-rated Scope on the Market

Rugged and shock-proof, all ScopeMeter portable oscilloscopes are built for harsh environments. Their sealed cases protect them from dust, water vapor, drips, humidity and airborne pollutants, ensuring reliable accurate performance every time you need them.

Work a Full Shift on a Single Charge

New high-performance batteries take advantage of Li-ion technology to keep you going strong for seven hours. And with the easy-access battery door you can make battery swaps fast.

scopemeter usb

Capture and Share Waveforms Easily with New USB connectivity


Two USP ports, electrically isolated from measurement input circuits offer you easy USB connectivity to a PC or USB memory devices. Store unlimited waveform, screen captures or instrument steups to a USB memory device. Connect to a PC USB interface to transfer and archive critical measurement data using FlukeView software for windows.



oscilloscope

See a Stable Display Instantly with Connect-and-View™ Triggering

Connect-and-View™ automatically sets up correct triggering by recognizing signal patterns. Without touching a button, you get a stable, reliable, and repeatable display of virtually any signal including motor drive and control signals. Expedites measuring several test-points in rapid succession.






oscilloscope

Record Up to 48 Hours of High-Resolution Waveforms with ScopeRecord™

ScopeRecord memory stores up to 27,000 data points per channel, capturing intermittents and fast glitches. (Two sets of multiple-channel recordings can be stored for later analysis.)
  • Stores events like motion profiles, UPS, power supply, and motor start-ups
  • With the Stop-on-Trigger mode, the ScopeMeter automatically recognizes a power failure and stores the waveform data preceding it
  • With the waveform zoom (up to 100x) you can look at the smallest details, like individual power cycles

oscilloscope

Record up to 16 days with TrendPlot™ paperless recorder to find intermittent faults

Intermittent faults can be caused by bad connections, dust, dirt, corrosion, or simply broken wiring or connectors. Line outages, sags, or starting and stopping a motor can also cause a machine to stop. The TrendPlot function in the Fluke ScopeMeter helps find those faults by:
  • Plotting minimum and maximum peak values and average over time up to 16 days
  • Plotting any combination of voltages, amps, temperature, frequency and phase for all four inputs, all with time and date stamp to pinpoint faults

FlukeView ScopeMeter software adds PC power to your Fluke ScopeMeter (Includes Demo Version)


FlukeView ScopeMeter SoftwareFlukeView ScopeMeter software helps you get more out of your ScopeMeter by:

Documenting: Transfer screens, waveforms, and measurement data from the ScopeMeter to your PC for printing, or to import data to other programs.

Archiving: Store and retrieve waveforms with text annotations and create your own library for easy reference and comparison.

Analysis: Gather valuable measurement data and enable cursor measurements to reveal relationships and conditions. Extended recording of up to four user-selected measurements help you monitor and analyze slow moving signals and related events. Upload waveforms to the PC and use cursors for detailed measurements. Perform waveform analysis, including analyzing harmonics.
  • For ScopeMeter 190 & 120 Series
  • Windows 95/98/Me/NT4.0/2000/XP
  • Requires one free RS-232 port (COM port)
  • Requires optional PM9080 RS-232 Adapter/Cable

Fluke ScopeMeter 190 Series II Portable Oscilloscopes Demo Circuit: Overview


This video showcases the main features and functions of these portable oscilloscopes. Additionally, the user can perform timing or amplitude related measurements on three phases or three-axis control systems, or compare and contrast multiple test points in a circuit under test.

How To Use Instant Replay On a Fluke 190 ScopeMeter Oscilloscope


In this video, the user learns how to capture random events using triggering and show the results in instant replay. The scope meter oscilloscope can quickly and easily capture disturbances to make sense of your signals and eliminate the tedium of troubleshooting.

How To Create and Recall Waveforms Using the Fluke 190 Series Portable Oscilloscope


This video will serve as a step by step tutorial on how to set up waveforms with the oscilloscope, and how to return settings to factory default. Additionally, this instrument offers the same performance as a bench scope with feature-rich capabilities to tackle just about any troubleshooting task.

How to Synchronize a Fluke 190 Series Portable Oscilloscope with Basic Triggers


This video breaks down the process of synchronizing your portable oscilloscope with triggers. The TRIGGER function allows the user to synchronize their scopemeter with the signal the oscilloscope is connected to and display waveforms on your instrument.

How To Startup and Reset Settings on the Fluke ScopeMeter Portable Oscilloscope


This video is a walkthrough on how to power up and perform a reset with the scopemeter. Ideal for plant maintenance engineers and technicians, this instrument goes into harsh and dirty industrial conditions to test everything from microelectronics to power electronics applications.

How To Transfer Data From a Fluke ScopeMeter Portable Oscilloscope onto a USB Drive


This video is a tutorial on how to transfer data from a fluke scope meter directly onto a USB drive. The oscilloscope comes with an isolated USB host port for direct data storage from a USB to a computer.

How To Use the TrendPlot® Function on the Fluke ScopeMeter Portable Oscilloscope


In this video, the user learns how to set up the TrendPlot function to find intermittent faults. The function plots minimum and maximum peak values for up to 22 days, in any combination of voltages, amps, temperature, frequency, and phase for all four inputs.

Click on a category to view a selection of compatible accessories with the Fluke 190-104/AM ScopeMeter® Oscilloscope, 4 channel, 100 MHz.

Fluke TL175 TwistGuard Test Leads Set TL175
By simply twisting the test lead the user can change the exposed probe tip length from 19 mm to 4 mm (0.75 inch to 0.16 inch).




Fluke SCC290 ScopeMeter Software & Carrying Case Kit SCC290
Kit comes with FlukeView ScopeMeter software and the Fluke C290 carrying case.




Fluke HH290 Hanging Hook HH290
Hanging Hook for ScopeMeter 190-Series II.




FE AS400 AS400
Probe Accessory set for VPS400 Probes.




Fluke RS400 Probe Accessory Replacement Kit for the VPS400 Series RS400
Compatible with the FLuke VPS410B, VPS410G, VPS410R, and the VPS410V.





Fluke VPS510-B ScopeMeter Compact Probe Set, 500MHZ, 10:1, Blue VPS510-B
Double insulated, designed for safety, wide bandwidth probe-set for ScopeMeter 190 Series II. Compact size, targeting electronics applications.




Fluke VPS510-G ScopeMeter Compact Probe Set, 500 MHZ, 10:1 VPS510-G
Double insulated, designed for safety, wide bandwidth probe-set for ScopeMeter 190 Series II. Compact size, targeting electronics applications.




Fluke VPS510-R ScopeMeter Compact Probe Set, 500MHZ, 10:1, Red VPS510-R
Double insulated, designed for safety, wide bandwidth probe-set for the ScopeMeter 190 Series II. Compact size, targeting electronics applications.




Fluke VPS510-V ScopeMeter Compact Probe Set, 500MHZ, 10:1, Green VPS510-V
Double insulated,designed for safety, wide bandwidth probe-set for the ScopeMeter 190 Series II. Compact size, targeting electronics applications.




Fluke SW90W FlukeView ScopeMeter Software SW90W
Documents, archives, and analyzes slow moving signals and related events. For use with 120B Series ScopeMeters.




Fluke C290 Hard Shell Protective Carrying Case for the Fluke 190-II Series C290
Includes pockets to store probes and leads.




Fluke BP290 Li-Ion Battery Pack BP290
For Fluke 43X power quality analyzers and 190-series ScopeMeters.




Fluke SCC298 Automotive Troubleshooting Kit for 190 Series II ScopeMeters SCC298
Using the 190 Series in dedicated applications like automotive electronics troubleshooting often requires special accessories like adapters, connectors and test leads to establish the measurement connection to the circuitry under test. The Fluke SCC198 kit provides a host of accessories that allow you to easily and quickly make measurements on automotive electronic systems, using a 190 Series ScopeMeter.




Fluke BP291 Double Capacity Li-Ion Battery Pack BP291
For Fluke 43X power quality analyzers and 190-series ScopeMeters.




Fluke EBC290 External Battery Charger EBC290
External battery charger for Li-ion batteries for 190B and 120B Series ScopeMeters and power quality analyzers.




Ask a question about Fluke 190-104/AM ScopeMeter® Oscilloscope, 4 channel, 100 MHz

Customer Reviews for the Fluke 190-104/AM

More Fluke Products
