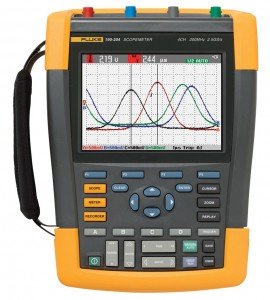

Fluke 190-204/AM/S ScopeMeter Test Tool with SCC-290 kit, 200 MHz, 4 channels

Model: 190-204/AM/S | UPC: 95969580007

Fluke 190-204/AM/S ScopeMeter Test Tool with SCC-290 kit, 200 MHz, 4 channels-


Downloads: datasheet manual

Fluke 190-204/AM/S ScopeMeter Test Tool with SCC-290 kit, 200 MHz, 4 channels

Model: 190-204/AM/S

Combines rugged portability with the high performance of bench oscilloscopes to take you from troubleshooting microelectronics into power electronic application. Additionally, it features up to 10,000 samples per channel, and it is IP51 rated to withstand dust, drips, humidity, wide temperature variations. and comes with the SCC-290 kit.

Combines rugged portability with the high performance of bench oscilloscopes to take you from troubleshooting microelectronics into power electronic application. Additionally, it features up to 10,000 samples per channel, and it is IP51 rated to withstand dust, drips, humidity, wide temperature variations. and comes with the SCC-290 kit.

Your Price $5574.99 USD
Availability 1 to 2 Weeks
Quantity

Add In-House Traceable Calibration to your 190-204/AM/S

Add In-House Traceable Calibration to your 190-204/AM/S


Fluke 190-204/AM/S Offers

See more, fix more with this four-channel CAT IV rated scopemeter®

Designed for plant maintenance engineers and technicians, this scopemeter also combines the highest safety ratings and rugged portability. This allows the instrument to perform in harsh, dirty, and hazardous industrial conditions to test everything from micro-electronics to power electronics applications.

Tackle just about any troubleshooting task with this instrument, including a multimeter, TrendPlot™, and ScopeRecord™ roll paperless recorder modes and hands-free operation with Connect-and-View™ triggering, and much more.

Features

  • Up to four independent floating isolated inputs, up to 1000 V
  • Up to 5 GS/s real time sampling (depending on model and channels used)
  • Deep memory: 10,000 points per trace waveform capture (scope mode)
  • CAT III 1000 V/CAT IV 600 V safety rated instrument for industrial environments
  • Up to seven hours of battery operation using BP291
  • Isolated USB host port for direct data storage to a USB memory device; USB device port for easy PC communication
  • Easy access battery door for quick battery swaps in the field
  • Compact design
  • Security slot: lock down oscilloscope with Kensington® lock while unattended
  • IP51 rating, dust- and drip-proof
  • Connect-and-View™ triggering for intelligent, automatic triggering on fast, slow and even complex signals
  • Frequency spectrum using FFT-analysis
  • Automatic capture and REPLAY of 100 screens
  • ScopeRecord™ roll mode gives 30,000 points per input channel for low frequency signal analysis
  • ScopeRecord™ roll mode, capture waveform sample data for up to 48 hours
  • TrendPlot™ paperless recorder mode with deep memory for long-term automatic measurements
  • TrendPlot™ trend measurement readings for up to 22 days
  • Two electrically isolated inputs
  • 200 MHz bandwidth model
  • Dedicated 5000 count digital multimeter
  • Connect and View continuous auto-trigger, single shot, pulse width, and video triggering
  • Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
  • IP-51 rated for dust and drip proof to withstand harsh environments
  • Li-Ion battery for extended operating timespan
  • Charge spare battery using optional external battery charger EBC290
  • Easy-access battery door to make it easy to swap batteries

Built in multimeter to quickly and conveniently perform precise measurements

Built-in digital multimeter 4 channel model with isolated dual input scope and dedicated digital multimeter. Conveniently switch from waveform analysis to precise multimeter measurements using the built in 5000 count digital multimeter. Measurement functions include Vdc, Vac, Vac+dc, resistance, continuity and diode test. Measure current and temperature using suitable shunt, probe or adapter with wide range of scaling factors.

Applications

  • Troubleshooting
  • Micro-electronics
  • Power electronics

Fluke 190-204/AM/S Specifications

Bandwidth 200 MHz
Number of Channels 200 MHz: 4 channels
Real-Time Sample Rate 2.5 GS/s
Inputs 4 scope plus DMM input
Independently Floating Isolated Inputs Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
Timebase Range 2 ns to 2 min/div
Input sensitivity 2 mV to 100 V/div
Trigger Types Connect-and-View™
Free run
Single shot
Edge
Delay
Dual Slope
Video
Video line
Selectable pulse width
N-Cycle
Trigger Source Any scope input channel
Glitch Capture 8 ns
Scope Measurements Cursor: 7
Automatic: 30
Maximum Record Length ScopeRecord mode: 30,000 pts
Scope mode: 10,000 pts per input
Persistence Digital persistence giving analog oscilloscope-like waveform decay
Waveform Compare Waveform reference with automatic Pass/Fail testing
Environmental Specifications
Operating Temperature 32 to 104°F (0 to 40°C) Including batteries
32 to 122°F (0 to 50°C) Excluding batteries
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Altitude Up to 6666' (2000 m) for CAT IV 600 V, CAT III 1000 V
Up to 10,000' (3,000 m) for CAT III 600 V, CAT II 1000 V
Safety Specifications
Electrical Safety 1000 V CAT III/600V CAT IV (EN61010-1)
Mechanical and General Specifications
Li-Ion Battery BP291 4800 mAh battery up to 7 hours included standard
Size 10.6 x 7.5 x 2.7" (270 x 190 x 70 mm)
Weight 4.8 lbs (2.2 kg)
Click here for complete specifications on the Fluke 190-204/AM/S

What's included with the Fluke 190-204/AM/S

  • ScopeMeter
  • SCC-290 Kit:
    • Fluke View Software
    • Interface Cable
    • Carrying Case
  • Voltage Probe Sets
  • USB Interface Cable
  • Demo Package
  • Hangstrap
  • Handstrap
  • Adapter
  • Li-ion Battery
  • Multi-Language User's Manual on CD-ROM and FlukeView Demo Package

See More, Fix More with the New Four-Channel CAT IV Rated Fluke ScopeMeter 190 Series II

The new Fluke ScopeMeter 190-104 (100MHz) and 190-204 (200MHz) combine the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Designed for plant maintenance engineers and technicians, these tough ScopeMeters go into harsh, dirty, and hazardous industrial conditions to test everything from microelectronics to power electronics applications.

The new 190 Series II includes all the standard ScopeMeter features including TrendPlot™, Connect-and-View™ triggering, and ScopeRecord™ and much more:

  • Four electrically isolated inputs
  • CAT III 1000V / CAT IV 600V safety rated
  • Choose from 100MHz or 200MHz bandwidth models
  • Single shot, pulse width, and video triggering
  • Fast sampling rate, up to 2.5GS/s with up to 400 ps resolution
  • Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
  • IP-51 rated for dust and drip proof to withstand harsh environments
  • Isolated USB ports for memory devices and PC connectivity
  • 7-hour battery life, standard with new Li-ion technology
  • Easy-access battery door to make it easy to swap batteries
  • A handy slot to tether and lock down the oscilloscope while unattended

Gain Four Times the Diagnostic Power Plus CAT IV Safety Rating

The new Fluke ScopeMeter 190 Series II portable scopes are double-insulated four-channel floating oscilloscopes safety rated for measurements in CAT III 1000V/CAT IV 600V environments.

Three-dimensional testing for industrial systems

Inspect input signals, output feedback loops or safety interlocks simultaneously to find a range of problems including:
  • Circuit voltage/current overloading
  • Signal timing measurements and synchronization issues
  • Attenuation/input impedance mismatch
  • Signal fluctuation/drift

Three-phase testing for diagnosing VSD, power inverters, and converters

Take advantage of four channels to test variable frequency drive and inverter power electronics technology used in wind energy and transportation applications:
  • Test for harmonics, transients and loads in three-phase power input
  • Troubleshoot dc to ac converters for faulty IGBT gates.
  • Test PWM output for reflections and transients

Safely measure from mV to kV

Standard probes that cover a wide application range from mV to kV prepare you for anything from micro-electronics to heavy duty medium voltage electrical applications. Independent isolated inputs eliminate the risk of accidental ground short circuits by allowing you to make measurements in mixed circuits with separate ground references.

Take on the Harshest Conditions with the only IP-51-rated Scope on the Market

Rugged and shock-proof, all ScopeMeter portable oscilloscopes are built for harsh environments. Their sealed cases protect them from dust, water vapor, drips, humidity and airborne pollutants, ensuring reliable accurate performance every time you need them.

Work a Full Shift on a Single Charge

New high-performance batteries take advantage of Li-ion technology to keep you going strong for seven hours. And with the easy-access battery door you can make battery swaps fast.

Capture and Share Waveforms Easily with New USB connectivity

Two USP ports, electrically isolated from measurement input circuits offer you easy USB connectivity to a PC or USB memory devices. Store unlimited waveform, screen captures or instrument steups to a USB memory device. Connect to a PC USB interface to transfer and archive critical measurement data using FlukeView software for windows.

See a Stable Display Instantly with Connect-and-View™ Triggering

Connect-and-View™ automatically sets up correct triggering by recognizing signal patterns. Without touching a button, you get a stable, reliable, and repeatable display of virtually any signal including motor drive and control signals. Expedites measuring several test-points in rapid succession.

Record Up to 48 Hours of High-Resolution Waveforms with ScopeRecord™

ScopeRecord memory stores up to 27,000 data points per channel, capturing intermittents and fast glitches. (Two sets of multiple-channel recordings can be stored for later analysis.)
  • Stores events like motion profiles, UPS, power supply, and motor start-ups
  • With the Stop-on-Trigger mode, the ScopeMeter automatically recognizes a power failure and stores the waveform data preceding it
  • With the waveform zoom (up to 100x) you can look at the smallest details, like individual power cycles

Record up to 22 days with TrendPlot™ paperless recorder to find intermittent faults

Intermittent faults can be caused by bad connections, dust, dirt, corrosion, or simply broken wiring or connectors. Line outages, sags, or starting and stopping a motor can also cause a machine to stop. The TrendPlot function in the Fluke ScopeMeter helps find those faults by:
  • Plotting minimum and maximum peak values and average over time up to 22 days
  • Plotting any combination of voltages, amps, temperature, frequency and phase for all four inputs, all with time and date stamp to pinpoint faults

FlukeView ScopeMeter software adds PC power to your Fluke ScopeMeter (Includes Demo Version)


FlukeView ScopeMeter software helps you get more out of your ScopeMeter by:

Documenting: Transfer screens, waveforms, and measurement data from the ScopeMeter to your PC for printing, or to import data to other programs.

Archiving: Store and retrieve waveforms with text annotations and create your own library for easy reference and comparison.

Analysis: Gather valuable measurement data and enable cursor measurements to reveal relationships and conditions. Extended recording of up to four user-selected measurements help you monitor and analyze slow moving signals and related events. Upload waveforms to the PC and use cursors for detailed measurements. Perform waveform analysis, including analyzing harmonics.
  • For ScopeMeter 190 & 120 Series
  • Windows 95/98/Me/NT4.0/2000/XP
  • Requires one free RS-232 port (COM port)
  • Requires optional PM9080 RS-232 Adapter/Cable

Fluke ScopeMeter 190 Series II Portable Oscilloscopes Demo Circuit: Overview


This video showcases the main features and functions of these portable oscilloscopes. Additionally, the user can perform timing or amplitude related measurements on three phases or three-axis control systems, or compare and contrast multiple test points in a circuit under test.

How To Use Instant Replay On a Fluke 190 ScopeMeter Oscilloscope


In this video, the user learns how to capture random events using triggering and show the results in instant replay. The scope meter oscilloscope can quickly and easily capture disturbances to make sense of your signals and eliminate the tedium of troubleshooting.

How To Create and Recall Waveforms Using the Fluke 190 Series Portable Oscilloscope


This video will serve as a step by step tutorial on how to set up waveforms with the oscilloscope, and how to return settings to factory default. Additionally, this instrument offers the same performance as a bench scope with feature-rich capabilities to tackle just about any troubleshooting task.

How to Synchronize a Fluke 190 Series Portable Oscilloscope with Basic Triggers


This video breaks down the process of synchronizing your portable oscilloscope with triggers. The TRIGGER function allows the user to synchronize their scopemeter with the signal the oscilloscope is connected to and display waveforms on your instrument.

How To Startup and Reset Settings on the Fluke ScopeMeter Portable Oscilloscope


This video is a walkthrough on how to power up and perform a reset with the scopemeter. Ideal for plant maintenance engineers and technicians, this instrument goes into harsh and dirty industrial conditions to test everything from microelectronics to power electronics applications.

How To Transfer Data From a Fluke ScopeMeter Portable Oscilloscope onto a USB Drive


This video is a tutorial on how to transfer data from a fluke scope meter directly onto a USB drive. The oscilloscope comes with an isolated USB host port for direct data storage from a USB to a computer.

How To Use the TrendPlot® Function on the Fluke ScopeMeter Portable Oscilloscope


In this video, the user learns how to set up the TrendPlot function to find intermittent faults. The function plots minimum and maximum peak values for up to 22 days, in any combination of voltages, amps, temperature, frequency, and phase for all four inputs.

Click on a category to view a selection of compatible accessories with the Fluke 190-204/AM/S ScopeMeter Test Tool with SCC-290 kit, 200 MHz, 4 channels.


Fluke RS400 Probe Accessory Replacement Kit for the VPS400 Series RS400
Compatible with the FLuke VPS410B, VPS410G, VPS410R, and the VPS410V.




FE AS400 AS400
Probe Accessory set for VPS400 Probes.




Fluke VPS510-B ScopeMeter Compact Probe Set, 500MHZ, 10:1, Blue VPS510-B
Double insulated, designed for safety, wide bandwidth probe-set for ScopeMeter 190 Series II. Compact size, targeting electronics applications.




Fluke VPS510-G ScopeMeter Compact Probe Set, 500 MHZ, 10:1 VPS510-G
Double insulated, designed for safety, wide bandwidth probe-set for ScopeMeter 190 Series II. Compact size, targeting electronics applications.




Fluke VPS510-R ScopeMeter Compact Probe Set, 500MHZ, 10:1, Red VPS510-R
Double insulated, designed for safety, wide bandwidth probe-set for the ScopeMeter 190 Series II. Compact size, targeting electronics applications.




Fluke VPS510-V ScopeMeter Compact Probe Set, 500MHZ, 10:1, Green VPS510-V
Double insulated,designed for safety, wide bandwidth probe-set for the ScopeMeter 190 Series II. Compact size, targeting electronics applications.




Fluke TL175 TwistGuard Test Leads Set TL175
By simply twisting the test lead the user can change the exposed probe tip length from 19 mm to 4 mm (0.75 inch to 0.16 inch).




Fluke MA190 ScopeMeter Medical & Video Accessory kit MA190
For medical and video applications enables interconnection of the Fluke ScopeMeter 190 Series.




Fluke TRM50 50 ohm Feed-Through Terminator BNC TRM50
Feed Through Terminator for Use With Fluke 190-502 500 MHz Oscilloscopes, Input Voltage 1000 Includes Cable Terminator, BNC connection with Fluke 1 year warranty




Fluke VPS410-II-B INDUS.VOLT.PROBE SET 500MHZ 10:1 BLUE VPS410-II-B
Voltage Probe, Bandwidth (mhz) 500, Probe Ratio 10:1, Cable Length (meters) 1.2, Input Impedance (ohms) 10m, Capacitance (pf) 12, Approx. Rise Time (ns) 3, Max. Voltage 1000 V Cat III / 600 V Cat IV, Compensation Range (pf) 10 To 22, Safety Rating 1000 V Cat Iii / 600 V Cat IV Includes Probe, Hook Clip, Ground Lead, Ground Spring, Insulation Sleeve, Fluke 1 Year Warranty Blue Colour.




Fluke VPS410-II-G INDUS.VOLT.PROBE SET 500MHZ 10:1 GRAY VPS410-II-G
Voltage Probe, Bandwidth (mhz) 500, Probe Ratio 10:1, Cable Length (meters) 1.2, Input Impedance (ohms) 10m, Capacitance (pf) 12, Approx. Rise Time (ns) 3, Max. Voltage 1000 V Cat III / 600 V Cat IV, Compensation Range (pf) 10 To 22, Safety Rating 1000 V Cat Iii / 600 V Cat IV Includes Probe, Hook Clip, Ground Lead, Ground Spring, Insulation Sleeve, Fluke 1 Year Warranty Grey Colour.




Fluke VPS410-II-R INDUS.VOLT.PROBE SET 500MHZ 10:1 RED VPS410-II-R
Voltage Probe, Bandwidth (mhz) 500, Probe Ratio 10:1, Cable Length (meters) 1.2, Input Impedance (ohms) 10m, Capacitance (pf) 12, Approx. Rise Time (ns) 3, Max. Voltage 1000 V Cat III / 600 V Cat IV, Compensation Range (pf) 10 To 22, Safety Rating 1000 V Cat Iii / 600 V Cat IV Includes Probe, Hook Clip, Ground Lead, Ground Spring, Insulation Sleeve, Fluke 1 Year Warranty Red Colour.




Fluke VPS420-B Voltage Probe Set, Blue VPS420-B
Ruggedized high working voltage probe set for 190 Series Scopemeter.




Fluke BC190/830 Power Adapter, Universal, 190 Series BC190/830
Universal, mains power adapter for use with Fluke 190 Series ScopeMeter Test Tool.




Fluke SW90W FlukeView ScopeMeter Software SW90W
Documents, archives, and analyzes slow moving signals and related events. For use with 120B Series ScopeMeters.




Fluke SCC290 ScopeMeter Software & Carrying Case Kit SCC290
Kit comes with FlukeView ScopeMeter software and the Fluke C290 carrying case.




Fluke HH290 Hanging Hook HH290
Hanging Hook for ScopeMeter 190-Series II.




Fluke EBC290 External Battery Charger EBC290
External battery charger for Li-ion batteries for 190B and 120B Series ScopeMeters and power quality analyzers.




Fluke BP291 Double Capacity Li-Ion Battery Pack BP291
For Fluke 43X power quality analyzers and 190-series ScopeMeters.




Fluke BP290 Li-Ion Battery Pack BP290
For Fluke 43X power quality analyzers and 190-series ScopeMeters.




Customer Reviews for the Fluke 190-204/AM/S

Ask a question about Fluke 190-204/AM/S ScopeMeter Test Tool with SCC-290 kit, 200 MHz, 4 channels

Fluke 190-204/AM/S Offers

See more, fix more with this four-channel CAT IV rated scopemeter®

Designed for plant maintenance engineers and technicians, this scopemeter also combines the highest safety ratings and rugged portability. This allows the instrument to perform in harsh, dirty, and hazardous industrial conditions to test everything from micro-electronics to power electronics applications.

Tackle just about any troubleshooting task with this instrument, including a multimeter, TrendPlot™, and ScopeRecord™ roll paperless recorder modes and hands-free operation with Connect-and-View™ triggering, and much more.

Features

  • Up to four independent floating isolated inputs, up to 1000 V
  • Up to 5 GS/s real time sampling (depending on model and channels used)
  • Deep memory: 10,000 points per trace waveform capture (scope mode)
  • CAT III 1000 V/CAT IV 600 V safety rated instrument for industrial environments
  • Up to seven hours of battery operation using BP291
  • Isolated USB host port for direct data storage to a USB memory device; USB device port for easy PC communication
  • Easy access battery door for quick battery swaps in the field
  • Compact design
  • Security slot: lock down oscilloscope with Kensington® lock while unattended
  • IP51 rating, dust- and drip-proof
  • Connect-and-View™ triggering for intelligent, automatic triggering on fast, slow and even complex signals
  • Frequency spectrum using FFT-analysis
  • Automatic capture and REPLAY of 100 screens
  • ScopeRecord™ roll mode gives 30,000 points per input channel for low frequency signal analysis
  • ScopeRecord™ roll mode, capture waveform sample data for up to 48 hours
  • TrendPlot™ paperless recorder mode with deep memory for long-term automatic measurements
  • TrendPlot™ trend measurement readings for up to 22 days
  • Two electrically isolated inputs
  • 200 MHz bandwidth model
  • Dedicated 5000 count digital multimeter
  • Connect and View continuous auto-trigger, single shot, pulse width, and video triggering
  • Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
  • IP-51 rated for dust and drip proof to withstand harsh environments
  • Li-Ion battery for extended operating timespan
  • Charge spare battery using optional external battery charger EBC290
  • Easy-access battery door to make it easy to swap batteries

Built in multimeter to quickly and conveniently perform precise measurements

Built-in digital multimeter 4 channel model with isolated dual input scope and dedicated digital multimeter. Conveniently switch from waveform analysis to precise multimeter measurements using the built in 5000 count digital multimeter. Measurement functions include Vdc, Vac, Vac+dc, resistance, continuity and diode test. Measure current and temperature using suitable shunt, probe or adapter with wide range of scaling factors.

Applications

  • Troubleshooting
  • Micro-electronics
  • Power electronics

Fluke 190-204/AM/S Specifications

Bandwidth 200 MHz
Number of Channels 200 MHz: 4 channels
Real-Time Sample Rate 2.5 GS/s
Inputs 4 scope plus DMM input
Independently Floating Isolated Inputs Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
Timebase Range 2 ns to 2 min/div
Input sensitivity 2 mV to 100 V/div
Trigger Types Connect-and-View™
Free run
Single shot
Edge
Delay
Dual Slope
Video
Video line
Selectable pulse width
N-Cycle
Trigger Source Any scope input channel
Glitch Capture 8 ns
Scope Measurements Cursor: 7
Automatic: 30
Maximum Record Length ScopeRecord mode: 30,000 pts
Scope mode: 10,000 pts per input
Persistence Digital persistence giving analog oscilloscope-like waveform decay
Waveform Compare Waveform reference with automatic Pass/Fail testing
Environmental Specifications
Operating Temperature 32 to 104°F (0 to 40°C) Including batteries
32 to 122°F (0 to 50°C) Excluding batteries
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Altitude Up to 6666' (2000 m) for CAT IV 600 V, CAT III 1000 V
Up to 10,000' (3,000 m) for CAT III 600 V, CAT II 1000 V
Safety Specifications
Electrical Safety 1000 V CAT III/600V CAT IV (EN61010-1)
Mechanical and General Specifications
Li-Ion Battery BP291 4800 mAh battery up to 7 hours included standard
Size 10.6 x 7.5 x 2.7" (270 x 190 x 70 mm)
Weight 4.8 lbs (2.2 kg)
Click here for complete specifications on the Fluke 190-204/AM/S

What's included with the Fluke 190-204/AM/S

  • ScopeMeter
  • SCC-290 Kit:
    • Fluke View Software
    • Interface Cable
    • Carrying Case
  • Voltage Probe Sets
  • USB Interface Cable
  • Demo Package
  • Hangstrap
  • Handstrap
  • Adapter
  • Li-ion Battery
  • Multi-Language User's Manual on CD-ROM and FlukeView Demo Package

See More, Fix More with the New Four-Channel CAT IV Rated Fluke ScopeMeter 190 Series II

The new Fluke ScopeMeter 190-104 (100MHz) and 190-204 (200MHz) combine the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Designed for plant maintenance engineers and technicians, these tough ScopeMeters go into harsh, dirty, and hazardous industrial conditions to test everything from microelectronics to power electronics applications.

The new 190 Series II includes all the standard ScopeMeter features including TrendPlot™, Connect-and-View™ triggering, and ScopeRecord™ and much more:

  • Four electrically isolated inputs
  • CAT III 1000V / CAT IV 600V safety rated
  • Choose from 100MHz or 200MHz bandwidth models
  • Single shot, pulse width, and video triggering
  • Fast sampling rate, up to 2.5GS/s with up to 400 ps resolution
  • Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
  • IP-51 rated for dust and drip proof to withstand harsh environments
  • Isolated USB ports for memory devices and PC connectivity
  • 7-hour battery life, standard with new Li-ion technology
  • Easy-access battery door to make it easy to swap batteries
  • A handy slot to tether and lock down the oscilloscope while unattended

Gain Four Times the Diagnostic Power Plus CAT IV Safety Rating

The new Fluke ScopeMeter 190 Series II portable scopes are double-insulated four-channel floating oscilloscopes safety rated for measurements in CAT III 1000V/CAT IV 600V environments.

Three-dimensional testing for industrial systems

Inspect input signals, output feedback loops or safety interlocks simultaneously to find a range of problems including:
  • Circuit voltage/current overloading
  • Signal timing measurements and synchronization issues
  • Attenuation/input impedance mismatch
  • Signal fluctuation/drift

Three-phase testing for diagnosing VSD, power inverters, and converters

Take advantage of four channels to test variable frequency drive and inverter power electronics technology used in wind energy and transportation applications:
  • Test for harmonics, transients and loads in three-phase power input
  • Troubleshoot dc to ac converters for faulty IGBT gates.
  • Test PWM output for reflections and transients

Safely measure from mV to kV

Standard probes that cover a wide application range from mV to kV prepare you for anything from micro-electronics to heavy duty medium voltage electrical applications. Independent isolated inputs eliminate the risk of accidental ground short circuits by allowing you to make measurements in mixed circuits with separate ground references.

Take on the Harshest Conditions with the only IP-51-rated Scope on the Market

Rugged and shock-proof, all ScopeMeter portable oscilloscopes are built for harsh environments. Their sealed cases protect them from dust, water vapor, drips, humidity and airborne pollutants, ensuring reliable accurate performance every time you need them.

Work a Full Shift on a Single Charge

New high-performance batteries take advantage of Li-ion technology to keep you going strong for seven hours. And with the easy-access battery door you can make battery swaps fast.

Capture and Share Waveforms Easily with New USB connectivity

Two USP ports, electrically isolated from measurement input circuits offer you easy USB connectivity to a PC or USB memory devices. Store unlimited waveform, screen captures or instrument steups to a USB memory device. Connect to a PC USB interface to transfer and archive critical measurement data using FlukeView software for windows.

See a Stable Display Instantly with Connect-and-View™ Triggering

Connect-and-View™ automatically sets up correct triggering by recognizing signal patterns. Without touching a button, you get a stable, reliable, and repeatable display of virtually any signal including motor drive and control signals. Expedites measuring several test-points in rapid succession.

Record Up to 48 Hours of High-Resolution Waveforms with ScopeRecord™

ScopeRecord memory stores up to 27,000 data points per channel, capturing intermittents and fast glitches. (Two sets of multiple-channel recordings can be stored for later analysis.)
  • Stores events like motion profiles, UPS, power supply, and motor start-ups
  • With the Stop-on-Trigger mode, the ScopeMeter automatically recognizes a power failure and stores the waveform data preceding it
  • With the waveform zoom (up to 100x) you can look at the smallest details, like individual power cycles

Record up to 22 days with TrendPlot™ paperless recorder to find intermittent faults

Intermittent faults can be caused by bad connections, dust, dirt, corrosion, or simply broken wiring or connectors. Line outages, sags, or starting and stopping a motor can also cause a machine to stop. The TrendPlot function in the Fluke ScopeMeter helps find those faults by:
  • Plotting minimum and maximum peak values and average over time up to 22 days
  • Plotting any combination of voltages, amps, temperature, frequency and phase for all four inputs, all with time and date stamp to pinpoint faults

FlukeView ScopeMeter software adds PC power to your Fluke ScopeMeter (Includes Demo Version)


FlukeView ScopeMeter software helps you get more out of your ScopeMeter by:

Documenting: Transfer screens, waveforms, and measurement data from the ScopeMeter to your PC for printing, or to import data to other programs.

Archiving: Store and retrieve waveforms with text annotations and create your own library for easy reference and comparison.

Analysis: Gather valuable measurement data and enable cursor measurements to reveal relationships and conditions. Extended recording of up to four user-selected measurements help you monitor and analyze slow moving signals and related events. Upload waveforms to the PC and use cursors for detailed measurements. Perform waveform analysis, including analyzing harmonics.
  • For ScopeMeter 190 & 120 Series
  • Windows 95/98/Me/NT4.0/2000/XP
  • Requires one free RS-232 port (COM port)
  • Requires optional PM9080 RS-232 Adapter/Cable

Fluke ScopeMeter 190 Series II Portable Oscilloscopes Demo Circuit: Overview


This video showcases the main features and functions of these portable oscilloscopes. Additionally, the user can perform timing or amplitude related measurements on three phases or three-axis control systems, or compare and contrast multiple test points in a circuit under test.

How To Use Instant Replay On a Fluke 190 ScopeMeter Oscilloscope


In this video, the user learns how to capture random events using triggering and show the results in instant replay. The scope meter oscilloscope can quickly and easily capture disturbances to make sense of your signals and eliminate the tedium of troubleshooting.

How To Create and Recall Waveforms Using the Fluke 190 Series Portable Oscilloscope


This video will serve as a step by step tutorial on how to set up waveforms with the oscilloscope, and how to return settings to factory default. Additionally, this instrument offers the same performance as a bench scope with feature-rich capabilities to tackle just about any troubleshooting task.

How to Synchronize a Fluke 190 Series Portable Oscilloscope with Basic Triggers


This video breaks down the process of synchronizing your portable oscilloscope with triggers. The TRIGGER function allows the user to synchronize their scopemeter with the signal the oscilloscope is connected to and display waveforms on your instrument.

How To Startup and Reset Settings on the Fluke ScopeMeter Portable Oscilloscope


This video is a walkthrough on how to power up and perform a reset with the scopemeter. Ideal for plant maintenance engineers and technicians, this instrument goes into harsh and dirty industrial conditions to test everything from microelectronics to power electronics applications.

How To Transfer Data From a Fluke ScopeMeter Portable Oscilloscope onto a USB Drive


This video is a tutorial on how to transfer data from a fluke scope meter directly onto a USB drive. The oscilloscope comes with an isolated USB host port for direct data storage from a USB to a computer.

How To Use the TrendPlot® Function on the Fluke ScopeMeter Portable Oscilloscope


In this video, the user learns how to set up the TrendPlot function to find intermittent faults. The function plots minimum and maximum peak values for up to 22 days, in any combination of voltages, amps, temperature, frequency, and phase for all four inputs.

Click on a category to view a selection of compatible accessories with the Fluke 190-204/AM/S ScopeMeter Test Tool with SCC-290 kit, 200 MHz, 4 channels.


Fluke RS400 Probe Accessory Replacement Kit for the VPS400 Series RS400
Compatible with the FLuke VPS410B, VPS410G, VPS410R, and the VPS410V.




FE AS400 AS400
Probe Accessory set for VPS400 Probes.




Fluke VPS510-B ScopeMeter Compact Probe Set, 500MHZ, 10:1, Blue VPS510-B
Double insulated, designed for safety, wide bandwidth probe-set for ScopeMeter 190 Series II. Compact size, targeting electronics applications.




Fluke VPS510-G ScopeMeter Compact Probe Set, 500 MHZ, 10:1 VPS510-G
Double insulated, designed for safety, wide bandwidth probe-set for ScopeMeter 190 Series II. Compact size, targeting electronics applications.




Fluke VPS510-R ScopeMeter Compact Probe Set, 500MHZ, 10:1, Red VPS510-R
Double insulated, designed for safety, wide bandwidth probe-set for the ScopeMeter 190 Series II. Compact size, targeting electronics applications.




Fluke VPS510-V ScopeMeter Compact Probe Set, 500MHZ, 10:1, Green VPS510-V
Double insulated,designed for safety, wide bandwidth probe-set for the ScopeMeter 190 Series II. Compact size, targeting electronics applications.




Fluke TL175 TwistGuard Test Leads Set TL175
By simply twisting the test lead the user can change the exposed probe tip length from 19 mm to 4 mm (0.75 inch to 0.16 inch).




Fluke MA190 ScopeMeter Medical & Video Accessory kit MA190
For medical and video applications enables interconnection of the Fluke ScopeMeter 190 Series.




Fluke TRM50 50 ohm Feed-Through Terminator BNC TRM50
Feed Through Terminator for Use With Fluke 190-502 500 MHz Oscilloscopes, Input Voltage 1000 Includes Cable Terminator, BNC connection with Fluke 1 year warranty




Fluke VPS410-II-B INDUS.VOLT.PROBE SET 500MHZ 10:1 BLUE VPS410-II-B
Voltage Probe, Bandwidth (mhz) 500, Probe Ratio 10:1, Cable Length (meters) 1.2, Input Impedance (ohms) 10m, Capacitance (pf) 12, Approx. Rise Time (ns) 3, Max. Voltage 1000 V Cat III / 600 V Cat IV, Compensation Range (pf) 10 To 22, Safety Rating 1000 V Cat Iii / 600 V Cat IV Includes Probe, Hook Clip, Ground Lead, Ground Spring, Insulation Sleeve, Fluke 1 Year Warranty Blue Colour.




Fluke VPS410-II-G INDUS.VOLT.PROBE SET 500MHZ 10:1 GRAY VPS410-II-G
Voltage Probe, Bandwidth (mhz) 500, Probe Ratio 10:1, Cable Length (meters) 1.2, Input Impedance (ohms) 10m, Capacitance (pf) 12, Approx. Rise Time (ns) 3, Max. Voltage 1000 V Cat III / 600 V Cat IV, Compensation Range (pf) 10 To 22, Safety Rating 1000 V Cat Iii / 600 V Cat IV Includes Probe, Hook Clip, Ground Lead, Ground Spring, Insulation Sleeve, Fluke 1 Year Warranty Grey Colour.




Fluke VPS410-II-R INDUS.VOLT.PROBE SET 500MHZ 10:1 RED VPS410-II-R
Voltage Probe, Bandwidth (mhz) 500, Probe Ratio 10:1, Cable Length (meters) 1.2, Input Impedance (ohms) 10m, Capacitance (pf) 12, Approx. Rise Time (ns) 3, Max. Voltage 1000 V Cat III / 600 V Cat IV, Compensation Range (pf) 10 To 22, Safety Rating 1000 V Cat Iii / 600 V Cat IV Includes Probe, Hook Clip, Ground Lead, Ground Spring, Insulation Sleeve, Fluke 1 Year Warranty Red Colour.




Fluke VPS420-B Voltage Probe Set, Blue VPS420-B
Ruggedized high working voltage probe set for 190 Series Scopemeter.




Fluke BC190/830 Power Adapter, Universal, 190 Series BC190/830
Universal, mains power adapter for use with Fluke 190 Series ScopeMeter Test Tool.




Fluke SW90W FlukeView ScopeMeter Software SW90W
Documents, archives, and analyzes slow moving signals and related events. For use with 120B Series ScopeMeters.




Fluke SCC290 ScopeMeter Software & Carrying Case Kit SCC290
Kit comes with FlukeView ScopeMeter software and the Fluke C290 carrying case.




Fluke HH290 Hanging Hook HH290
Hanging Hook for ScopeMeter 190-Series II.




Fluke EBC290 External Battery Charger EBC290
External battery charger for Li-ion batteries for 190B and 120B Series ScopeMeters and power quality analyzers.




Fluke BP291 Double Capacity Li-Ion Battery Pack BP291
For Fluke 43X power quality analyzers and 190-series ScopeMeters.




Fluke BP290 Li-Ion Battery Pack BP290
For Fluke 43X power quality analyzers and 190-series ScopeMeters.




Ask a question about Fluke 190-204/AM/S ScopeMeter Test Tool with SCC-290 kit, 200 MHz, 4 channels

Customer Reviews for the Fluke 190-204/AM/S

More Fluke Products
