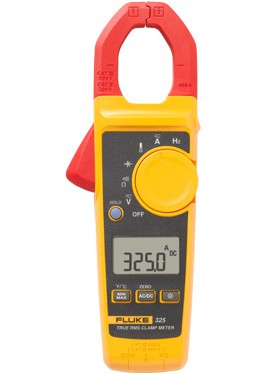

Fluke 325 True RMS Clamp Meter, AC/DC

Model: 325 | UPC: 95969623766

Fluke 325 True RMS Clamp Meter, AC/DC-


Downloads: datasheet manual

Fluke 325 True RMS Clamp Meter, AC/DC

Model: 325

Verify the presence of load current, AC voltage, and continuity of circuits, DC current, and frequency, switches, fuses, and contacts in the toughest environments with this True RMS clamp meter. Additionally, this troubleshooting tool is ideal for commercial and residential electricians.

Verify the presence of load current, AC voltage, and continuity of circuits, DC current, and frequency, switches, fuses, and contacts in the toughest environments with this True RMS clamp meter. Additionally, this troubleshooting tool is ideal for commercial and residential electricians.

Sale Price $287.99 USD
Regular Price $319.99 USD
Availability 65 in Stock
Quantity

Add In-House Traceable Calibration to your 325

Add In-House Traceable Calibration to your 325


Recommended Accessories


Fluke 325 Offers

Comes in a slim design for easy transport, this multimeter is also a reliable, versatile troubleshooting tool for commercial and residential electricians. It features True RMS measurements and a large display for efficient troubleshooting.

Features

  • 400 A AC and DC current measurement
  • 600 V AC and DC voltage measurement
  • True RMS AC voltage and current for accurate measurements on non-linear signals
  • Resistance measurement up to 40 kΩ with continuity detection
  • Measures frequency to 500 Hz
  • Temperature and capacitance measurement
  • Frequency measurement
  • Slim, ergonomic design
  • Large, easy to read backlight display
  • CAT IV 300V/CAT III 600 V safety rating
  • Hold button

Applications

  • Electricians
  • Commerical
  • Residential
Fluke Clamp Selection Guide

Fluke 325 Specifications

AC Current
Range 40.00 A/400.0 A
Accuracy 2% ± 5 digits (45 to 65 Hz)
2.5% ± 5 digits (65 to 400 Hz)
DC Current
Range 40.00 A/400.0 A
Accuracy 2% ± 5 digits
AC Voltage
Range 600.0 V
Accuracy 1.5% ± 5 digits
DC Voltage
Range 600.0 V
Accuracy 1.0% ± 5 digits
Resistance
Range 400.0 Ω/4000 Ω/40.00 kΩ
Accuracy 1.0% ± 5 digits
General Specifications
Continuity ≤30 Ω
Capacitance 100.0 to 1000 µF
Frequency 5.0 to 500.0 Hz
AC Response True RMS
Backlight Yes
Data Hold Yes
Contact Temperature 14 to 752°F (-10 to 400°C)
Min/Max Yes
Dimensions 8.1 x 2.9 x 1.3" (207 x 75 x 34 mm)
Weight 0.6 lb (283 g)
Category Rating CAT III 600 V
CAT IV 300 V
Click here for complete specifications on the Fluke 325

What's included with the Fluke 325

  • Multimeter
  • Test Leads
  • Carrying Case
  • User Manual
  • Two-Year Warranty
1

Does your clamp report the true-rms reading? Is the problem with your motor or your clamp?

Choose a clamp that gives accurate and repeatable results.

Make sure your clamp meter is working for you, not against you.

Imagine that you have spent the whole day troubleshooting a problem with a motor only to discover that the problem wasn’t really the motor, but the clamp you were using to measure it. You stake your reputation on your ability to get the job done, be sure your clamp meter is working for you not against you.

First, make sure your clamp meter reports the true-rms reading. Otherwise noise from everything including a variable frequency drive to compact fluorescent bulbs can result in a less accurate reading.

Does your clamp report the true-rms reading? Is the problem with your motor or your clamp?


2

Have you ever dropped your clamp? Do you use your clamp outside? Ever used your clamp to pry apart wires?

Make sure the clamp meter works where you do.

If so, make sure you clamp can work where and how you do.

Making accurate and repeatable results in a laboratory is a good start. But you don’t always work in a clean and controlled environment. Before making a purchase, check whether the clamp is specified to work in the environment you do.

Be sure you don’t buy a clamp specified for indoor use only or with a minimum operating range warmer than 15 °F if you think you might need to make measurements outside. If the clamp isn’t designed for the outdoors the measurements you get might not be accurate.

Finally be sure the clamp you are using is rugged enough to continue to give reliable results after years of prying wires apart, drops from ladders and bouncing around the back of your truck.

Have you ever dropped your clamp? Do you use your clamp outside? Ever used your clamp to pry apart wires?


3

Does the clamp have the correct rating for the work you are doing? Can you use the meter easily when wearing personal protective equipment?

Don’t compromise on safety.

If the answer is no, you could be in danger.

Your test and measurement tools are a critical barrier between you and danger. They are quite literally an extension of your body into a very dangerous environment. First things first, be sure you choose a clamp meter with an appropriate category rating for the work you are doing.

Second, choose a brand with a reputation for providing safe and reliable test equipment. Anyone can buy a clamp meter and put their brand on it. Only a few manufacturers design, build and test their own equipment to exceed international safety standards.

Finally, your clamp meter is part of a safety system that includes personal protective equipment (PPE). In addition to having the right PPE, be sure that you can easily operate your test and measurement equipment with that gear in place.

Does the clamp have the correct rating for the work you are doing? Can you use the meter easily when wearing personal protective equipment?


4

Not using all the features on your clamp meter?

When choosing features, pick quality over quantity.

Not using all the features on your clamp meter?

These days you can get almost anything built into a clamp meter (tape measure anyone?). The more gadgets that are built into a clamp meter, the harder it becomes to use and the worse it performs. Instead of trying to get the most features possible, chose a meter that has the measurement functions you need to get the job done, without any of fluff that doesn’t make sense. Plus, you don’t end up paying for features irrelevant to the job at hand.

Not using all the features on your clamp meter?

Click on a category to view a selection of compatible accessories with the Fluke 325 True RMS Clamp Meter, AC/DC.

Fluke C43 Soft Carrying Case C43
Zippered carrying case with durable vinyl exterior. The C43 case can be used with the 1520 tester, One-touch network analysers, 40 Series power meters, i1100s and i1300s large clamp meters.




Fluke C550 Premium Tool Bag C550
Tool Bag with steel reinforced frame.




Fluke TL223 SureGrip™ Electrical Test Lead Set TL223
Designed for your comfort so you can focus on taking accurate measurements, this handy all-in-one kit comes equipped with a SureGrip alligator clip set, slim-reach test probes (flat bladed), and SureGrip silicone test lead set.
