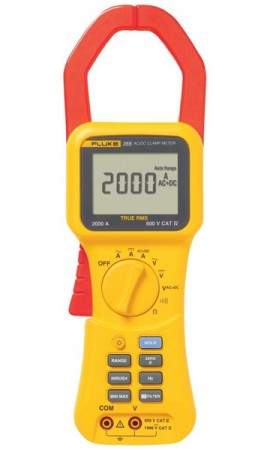

Fluke 355 True RMS Clamp Meter, 2000 A

Model: 355 | UPC: 095969401203

Fluke 355 True RMS Clamp Meter, 2000 A-


Downloads: datasheet manual

Fluke 355 True RMS Clamp Meter, 2000 A

Model: 355

Confidently take reliable readings with this clamp meter. This unit easily clamps around large conductors that are commonly found in high-current applications due to its extra-large jaw clamp. Additionally, this also measures voltage and resistance.

Confidently take reliable readings with this clamp meter. This unit easily clamps around large conductors that are commonly found in high-current applications due to its extra-large jaw clamp. Additionally, this also measures voltage and resistance.

Sale Price $854.99 USD
Regular Price $949.99 USD
Availability 1 to 2 Weeks
Quantity

Add In-House Traceable Calibration to your 355

Add In-House Traceable Calibration to your 355


Fluke 355 Offers

Versatile and rugged tools for applications with high currents

Take reliable readings with this True RMS clamp meter confidently. Ideal for high-current measurements up to 2000 A, this clamp meter features an extra-wide jaw easily clamps around large conductors typically found in high-current applications. With a rugged design and CAT IV 600 V, CAT III 1000 V ratings provide an extra element of protection when taking high-powered measurements.

Accurate peak measurements can be taken using the in-rush current mode, ideal for motors and inductive loads. Also, it measures voltage and resistance, making this tool ideal for utilities, electrical contractors, and industrial service technicians.

Features

  • Reliably handle a wide range of high-current applications with 2000A AC/DC True-RMS, 1400A AC, and 2000A DC
  • The large 58mm (2.3") jaw capacity is suitable for large or multiple conductors
  • CAT IV 600 V, CAT III 1000 V rating for added user protection
  • In-rush current measurement captures "power-on" surge current with Accuracy and repeatability
  • High voltage measurement of 1000 V AC + DC True RMS, 600 V AC, and 1000 V DC allows users to perform multiple tests with only one tool
  • Resistance to 400 kW coupled with a continuity beeper, provide the convenience of a multimeter
  • Accurately measure frequency up to 1kHz for optimum troubleshooting
  • Quickly analyze readings using the MIN, MAX, and AVG functions
  • A large backlit display allows for easy visibility in low-lit areas
  • Use the display hold feature to capture readings even when the display cannot be viewed
  • Use the low-pass filter to smooth out noisy loads and stabilize readings

Applications

  • Industrial and utility
  • High-current
Fluke Clamp Selection Guide

Fluke 355 Specifications

Current Measurement DC and AC 10 to 100 Hz
Range 40 A/400 A/2000 A/1400 AC RMS
Resolution 10 mA/100 mA/1 A
Accuracy A: 1.5% rdg + 15 digits
A: 1.5% rdg + 5 digits
Trigger Level for Inrush 0.50 A/5.0 A/5 A
Trigger Level for Hz Filter OFF 2.50 A/2.5 A/8 A
Trigger Level for Hz Filter ON 0.50 A/2.5 A/8 A
Crest Factor (50/60 Hz)
Range 40 A/400 A/2000 A/1400 AC RMS
Crest Factor 2 at 33 A, 2.4 at 27 A
2 at 330 A, 2.4 at 270 A
2 at 1000 A, 2.4 at 833 A
Current Measurement AC 100.1 Hz to 1 kHz
Range 40 A/400 A/2000 A; 1400 AC RMS
Resolution 10 mA/100 mA/1 A
Accuracy 10 A: 3.5% rdg + 15 digits
10 A: 3.5% rdg + 5 digits
Trigger Level for Inrush 0.50 A/5.0 A/5 A
Trigger Level for Hz Filter OFF 2.50 A/2.5 A/8 A
Trigger Level for Hz Filter ON 0.50 A/2.5 A/8 A
Voltage Measurement DC and AC 10 to 100 Hz (600 and 1000 V ranges have 10% over range to 660 and 1100 V respectively)
Range 4 V/40 V/400 V/600 V AC RMS/1000 VDC
Resolution 1 mV/10 mV/100 mV/1 V
Accuracy 1% rdg + 10 digits
1% rdg + 5 digits
Trigger Level for Hz Filter OFF 0.25 V/6 V
Trigger Level for Hz Filter ON 0.25 V/6 V
Voltage measurement AC 100.1 Hz to 1 kHz (600 and 1000 V ranges have 10% over range to 660 and 1100 V respectively)
Range 4 V/40 V/400 V/600 V AC RMS/1000 VDC
Resolution 1 mV/10 mV/100 mV/1 V
Accuracy 3% rdg + 10 digits
3% rdg + 5 digits
Trigger Level for Hz Filter OFF 0.050 V/0.25 V/6 V
Trigger Level for Hz Filter ON 0.050 V/0.25 V /6 V
Ohms Measurement
Range 4 kΩ/40 kΩ/400 kΩ
Resolution 0.1 Ω/ 1 Ω/ 10 Ω/ 100 Ω
Accuracy 1.5% + 5 digits
Continuity Beeper
On and Off On at ≤ 30 Ω
Off at > 100 Ω
Frequency Measurement
Measurement Range 5.0 Hz to 1 kHz
Resolution 0.1 Hz (15 Hz to 399.9 Hz)
1 Hz (400 Hz to 1 kHz)
Accuracy 5.0 to 100 Hz: 0.2% + 2 counts
100.1 Hz to 1 kHz: 0.5% + 5 counts
Environmental Specifications
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity 0 to 95% (non-condensing)
Operating Altitude 6561.68' (2000 m)
Storage Altitude 32,808.4' (10,000 m)
IP Rating 42 (indoor use only)
Drop Test Requirements 3.28' (1 m)
EMI, RFI, EMC FCC part 15, IEC/EN 61326-1:1997 class B IEC/EN 61326:1997 3V/m, performance criteria B, EN61325
Temperature Coefficients Current: 0.1% of reading per °C outside 22 to 24°C
Voltage: 0.1% of reading per °C outside 22 to 24°C
General Specifications
Battery Type: 6 x 1.5 V AA NEDA 15 A or IEC LR6
Life: 100 hours
Test Leads Rated to 1000 V
Jaw Size 2.28" (58 mm)
Dimensions 12 x 3.75 x 2" (300 x 98 x 52 mm)
Weight 1.8 lbs (0.814 kg)
Safety Rating IEC 61010-2-032, 600 V CAT IV, 1000 V CAT III
Click here for complete specifications on the Fluke 355

What's included with the Fluke 355

  • Clamp Meter
  • 4.9' (1.5 m) Silicone Rubber Test Leads
  • Test Probes
  • Alligator Clips
  • Carrying Case
  • 6 x AA Batteries
  • Users Manual
  • 3-Year Warranty

Click on a category to view a selection of compatible accessories with the Fluke 355 True RMS Clamp Meter, 2000 A.

Fluke AC220 SureGrip™ Alligator Clips AC220
Designed to improve steadiness with rubber overmolded surfaces and finger-hugging curves. For use with TL222 and TL224 test leads.




Fluke TLK-220 US SureGrip™ Industrial Test Lead Kit TLK-220
A handy all-in-one kit that is ideal for industrial applications. Additionally, this test lead kit comes equipped with AC220 SureGrip alligator clip set, AC285 SureGrip large jaw alligator clip set, TP220 sharp test probes, TL224 SureGrip silicone right to straight test leads, and a carrying case.




Fluke TP220 SureGrip™ Industrial Test Probes TP220
For use with the TL222 and TL224. Additionally, these industrial test probes feature 0.5" (12 mm) stainless steel tips that provide reliable contact and flexible finger barrier, which improves grip.




Fluke TLK291 Fused Test Probe Set TLK291
Compatible with a variety of Fluke multimeters and test leads, this fused test probe set provides firm and secure contact.




Fluke AC285 SureGrip™ Alligator Clips AC285
Designed to improve steadiness in slippery hands, and is for use with TL222 and TL224 test leads. Rubber over-molded surfaces and finger-hugging curves give a comfortable, reliable grip so you can focus on making an accurate measurement.




Fluke C43 Soft Carrying Case C43
Zippered carrying case with durable vinyl exterior. The C43 case can be used with the 1520 tester, One-touch network analysers, 40 Series power meters, i1100s and i1300s large clamp meters.




Fluke TL224 SureGrip™ Silicone Insulated Test Leads TL224
These insulated test leads provide the convenience and variety for test lead configurations by attaching clips, hooks and grabbers as needed.




Fluke TP2 Slim Reach Test Probe Set TP2
Ideal for probing closely spaced or recessed terminals, this slim reach test probe set also features hard stainless steel probe tips.
