Fluke 373 True RMS AC Clamp Meter, 600 A

Model: 373 | UPC: 095969557832

Fluke 373 True RMS AC Clamp Meter, 600 A-


Downloads: datasheet manual

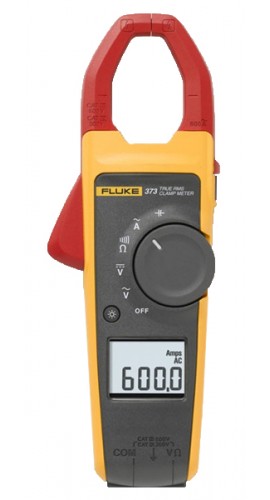

Fluke 373 True RMS AC Clamp Meter, 600 A

Model: 373

Ideal for many AC only current measurement situations, this True RMS AC clamp meter measures up to 600 A AC and 600 V ac or DC. This unit automatically sets the right measurement range depending on the present voltage when you power up. It can as well measure DC voltage of up to 600 V and resistance up to 6000 Ω.

Ideal for many AC only current measurement situations, this True RMS AC clamp meter measures up to 600 A AC and 600 V ac or DC. This unit automatically sets the right measurement range depending on the present voltage when you power up. It can as well measure DC voltage of up to 600 V and resistance up to 6000 Ω.

Sale Price $224.99 USD
Regular Price $249.99 USD
Availability 2 to 3 Weeks
Quantity

Add In-House Traceable Calibration to your 373

Add In-House Traceable Calibration to your 373


Fluke 373 Offers

True RMS AC Clamp Meter does the job for any AC-only current measurement application

Ideal for AC-only current measurement situations, this clamp meter features True RMS AC voltage and current measurements. This unit allows you to measure AC current of up to 600 A, AC voltage up to 600V, DC voltage up to 600 V, and resistance to 6000 Ω.

To simplify the usage, it features a large, easy-to-read backlit display, which provides better visibility in dimly lit conditions. Additionally, this meter automatically sets the proper measurement range based on the present voltage when you power it up, so you don't have to move the switch while taking the measurement.

Features

  • State of the art signal processing allows for use in noisy electrical environments while providing stable readings
  • Large, easy to read, backlight display automatically sets the correct measurement range so you do not need to change switch positions while taking a measurement
  • CAT IV 300 V, CAT III 600 V safety rating

Measurement capability

  • 600 A AC current measurement with fixed jaw
  • 600 V AC and DC voltage measurement
  • True RMS AC voltage and current for accurate measurements on non-linear signals
  • Resistance measurement to 6000 Ω with continuity detection
  • 1000 µF capacitance measurement

Applications

  • AC-only current measurement
Fluke Clamp Selection Guide

Fluke 373 Specifications

AC Current
Range 600.0 A
Resolution 0.1 A
Accuracy 2% ± 5 digits (48 to 62 Hz)
Crest Factor (50/60 Hz) 2.5 at 600 A
AC Voltage
Range 600.0 V
Resolution 0.1 V
Accuracy 1.0% ± 5 digits (48 to 62 Hz)
DC Voltage
Range 600.0 V
Resolution 0.1 V
Accuracy 1% ± 5 digits
Resistance
Range 600.0/6000 Ω
Resolution 0.1/1 Ω
Accuracy 1% ± 5 digits
Continuity Beeper 30 Ω
Capacitance
Range 10.0 to 100.0 μF/1000 μF
Resolution 0.1/1 μF
Accuracy 1.9% ± 2 digits
Environmental Specifications
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -40 to 140°F (-40 to 60°C)
Operating Humidity Non condensing at 50°F (<10°C)
≤90% RH at 50 to 86°F (10 to 30°C)
≤75% RH at 86 to 104°F (30 to 40°C)
≤45% RH at 104 to 122°F (40 to 50°C)
(Without condensation)
Operating Altitude 9842.52' (3000 m)
Storage Altitude 39,370.1' (12,000 m)
EMI, EMC Meets all applicable requirements in EN61326-1:2006
Temperature Coefficients Add 0.1 x specified accuracy for each °C above 28°C or below 18°C
Safety Compliance ANSI/ISA S82.02.01:2004
CAN/CSA-C22.2 No. 61010-1-04
IEC/EN 61010-1:2001, 600V CAT III, 300V CAT IV
Pollution Degree 2
EN/IEC 61010-2-32:2002
EN/IEC 61010-031:2002/A1:2008
General Specifications
Batteries 2 x AA
NEDA 15 A
IEC LR6
Dimensions 9.1 x 3.35 x 1.8" (232 x 85 x 45 mm)
Weight 0.82 lbs (370 g)
Click here for complete specifications on the Fluke 373

What's included with the Fluke 373

  • Clamp Meter
  • Test Leads
  • Carrying Case
  • 5 x AA Alkaline Batteries
  • Coated Instruction Card
  • Safety Information Sheet
  • Users Manual

Click on a category to view a selection of compatible accessories with the Fluke 373 True RMS AC Clamp Meter, 600 A.

Fluke AC220 SureGrip™ Alligator Clips AC220
Designed to improve steadiness with rubber overmolded surfaces and finger-hugging curves. For use with TL222 and TL224 test leads.




Fluke AC89 Heavy Duty Insulation Piercing Test Clip AC89
Single probe pierces 0.01 to 0.6" (0.25 to 1.5 mm) insulated wire with a small pin allows self-healing of the insulation, and 1000 V, 10 A maximum.




Fluke AC87 Heavy Duty Bus Bar Clip Set AC87
Comes equipped with one pair (red, black) of flat, right angle design for connecting to bus bars, and CAT III 600 V, 5 A rating, CSA listed. Adjustable collar provides two ranges of jaw openings up to 1.81" (30 mm).




Fluke LVD1A Volt Light LVD1A
Handy Fluke Volt Light compact LED flash-lights with built-in color responsive AC non-contact voltage detector.




Fluke L206 Deluxe LED Hat Light L206
Three super bright white LEDs never burn out attach to hard hat, baseball cap, or panel door.




Fluke TP1 Slim Reach Test Probe Set TP1
Features hard stainless steel probe tips and one pair of slender probe bodies, which is ideal for probing closely spaced or recessed terminals. Additionally, it comes in a flat blade design to hold securely in blade type electrical wall sockets.




Fluke TL75 Hard Point™ Test Lead Set TL75
Offers the convenience of a test lead and probe-in-one unit with a variety of connections. One pair (red, black) comfort grip probe with PVC insulated right angel shrouded 0.16" (4 mm) banana plugs.




Fluke TL220 Suregrip Industrial Test Lead Set TL220
Includes the Fluke AC220, Fluke TP220, and Fluke TL224.




Fluke TL175 TwistGuard Test Leads Set TL175
By simply twisting the test lead the user can change the exposed probe tip length from 19 mm to 4 mm (0.75 inch to 0.16 inch).




Fluke C550 Premium Tool Bag C550
Tool Bag with steel reinforced frame.
