Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex

Model: 376 FC | Order No: 376FC | UPC: 095969798396

Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex-


Downloads: datasheet manual

Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex

Model: 376 FC | Order No: 376FC

Ideal for a wide range of current measurement situations, this True RMS clamp meter also comes equipped with the iFlex™ flexible current probe which increases flexibility and measures awkward sized conductors. Additionally, this tool can read up to 1000 V and 1000 A in both ac and dc modes.

Ideal for a wide range of current measurement situations, this True RMS clamp meter also comes equipped with the iFlex™ flexible current probe which increases flexibility and measures awkward sized conductors. Additionally, this tool can read up to 1000 V and 1000 A in both ac and dc modes.

Sale Price $431.99 USD
Regular Price $479.99 USD
Availability 21 in Stock
Quantity

Add In-House Traceable Calibration to your 376 FC

Add In-House Traceable Calibration to your 376 FC


Fluke 376 FC Offers

Offers improved performance ideal for a various range of current measurement situations and comes supplied with True RMS ac voltage and current measurements, this tool can read up to 1000 V and 1000 A in both ac and dc modes. Additionally, this instrument includes the iFlex™ flexible current probe which expands the measurement range to 2500 A ac while enabling increased display flexibility, the ability to measure around awkward sized conductors, and improved wire access.

Features

  • iFlex™ flexible current probe expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access
  • CAT IV 600 V, CAT III 1000 V safety rating
  • Integrated VFD low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings
  • Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
  • Ergonomic design fits in your hand and can be used while wearing personal protective equipment
  • Large, easy to read, backlight display automatically sets the correct measurement range so you do not need to change switch positions while taking a measurement
  • Connect your meter to your smartphone with Fluke Connect Measurements
  • Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
  • Record results directly to your phone and the Cloud
  • Capture intermittent faults while performing other tasks using the logging capabilities
  • Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls
  • Log and trend measurements to pinpoint intermittent faults
  • Transmit results wirelessly via Fluke Connect® Measurements app

Measurement capability

  • 1000 A ac and dc current measurement with fixed jaw
  • 2500 A ac current measurement with iFlex™ flexible current probe
  • 1000 V ac and dc voltage measurement
  • True Rms ac voltage and current for accurate measurements on non-linear signals
  • Frequency measurement to 500 Hz with both jaw and iFlex™
  • 60 kΩ resistance measurement with continuity detection
  • Min, max, average and inrush recording to capture variations automatically
  • 500 mV dc measurement range to interface with other accessories
  • 1000 µF capacitance measurement
Fluke Clamp Selection Guide

Fluke 376 FC Specifications

AC Current via Jaw
Range 999.9 A
Resolution 0.1 A
Accuracy 2% ± 5 digits
AC Current via iFlex™
Range 2500 A
Resolution 0.1 A
Accuracy 3% ± 5 digits
DC Current
Range 999.9 A
Resolution 0.1 A
Accuracy 2% ± 5 digits
AC Voltage
Range 1000 V
Resolution 0.1 V
Accuracy 1.5% ± 5 digits
DC Voltage
Range 1000 V
Resolution 0.1 mV
Accuracy 1% ± 5 digits
Resistance
Range 60,000 Ω
Resolution 0.1 Ω
Accuracy 1% ± 5 digits
Frequency
Range 500 Hz
Resolution 0.1 Hz
Accuracy 0.5% ± 5 digits
Capacitance
Range 1000 µF
Resolution 1 µF
Accuracy 1% ± 4 digits
Mechanical Specifications
Wire Capacity 750 MCM or 2 to 500 MCM
Safety Rating CAT III 1000 V, CAT IV 600 V
Click here for complete specifications on the Fluke 376 FC

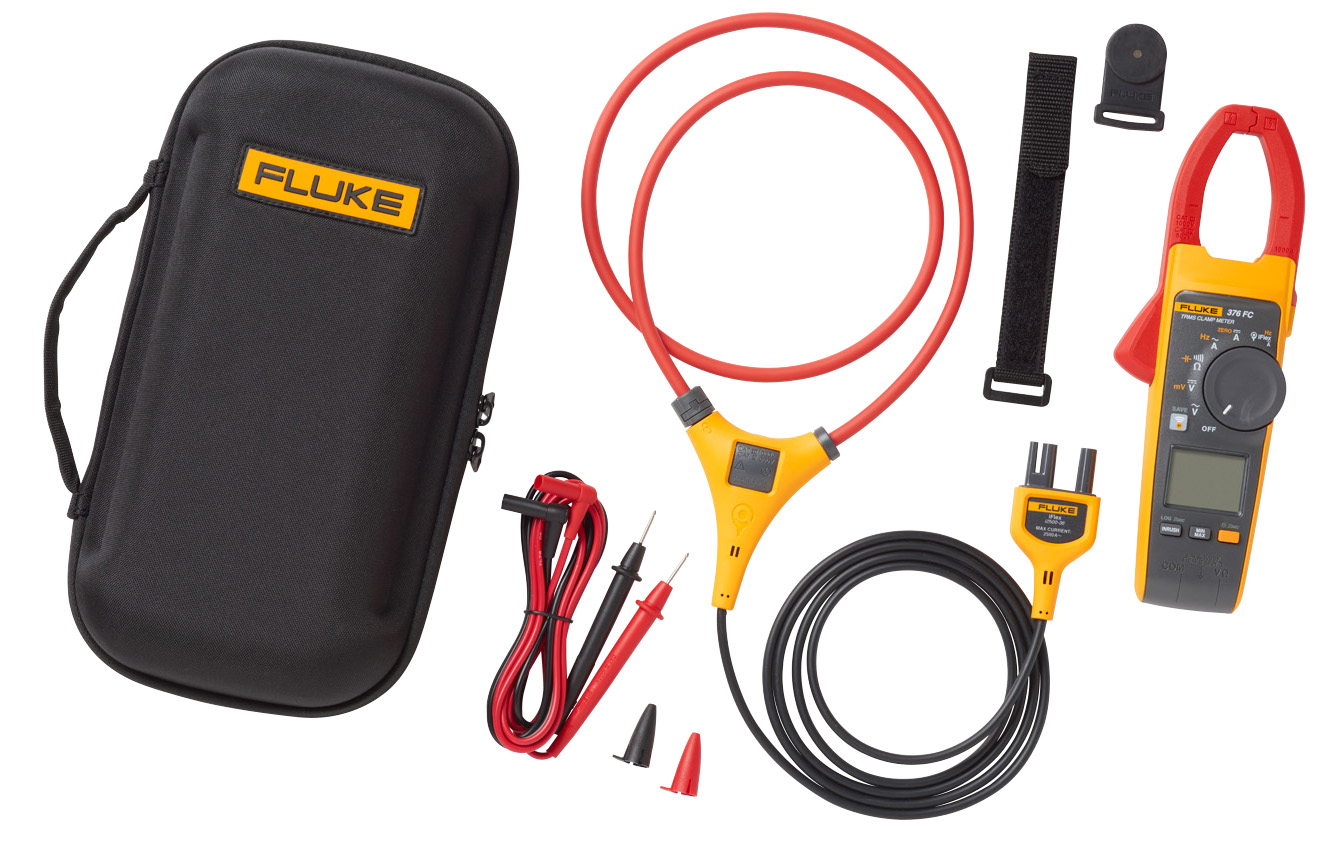

What's included with the Fluke 376 FC

  • Clamp Meter
  • 18" iFlex® Flexible Current Probe
  • TL75 Test Leads
  • TPAK Magnetic Hanging Strap
  • Carrying Case
  • 2 x AA Alkaline Batteries
  • Coated Instruction Card
  • Safety Information Sheet
  • Three-Year Warranty
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements

Fluke 376 TRMS AC/DC Clamp Meter with iFlex Flexible Current Probe: Overview


This video will demonstrate how the iFlex flexible current probe can expand the capabilities of this TRMS AC/DC clamp meter. Additionally, users can measure this instrument is compatible with the Fluke Connect app as well.

How to Select a Fluke Clamp Meter


In this video, the user will receive tips on how to select the right clamp meter. Additionally, clamp meters help plant maintenance, process technicians, electricians and utility maintenance professionals alike to conduct troubleshooting and general maintenance in a wide variety of applications.

Getting to know the Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex


This video will serve as an overview of the Fluke 376 FC True RMS AC/DC Clamp Meter. The iFlex™ current probe can expand the capabilities of the clamp meter by getting into hard-to-reach places.

Click on a category to view a selection of compatible accessories with the Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex.

Fluke AC220 SureGrip™ Alligator Clips AC220
Designed to improve steadiness with rubber overmolded surfaces and finger-hugging curves. For use with TL222 and TL224 test leads.




Fluke AC87 Heavy Duty Bus Bar Clip Set AC87
Comes equipped with one pair (red, black) of flat, right angle design for connecting to bus bars, and CAT III 600 V, 5 A rating, CSA listed. Adjustable collar provides two ranges of jaw openings up to 1.81" (30 mm).




Fluke AC89 Heavy Duty Insulation Piercing Test Clip AC89
Single probe pierces 0.01 to 0.6" (0.25 to 1.5 mm) insulated wire with a small pin allows self-healing of the insulation, and 1000 V, 10 A maximum.




Fluke TL75 Hard Point™ Test Lead Set TL75
Offers the convenience of a test lead and probe-in-one unit with a variety of connections. One pair (red, black) comfort grip probe with PVC insulated right angel shrouded 0.16" (4 mm) banana plugs.




Fluke TP1 Slim Reach Test Probe Set TP1
Features hard stainless steel probe tips and one pair of slender probe bodies, which is ideal for probing closely spaced or recessed terminals. Additionally, it comes in a flat blade design to hold securely in blade type electrical wall sockets.




Fluke C550 Premium Tool Bag C550
Tool Bag with steel reinforced frame.




Fluke L206 Deluxe LED Hat Light L206
Three super bright white LEDs never burn out attach to hard hat, baseball cap, or panel door.




Fluke LVD1A Volt Light LVD1A
Handy Fluke Volt Light compact LED flash-lights with built-in color responsive AC non-contact voltage detector.
