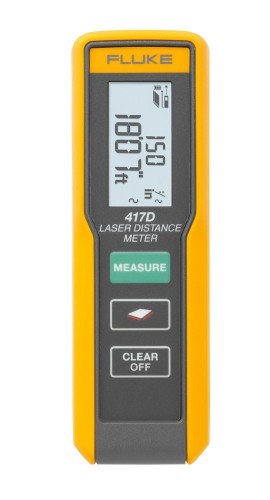

Fluke 417D Laser Distance Meter

Model: 417D | UPC: 095969912860

Fluke 417D Laser Distance Meter-


Downloads: datasheet

Fluke 417D Laser Distance Meter

Model: 417D

Features a simple design and easy one-button operation to minimize the time measuring while maximizing the reliability of the measurements you need. Offers three different measurement tasks, an extra bright laser that is visible, large 2-line illuminated LCD screen, and three-buttons for one-handed measurements.

Features a simple design and easy one-button operation to minimize the time measuring while maximizing the reliability of the measurements you need. Offers three different measurement tasks, an extra bright laser that is visible, large 2-line illuminated LCD screen, and three-buttons for one-handed measurements.

Your Price $109.99 USD
Availability 3 in Stock
Quantity

Add In-House Traceable Calibration to your 417D

Add In-House Traceable Calibration to your 417D


Fluke 417D Offers

Accurate, durable, and easy to use - just point and shoot.

Designed for indoor and outdoor applications, and operates with the durability and quality you expect. With simple function buttons, three different measurement tasks can be completed quickly and easily. The extra bright laser is clearly visible, so you can always see your targeting point even if the target object is in a hard-to-reach spot, or at a long distance. It has a large 2-line illuminated LCD screen and three-buttons for easy-to-use one-handed measurements.

Features

  • Measures up to 131' (40 m) with accuracy of 0.08" (2 mm)
  • Instant distance measurement with one-button operation
  • Great for interior and exterior applications
  • Improved visibility with backlit screen
  • Easy targeting with bright laser
  • Quick calculation of area (square footage)
  • Continuous measurement capable
  • Improved battery life from automatic shut-off feature
  • Battery life of 3000 measurements
  • 2-line illuminated display
  • Ultra-portable
  • 1-meter drop tested
  • IP54 dust and water resistant

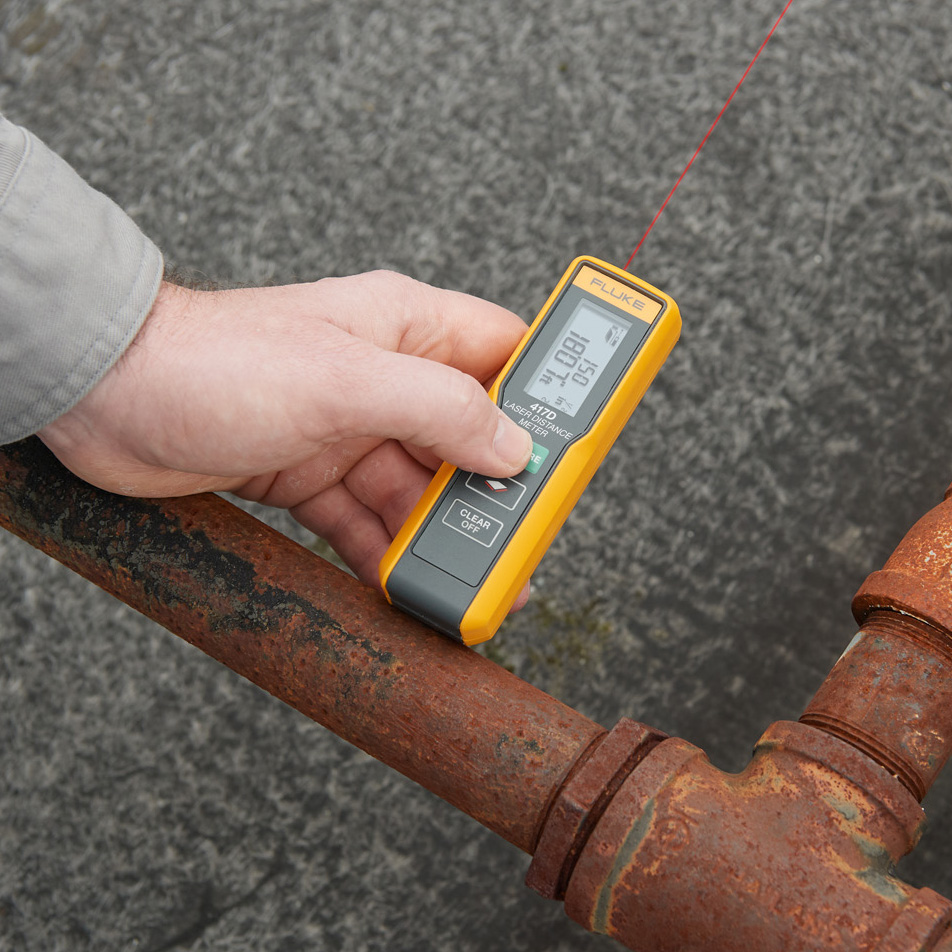

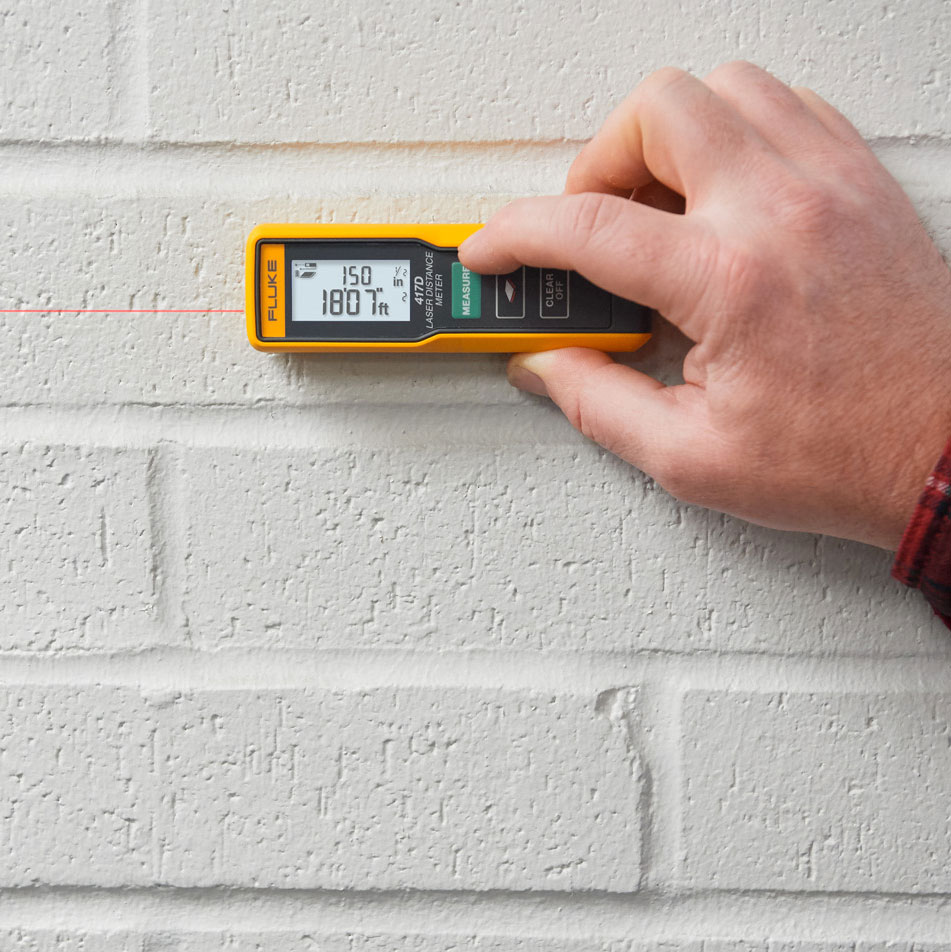

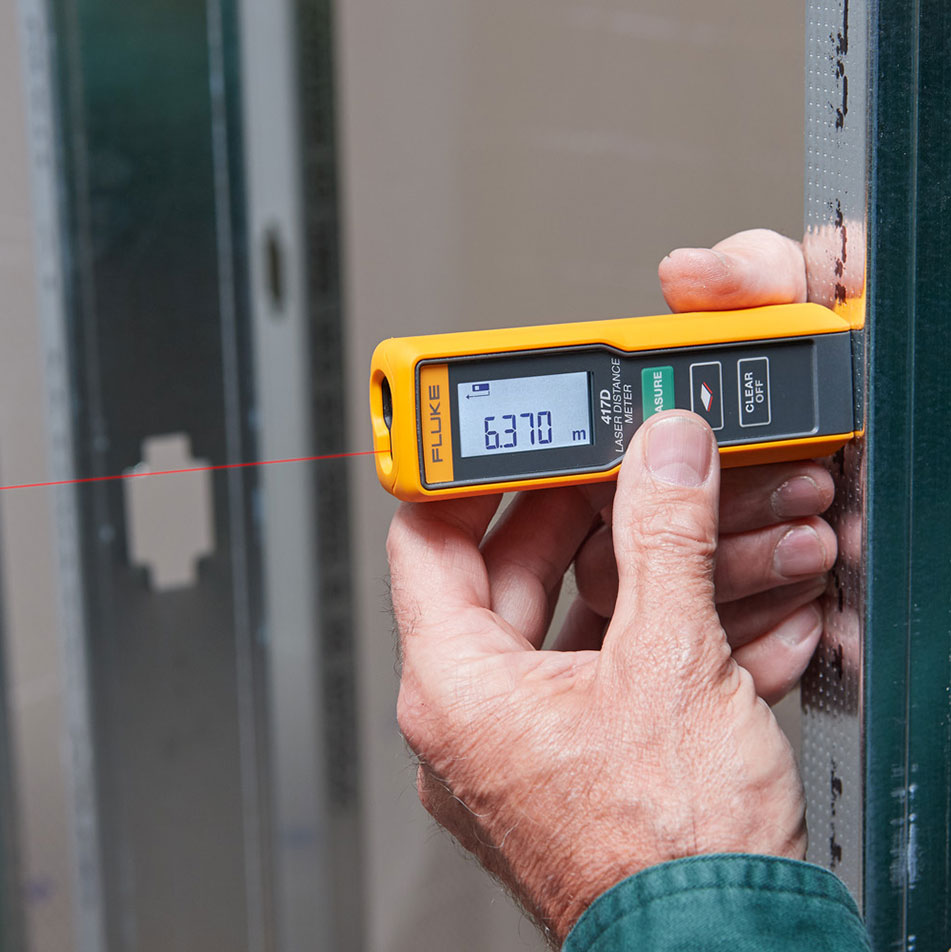

Applications

  • Indoor/exterior

Fluke 417D Specifications

Typical Range 0.6 to 131' (0.2 to 40 m)
Typical Measuring Tolerance ±0.06" (2.0 mm ± 1.5 mm)
Maximum Measuring Tolerance ±0.12" (3.0 mm)
Accuracy up to 10 m (±) ±2 mm
Display 2 line/1 mm/1/32"
Laser Point at Distance 6/30/60 mm (10/40/100 m)
Units Setting
(Smallest Units Displayed)
0,000 m, 0' 00" 1/32, 0" 1/32
Auto Laser Switch Off 90 sec
Auto Power Switch Off 180 sec
Laser Class: II
Type: 635 nm, <1 mW
Protection Class IP54
Battery Type: 2 x AAA 1.5 V NEDA 24A/IEC LR03
Life: Up to 3000 measurements
Drop Test 3.28' (1 m)
Temperature Range Storage: -13 to 158°F (-25 to 70°C)
Operating: 14 to 122°F (-10 to 50°C)
Maximum Relative Humidity 85% @ 20 to 120°F (-7 to 50°C)
Safety CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1 (2nd Edition), ISA-82.02.01, IEC Standard No. 61010-1:2001, EN60825-1:2007 (Class II)
EMC 61326-1:2006
Dimensions 4.68 x 1.49 x 1.02" (11.9 x 3.8 x 2.6 cm)
Weight 3.35 oz (95 g)
Click here for complete specifications on the Fluke 417D

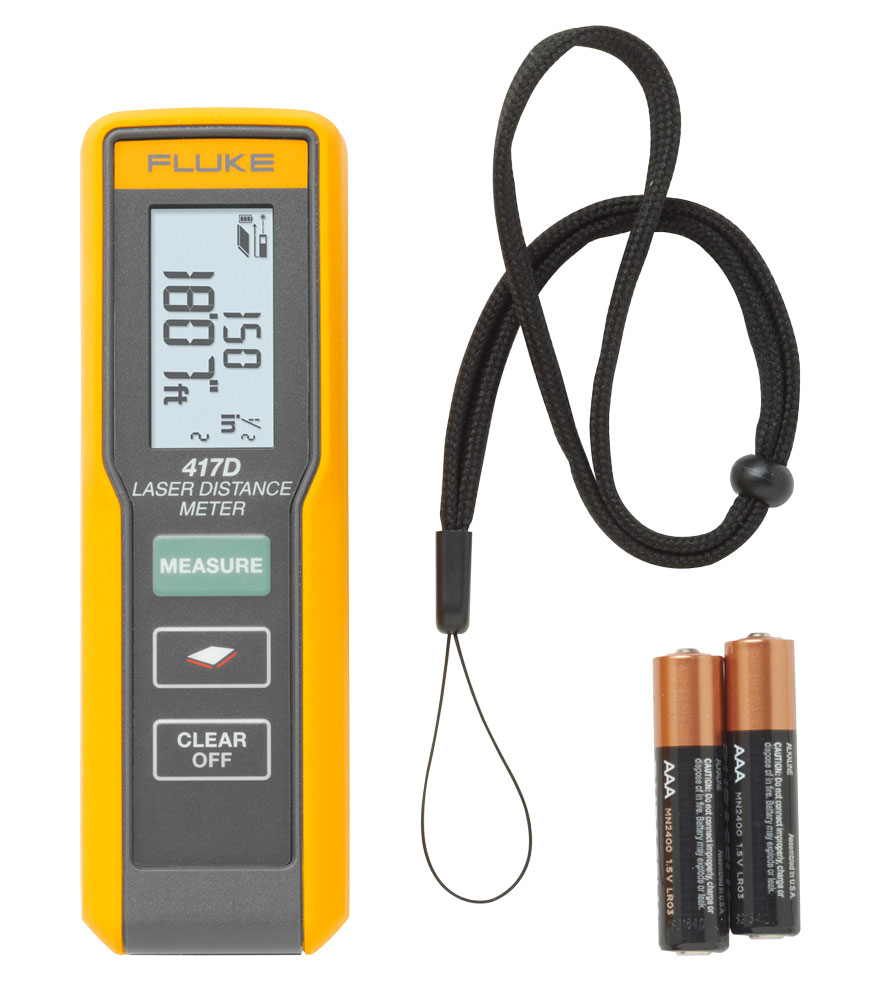

What's included with the Fluke 417D

  • Laser Distance Meter
  • Lanyard
  • 2 x AAA Batteries
  • User's Manual
  • Quick Reference Guide
  • Three-Year Warranty
