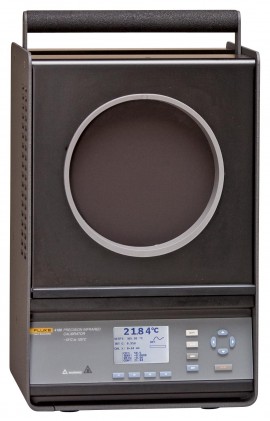

Fluke 4180-156 115V Infrared Temperature Calibrator

Model: 4180-156 | UPC: 95969441087

Fluke 4180-156 115V Infrared Temperature Calibrator-

Fluke 4180-156 115V Infrared Temperature Calibrator

Model: 4180-156

Provides calibration accuracy and traceability for infrared thermometers and thermal imagers.

Provides calibration accuracy and traceability for infrared thermometers and thermal imagers.

Your Price $9821.00 USD
Availability 7 to 8 Weeks
Quantity

The Fluke 4180-156 Offers

Features:

  • Large target Dimensions of 152mm (6") captures "peripheral vision" of infrared thermometers and minimizes
  • Dimensions of source effect errors
  • Compensates for errors caused by individual infrared thermometer emissivity settings
  • Sample calibration procedures for Fluke and Raytek thermometers 3are built right in
  • Accuracy as good as ±0.35°C
  • Test Uncertainty Ratios (TUR) as good as 4:1
  • Excellent stability and uniformity
  • Reaches temperature setpoint quickly
  • Intuitive, easy-to-read display that indicates when temperature is stable

Functional Specifications

  • Display accuracy: ± 0.40 °C at –15 °C; ± 0.40 °C at 0 °C; ± 0.50 °C at 50 °C; ± 0.50 °C at 100 °C; ± 0.55 °C at 120 °C
  • Stability: ± 0.10 °C at –15 °C; ± 0.05 °C at 0 °C; ± 0.10 °C at 120 °C
  • Uniformity (5.0 in dia of center of target): ± 0.15 °C at –15 °C; ± 0.10 °C at 0 °C; ± 0.25 °C at 120 °C
  • Uniformity (2.0 in dia of center of target): ± 0.10 °C at -15 °C; ± 0.10 °C at 0 °C; ± 0.20 °C at 120 °C
  • Heating time: 15 min: –15 °C to 120 °C; 14 min: 23 °C to 120 °C
  • Cooling time: 15 min: 120 °C to 23 °C; 20 min: 23 °C to –15 °C

General Specifications

  • Dimensions (HxWxD): 356 mm x 241 mm x 216 mm (14 in x 9.5 in x 8.5 in)
  • Weight: 9.1 kg (20 lb)
  • Safety: EN 61010-1:2001, CAN/CSA C22.2 No.61010.1-04
  • Target diameter: 152.4 mm (6 in)
  • Computer interface: RS-232

What's included with the Fluke 4180-156

  • Fluke 4180-156 115V Infrared Temperature Calibrator
  • Click on a category to view a selection of compatible accessories with the Fluke 4180-156 115V Infrared Temperature Calibrator.

    Fluke 4180-CASE Carrying Case for the Fluke 4180 and 4181 4180-CASE
    Rugged carrying case designed specifically for use with the Fluke 4180/4181 precision infrared thermometers.




    Fluke 4180-APRT Aperture 50mm 4180-APRT
    Many radiometers require the use of an aperture to reduce the effect of scatter. This is a simple-to-use, 2-inch non-water cooled aperture designed for use with the 4180 or 4181 Precision Infrared Calibrators.




    Fluke 4180-DCAS Carrying Case for Infrared Calibrator 4180-DCAS
    Wheeled carrying case is lightweight and features recessed steel handles and latches with foam lined for impact protection.
