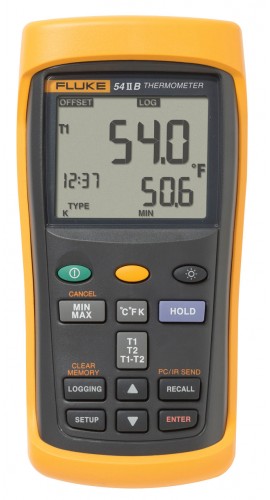

Fluke 54-2-B Dual Input Digital Thermometer with data logging

Model: 54-II-B | Order No: 54-2-B | UPC: 95969565110

Fluke 54-2-B Dual Input Digital Thermometer with data logging-


Downloads: datasheet manual

Fluke 54-2-B Dual Input Digital Thermometer with data logging

Model: 54-II-B | Order No: 54-2-B

Measure contact temperature on motors, insulation, breakers, pipes, corroded connections, liquids, and wires with industrial standard J, K, T, E, N, R, or S-type thermocouple temperature sensors. Additionally, this dual input digital thermometer logs up to 500 points of data with user adjustable recording intervals.

Measure contact temperature on motors, insulation, breakers, pipes, corroded connections, liquids, and wires with industrial standard J, K, T, E, N, R, or S-type thermocouple temperature sensors. Additionally, this dual input digital thermometer logs up to 500 points of data with user adjustable recording intervals.

Sale Price $467.99 USD
Regular Price $519.99 USD
Availability 1 Day
Quantity

Add In-House Traceable Calibration to your 54-2-B

Add In-House Traceable Calibration to your 54-2-B


Fluke 54-II-B Offers

Features

  • Large backlit dual display shows any combination of T1, T2, plus MIN, MAX, or AVG
  • Recall function allows logged data to be easily reviewed on the meter display
  • Infrared USB communication port allows data to be exported to optional FlukeView Forms® Temperature PC software for further analysis and graphing
  • Data logging up to 500 points of data with user adjustable recording interval
  • Relative time clock on MIN, MAX, and AVG provides a time reference for major events
  • Electronic Offset function allows compensation of thermocouple errors to maximize overall accuracy
  • Measures J, K, T, E, R, S, and N-type thermocouples
  • Readout in °C, °F, or Kelvin (K)
  • Splash and dust resistant case protected by impact absorbing holster
  • User-friendly front panel is easy to set up and operate
  • Sleep mode increases battery life; typical 1000-hour battery life
  • Battery door allows easy battery replacement without breaking the calibration seal

Applications

  • Lab
  • QA
  • Process calibration
  • Food safety
  • HVAC/R

Fluke 54-II-B Specifications

Temperature Accuracy
Above -100°C J, K, T, and E-type: ±[0.05% + 0.3°C]
R and S-type: ±[0.05% + 0.4°C]
Below -100°C J, K, and E: ±[0.20% + 0.3°C]
T-type: ±[0.50% + 0.3°C]
Temperature
J-Type -346 to 2192°F (-210 to 1200°C)
K-Type -328 to 2501.6°F (-200 to 1372°C)
T-Type -418 to 752°F (-250 to 400°C)
E-Type -238 to 1832°F (-150 to 1000°C)
N-Type -328 to 2372°F (-200 to 1300°C)
R and S-Type 32 to 3212.6°F (0 to 1767°C)
Temperature Scale ITS-90
Applicable Standards NIST-175
Display Resolution 0.1°C, 0.1 K <1000
1°C, 1 K ≥1000
Environmental Specifications
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -40 to 140°F (-40 to 60°C)
Humidity (Without Condensation) 0 to 90%; 32 to 95°F (0 to 35°C)
0 to 70%; 32 to 122°F (0 to 50°C)
Mechanical and General Specifications
Batteries 3 x batteries
Typical 1000-hour life
Dimensions 6.8 x 3.4 x 1.5" (173 x 86 x 38 mm)
Weight 0.9 lbs (400 g)
Safety Specifications
Overvoltage Category CSA C22.2 No. 1010.1 1992; EN 61010 Amendments 1,2
Agency Approvals CE, CSA, TÜV (pending)
Click here for complete specifications on the Fluke 54-II-B

What's included with the Fluke 54-II-B

  • Thermometer
  • Holster
  • 2 x Bead Probe Thermocouple
  • Three-Year Warranty

Click on a category to view a selection of compatible accessories with the Fluke 54-2-B Dual Input Digital Thermometer with data logging.

Fluke 700TC2 Thermocouple Plug Kit 700TC2
7-Piece Thermocouple Mini-Plug Connector Kit.




Fluke 80PK-EXT Extension Wire Kit 80PK-EXT
Extension kit for type K thermocouple wires. Includes 3m of thermocouple wire and a pair of male/female mini-connectors.












Fluke C50 Meter Case C50
Case includes an inside pocket, belt loop and inside meter strap.








Fluke C550 Premium Tool Bag C550
Tool Bag with steel reinforced frame.




Fluke C101 Hard Carrying Case C101
Compatible with a vareity of Fluke industrial test tools. Additionally, this hard carrying case features a foam interior.




Fluke CXT170 CXT170
Rugged Pelican Hard Case for the Fluke 170 Series.




Fluke FlukeView Forms Software with cable (FVF-SC2) FVF-SC2
For use with the Fluke 180 Series, 789, 1550B, 1550C, 1555, 53-2-B, 54-2-B and 1653.




Fluke TPAK ToolPak Magnetic Meter Hanger ToolPak
Hang your meter in a variety of ways for convenient hands-free operation. Attaches to most Fluke meters.




Fluke 80PK-8 Pipe Clamp Temperature Probe 80PK-8
Uses Type-K thermocouple for fast temperature and superheat measurements of pipe surfaces. Designed to reliably measure the temperature of pipes ¼" (6 mm) to 1⅜" (35 mm) in diameter, at temperatures between -20 and 300°F (-29 and 149°C), while retaining a long service life.




Fluke 80PK-3A Surface Temperature Probe 80PK-3A
Compatible with any temperature measuring instrument that accepts type K thermocouples and features a miniature connector input. Additionally, this surface temperature probe is ideal for measuring the temperature of flat or slightly convex surfaces, with an exposed junction to allow direct contact with the surface being measured.




Fluke 80PK-27 SureGrip™ Industrial Surface Temperature Probe 80PK-27
Compatible with any temperature measuring instrument that accepts type K thermocouples features a miniature connector input and a cold reference junction compensation. Additionally, this industrial surface temperature probe is ideal for surfaces in rugged environments.




Fluke 80PK-1 Bead Probe 80PK-1
A K type thermocouple ideal for general purpose applications.




Fluke 80PK-22 SureGrip™ Immersion Temperature Probe 80PK-22
Compatible with any temperature measuring instrument that accepts K type thermocouples and features a miniature connector input. Additionally, this immersion temperature probe is for use in liquid and gels, and can also be used as a general-purpose probe.




Fluke 80PK-24 SureGrip™ Air Temperature Probe 80PK-24
A K type thermocouple probe ideal for use in air and non-caustic gas measurements. Additionally, this air temperature probe features a bead protected by perforated baffle.




Fluke 80PK-25 SureGrip™ Piercing Temperature Probe 80PK-25
A K type thermocouple probe that is suitable for the food industry, liquids, and gel.




Fluke 80PK-26 SureGrip Tapered Temperature Probe 80PK-26
Features a tapered tip, making this tapered temperature probe ideal for use in air, non-caustic gas, and surface applications.




Fluke 80CJ-M type J Male Mini-Connectors 80CJ-M
Package of two male mini-connectors for use with Fluke 80TK or Fluke 50 Series.




Fluke 80CK-M type K Male Mini-Connectors 80CK-M
Yellow connectors with isothermal screw terminal. Pack of 2.
