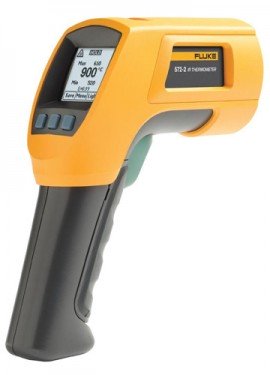

Fluke 572-2 High Temperature Infrared Thermometer, -22 to 1652。F

Model: 572-2 | UPC: 095969667562

Fluke 572-2 High Temperature Infrared Thermometer, -22 to 1652。F-


Downloads: datasheet manual

Fluke 572-2 High Temperature Infrared Thermometer, -22 to 1652。F

Model: 572-2

Ideal for high-temperature industrial environments whether it's power utility, metal refining and smelting, glass, cement or petrochemical environments.

Ideal for high-temperature industrial environments whether it's power utility, metal refining and smelting, glass, cement or petrochemical environments.

Sale Price $845.99 USD
Regular Price $939.99 USD
Availability 1 in Stock
Quantity

Add In-House Traceable Calibration to your 572-2

Add In-House Traceable Calibration to your 572-2


Fluke 572-2 Offers

This high-temperature infrared thermometer is built for use in high-temperature industrial environments. It has a straight-forward user interface and soft-key menus, making even complex measurements easier. Quickly navigate and adjust emissivity, start data logging, or turn on and off alarms, with just a few pushes of a button.

Features

  • 60:1 distance to spot ratio with dual laser sighting for fast, accurate targeting
  • Multi-language interface (user select)
  • Current Temperature plus MAX, MIN, DIF, AVG temperature displays
  • Compatible with standard mini-connector K-type thermocouples
  • Adjustable emissivity and predefined emissivity table
  • Infrared and thermocouple temperature on backlit display
  • Last reading Hold (20 seconds)
  • High and low temperature alarm
  • Data storage and review (99 data sets)
  • Tripod mount
  • 12 or 24 hour clock
  • USB 2.0 computer interface cable
  • FlukeView® Forms Documenting Software
  • Two-year warranty

Applications

  • Utilities
  • Mining and Minerals
  • Oil and Gas

Fluke 572-2 Specifications

Infrared Measurements
Temperature Range -22 to 1652°F (-30 to 900°C)
IR Accuracy (calibration geometry with ambient temperature 23°C ±2°C) ≥32°F: ±2°F or ±1% of the reading, whichever is greater
≥14°F to <32°F: ±4°F
<14°F: ±6°F
≥0°C: ±1°C or ±1 % of the reading, whichever is greater
≥-10°C to <0°C: ±2°C
<-10°C:±3 °C
IR Repeatability ±0.5% of reading or ±1°F (±0.5°C), whichever is greater
Display Resolution 0.1°F/0.1°C
Distance:Spot 60:1 (calculated at 90% energy)
Minimum Spot Size 0.75" (19 mm)
Laser Sighting Offset dual laser, output <1 mW
Spectral Response 8 µm to 14 µm
Response Time (95%) <500 ms
Emissivity Digitally adjustable from 0.10 to 1.00 by 0.01 or via built-in table of common materials
Contact Measurements
K-Type Thermocouple Input Temperature Range -454 to 2501°F (-270 to 1372°C)
K-Type Thermocouple Input Accuracy <-40°F: ±(2°F + 0.2°/1°F)
≥-40°F: ±1% or 2°F, whichever is greater
<-40°C: ±(1 °C + 0.2°/1°C)
≥-40°C: ±1% or 1°C, whichever is greater
K-Type Thermocouple 0.1°F/0.1°C
K-Type Thermocouple Repeatability ±0.5% of reading or ±1°F (±0.5°C), whichever is greater
Measurement Options
Hi/Low Alarms Audible and two-color visual
Min/Max/Avg/Dif Yes
Switchable Celsius and Fahrenheit Yes
Backlight Two levels, normal and extra bright for darker environments
Probe Input K-type thermocouple simultaneous display of probe and IR temperature
Trigger Lock Yes
Data Storage 99 points
Display Dot matrix 98 x 96 pixels with function menus
Communication USB 2.0
K-Type Thermocouple Specifications
Measurement Range (Bead Probe) -40 to 500°F (-40 to 260°C)
Accuracy ±2.0°F (±1.1°C) from 32 to 500°F (0 to 260°C)
Typically within 2.0°F (1.1°C) from -40 to 32°F (-40 to 0°C)
Cable Length 40" (1 m) K-type thermocouple cable with standard miniature thermocouple connector and bead termination
General Specifications
Safety and Compliance IEC 60825-1
FDA Laser Class II
IEC 61326-1
CE Complaint
CMC # 01120009
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Relative Humidity 10 to 90% RH non-condensing up to 86°F (30°C)
Operating Altitude 2000 meters above mean sea level
Weight 0.7099 lb (0.322 kg)
Power 2 x AA batteries
Battery Life 8 hours with laser and backlight on; 100 hours with laser and backlight off, at 100 % duty cycle (thermometer continuously on)
Click here for complete specifications on the Fluke 572-2

What's included with the Fluke 572-2

  • High Temperature Infrared Thermometer
  • K-Type Thermocouple Bead Probe
  • USB 2.0 Computer Interface Cable
  • FlukeView Forms Documenting Software
  • Hard Carrying Case
  • Getting Started Guide
  • User's Manual

Click on a category to view a selection of compatible accessories with the Fluke 572-2 High Temperature Infrared Thermometer, -22 to 1652。F.

Fluke 80PK-1 Bead Probe 80PK-1
A K type thermocouple ideal for general purpose applications.





Fluke 80PK-25 SureGrip™ Piercing Temperature Probe 80PK-25
A K type thermocouple probe that is suitable for the food industry, liquids, and gel.




Fluke 80PK-26 SureGrip Tapered Temperature Probe 80PK-26
Features a tapered tip, making this tapered temperature probe ideal for use in air, non-caustic gas, and surface applications.




Fluke 80PK-27 SureGrip™ Industrial Surface Temperature Probe 80PK-27
Compatible with any temperature measuring instrument that accepts type K thermocouples features a miniature connector input and a cold reference junction compensation. Additionally, this industrial surface temperature probe is ideal for surfaces in rugged environments.




Fluke 80PK-8 Pipe Clamp Temperature Probe 80PK-8
Uses Type-K thermocouple for fast temperature and superheat measurements of pipe surfaces. Designed to reliably measure the temperature of pipes ¼" (6 mm) to 1⅜" (35 mm) in diameter, at temperatures between -20 and 300°F (-29 and 149°C), while retaining a long service life.




Fluke 80PK-9 General Purpose Probe 80PK-9
Featuring a general purpose type-K thermocouple probe for surface, air and non-caustic gases. It has a measuring range of -40 to 260°C.
