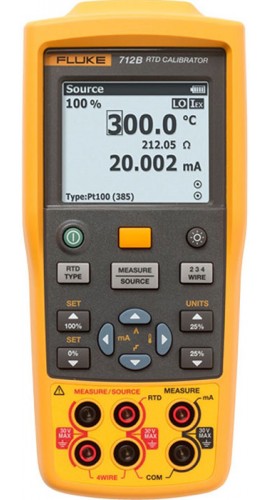

Fluke 712B/EN RTD Calibrator, 30V

Model: 712B/EN | Order No: 712B | UPC: 095969686402

Fluke 712B/EN RTD Calibrator, 30V-


Downloads: datasheet manual

Fluke 712B/EN RTD Calibrator, 30V

Model: 712B/EN | Order No: 712B

This handheld, battery operated calibrator measures and sources a variety of RTD types and resistances with isolated channel to measure 4 to 20mA while sourcing a temperature signal. Can be configured to 0% and 100% source settings for quick 25% linearity checks.

This handheld, battery operated calibrator measures and sources a variety of RTD types and resistances with isolated channel to measure 4 to 20mA while sourcing a temperature signal. Can be configured to 0% and 100% source settings for quick 25% linearity checks.

Your Price $1489.99 USD
Availability 1 in Stock
Quantity

Add In-House Traceable Calibration add to your 712B

Add In-House Traceable Calibration add to your 712B


Fluke 712B/EN Offers

Ideal for the professional that wants a highly accurate, easy-to-use, single function temperature calibrator. Capable of measuring and simulating 13 different RTD types and resistances. This calibrator was designed for convenience and functionality on the job site, including a convenient hanging strap designed for use with this model. With dual inputs and a backlit display for easy interpretation of measurements.

Features

  • Highly accurate, full-featured , easy-to-use single function RTD temperature calibrator
  • Measures and simulates 13 different RTD types and resistance
  • Measures 4 to 20 mA signals while simultaneously sourcing a temperature signal
  • Comes with a magnetic hanging tool designed in for convenient hands-free operation
  • Features configurable 0% and 100% source settings for quick 25% linearity checks
  • Dual inputs and backlit display for easy interpretation of measurements
  • Remembers power down settings to easily restart tests when powered up
  • Provides linear ramp and 25% step auto ramp based on 0% and 100% settings
  • Provides one-year and two-year specifications and traceable certification of calibration

Fluke 712B/EN Specifications

Maximum voltage applied between any terminal and earth ground or between any two terminals 30V
Operating Temperature -10 to 50°C
Storage Temperature -30 to 60°C
Operating Altitude 2,000 Meters
Storage Altitude 12,000 Meters
Drop Text Requirements 1 Meter
IP Rating IEC 60529: IP52
Electromagnetic Environment IEC 61326-1, Portable
Safety IEC 61010-1, Max 30 V to Earth, Pollution Degree 2
Power supply 4 x AA NEDA 1.5A IEC LR6 Batteries
Weight 515g
Dimensions 52.5 x 84 x 188.5mm
Click here for complete specifications on the Fluke 712B/EN

What's included with the Fluke 712B/EN

  • RTD Calibrator
  • Traceable Calibration Certificate
  • Magnetic Hanging Tool
  • Test Leads
  • 4 x AA NEDA 1.5A IEC LR6 Batteries
  • Instruction Manual
