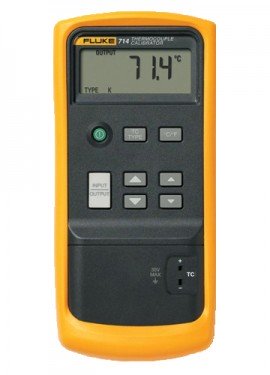

Fluke 714 Thermocouple Calibrator

Model: 714 | UPC: 095969050685

Downloads: datasheet manual

Fluke 714 Thermocouple Calibrator

Model: 714

Measure temperature from TC output, simulate TC output. The Fluke 714 Thermocouple Calibrator delivers outstanding performance, durability and reliability. The calibrator is compact, lightweight, and easy to carry. Easy-to-use with just a push-button interface. Each calibrator is EMI tolerant, dust- and splash-resistant, and features a removable battery door for quick battery changes.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke 714B Temperature Calibrator, 4 to 20 mA

Model: 714B/EN | Order No: 714B

Rugged construction with an easy-to-use interface, this single function thermocouple temperature calibrator measures 4 to 20mA signals while sourcing a temperature signal. Featuring intelligent shutdown, the calibrator remembers settings when powered down so you don't have to, and can replicate tests after powering back up.

Learn More

Recommended Accessories

Fluke 80PT-EXT Extension Wire Kit

80PT-EXT

Fluke AC120 Alligator Clips

AC120

Fluke TL220 Suregrip Industrial Test Lead Set

TL220

Fluke TPAK ToolPak Magnetic Meter Hanger

ToolPak

Fluke 714 Offers

Features

Operable with nine types of thermocouples
Calibrate linear TC transmitter with mV source function
Selectable °F or °C
Thermocouple mini-jack termination
Available as accessories: Fluke-700TC1 and TC2 Thermocouple Mini-plug Kits
Holster features test lead storage
Compatible with toolpack magnetic hanging

Applications

Petro-Chemical
Oil and Gas
Food and Beverage
Pharmaceutical
Test and Measurement
Instrumentation

Fluke 714 Specifications

Range	-200 to 1800 °C, depending on type
Resolution	0.1 °C
Accuracy	0.3 °C + 10 µV, Note: 9 TC types; J K T E R S B per NIST 175 and ITS-90 L U per DIN 43710 and IPTS-68
mV Range	-10 to 75 mV
mV Accuracy	0.025% + 1 count
Display	LCD, 5 digit pressure and current simultaneous
Operating temperature	-10 to 55°C
Operating Altitude	3,000m max
Safety	CSA C22.2 No. 1010.1:1992
Size	187 mm L x 87mm W x 32 mm
Weight	Approx. 330 g
Warranty	3 years
Shock & Vibration	Random, 2G, 5-500 Hz, 1m drop test
Battery Type	Single 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline

Click here for complete specifications on the Fluke 714

What's included with the Fluke 714

Fluke 714 Thermocouple Calibrator
Protective yellow holster with test lead storage
Instructions sheet (14 languages)
Single 9V alkaline battery
Test Leads and Alligator Clips
NIST-traceable calibration report and data
