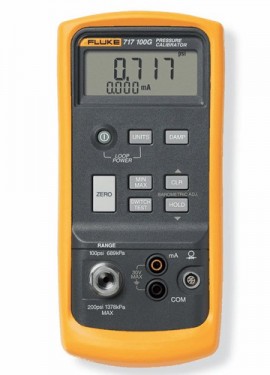

Fluke 717-100G Pressure Calibrator, -12 to 100 PSI

Model: 717-100G | UPC: 095969111072

Fluke 717-100G Pressure Calibrator, -12 to 100 PSI-


Downloads: datasheet

Fluke 717-100G Pressure Calibrator, -12 to 100 PSI

Model: 717-100G

Pressure switch test function captures set, reset and Deadband values of a pressure switch. Measure mA with 0.015% accuracy and 0.001 mA resolution, while sourcing 24V loop power.

Pressure switch test function captures set, reset and Deadband values of a pressure switch. Measure mA with 0.015% accuracy and 0.001 mA resolution, while sourcing 24V loop power.

Your Price $1639.99 USD
Availability 1 to 2 Weeks
Quantity

Add In-House Traceable Calibration to your Fluke 717-100G Pressure Calibrator

Add In-House Traceable Calibration to your Fluke 717-100G Pressure Calibrator


Fluke 717-100G Offers

Fluke 717-100G Pressure Calibrator is a compact, lightweight and easy to carry calibrator that delivers outstanding performance, durability and reliability. The Fluke 717 Calibrator is EMI tolerant, dust and splash resistant and features a removable battery door for quick battery changes.

The Fluke 717 simultaneously measures pressure and mA and delivers 24 volt loop supply while measuring mA. This new Pressure Calibrator presents cost-effective solutions for highly accurate pressure measurements over a wide range of temperatures. Connect it with any of the Fluke pressure modules to address a wide variety of gauge, differential, absolute, vacuum and dual (compound) pressure applications.

Pressure source and milliamp measurement capability to calibrate and maintain almost any pressure device with one tool Error % calculation for quicker pass / fail decision making in the field Best in class mA accuracy (0.015% for better measurement confidence and workload coverage.

Features

  • 1/8 NPT female pressure fitting
  • Compatible with non-corrosive Gases and liquids
  • Zero, min, max, and hold functions
  • Calibrate P/I instruments with simultaneous pressure and current measurement
  • Error% calculation of mA measurements for quick pass-fail decisions
  • Long lasting battery life
  • Holster features test lead storage
  • Compatible with Toolpack magnetic hanging system
  • New switch test

Applications

  • Petro-Chemical
  • Oil and Gas
  • Pharmaceutical
  • Water and Wastewater
  • Food and Beverage
  • Power Generation

Application Selection Guide

Fluke 754 Documenting Process Calibrator with HART communication Fluke 721 Dual Sensor Pressure Calibrators Fluke 719PRO Electric Pressure Calibrators Fluke 719 Pressure Calibrator Fluke 718 Series Pressure Calibrators Fluke 717 Series Pressure Calibrators Fluke 700G Series Pressure Test Gauge Fluke 3130-G2M Portable Pneumatic Pressure Calibrators Fluke 2700G Series Pressure Gauges Fluke Deadweight Testers
Model number 754 721/​721Ex 719Pro 719 718 717 700G 3130 2700G Dead-weight Testers
Application
Calibrating pressure transmitters (field) Ideal
Calibrating pressure transmitters (bench) Ideal
Calibrating HART Smart transmitters Ideal
Documenting pressure transmitter calibrations Ideal
Testing pressure switches in the field Ideal
Testing pressure switches on the bench Ideal
Documenting pressure switch tests Ideal
Testing pressure switches with live (voltage) contacts Ideal
Gas custody transfer computer tests Ideal
Verifying process pressure gauges (field) Ideal
Verifying process pressure gauges (bench) Ideal
Logging pressure measurements Ideal
Testing pressure devices using a reference gauge Ideal
Hydrostatic vessel testing Ideal
Leak testing (pressure measurement logging) Ideal
Pressure Calibration Selection Guide

Fluke 717-100G Specifications

Pressure Range -12 to 100 PSI, (-850 mbar to 7 bar, -83 to 689.48 kPa)
Pressure Resolution 0.01 psi, 0.1 mbar, 0.01 kPa
Over Pressure 2 X full scale
Loop Power Range 24 V dc
Loop Power Accuracy +/- 10%
Display Clear 5 digit LCD
Operating Temperature -10 to 55 °C
Operating Altitude 3,000 M max
Size 201 mm L x 98 mm W x 52 mm (7.93in. L x 3.86in. W X 2.06in.)
Weight 22 oz, approximately 600G with holster
Battery type Single 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline
Click here for complete specifications on the Fluke 717-100G

What's included with the Fluke 717-100G

  • Protective Yellow Holster with Test Lead Storage
  • Instructions Sheet
  • Single 9V Battery
  • Test Leads and Alligator Clips
  • NIST-Traceable Calibration Report and Data
