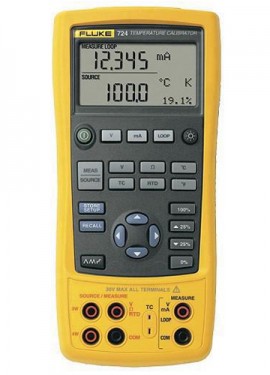

Fluke 724 Temperature Calibrator

Model: 724 | UPC: 095969083355

Fluke 724 Temperature Calibrator-


Downloads: datasheet manual

Fluke 724 Temperature Calibrator

Model: 724

An easy-to-use temperature calibrator that can measure and source 12 thermocouple and seven RTD types, volts, and ohms, which allows users to test and calibrate a wide variety of temperature instruments. Additionally, this tool also handles high-speed pulsed RTD circuits and offers loop power.

An easy-to-use temperature calibrator that can measure and source 12 thermocouple and seven RTD types, volts, and ohms, which allows users to test and calibrate a wide variety of temperature instruments. Additionally, this tool also handles high-speed pulsed RTD circuits and offers loop power.

Your Price $2499.99 USD
Availability 2 in Stock
Quantity

Add In-House Traceable Calibration to your 724

Add In-House Traceable Calibration to your 724


Fluke 724 Offers

Test and calibrate all temperature sensors and transmitters in your plant with only this temperature calibrator. This instrument is easy-to-use, and sources and measures 12 thermocouple and seven RTD types, plus volts and ohms.

Additionally, this tool as well handles high-speed pulsed RTD circuits and provides loop power. It features a dual-line measure/source display that allows users to source temperature and view loop current simultaneously and a "no menus" controls.

Features

  • Easy to read dual display lets you view input and output simultaneously
  • Measure RTDs, thermocouples, ohms, and volts to test sensors and transmitters
  • Source/simulate thermocouples, RTDs, volts, and ohms to calibrate transmitters
  • Perform fast linearity tests with 25% and 100% steps
  • Execute remote tests with auto step and auto ramp
  • Power transmitters during test using loop power supply with simultaneous mA measurement
  • Store frequently-used test setups for later use
  • Backlight lets you work in poor light
  • Large battery capacity of four AA cells
  • Battery door for easy changes
  • A compact, streamlined shape that makes it easy to carry
  • A rugged, reliable design that stands up to field use

Fluke 724 Specifications

Measurement Accuracy
Voltage DC 30.000 V: 0.02% + 2 counts (upper display)
20.000 V: 0.02% + 2 counts (lower display)
100.00 mV: 0.02% + 2 counts
-10.00 to 75.00 mV: 0.025% + 1 count (via TC connector)
Current DC 24.000 mA: 0.02% + 2 counts
Resistance 0 to 400.0 Ω: 0.1 Ω (4-wire), 0.15 Ω (2- and 3-wire)
401 to 1500 Ω: 0.5 Ω (4-wire), 1 Ω (2- and 3-wire)
1500 to 3200 Ω: 1 Ω (4-wire), 1.5 Ω (2- and 3-wire)
Source Accuracy
Voltage DC 100.00 mV: 0.02% +2 counts
10.000 V: 0.02% +2 counts
–10.00 to 75.00 mV: 0.025% + 1 count (via TC connector)
Resistance 15.0 to 400.0 Ω: 0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA)
401 to 1500 Ω: 0.5 Ω (excitation current 0.05 to 0.8 mA)
1500 to 3200 Ω: 1 Ω (excitation current 0.05 to 0.4 mA)
Functions
Ramp Functions Source functions: Voltage, current, resistance, frequency, temperature
Ramps: Slow ramp, Fast ramp, 25% step-ramp
Loop Power Function Voltage: 24 V
Accuracy: 10%
Maximum current: 22 mA, short circuit protected
Step Functions Source functions: voltage, resistance, temperature
Steps: 25% of range, 100% of range
Environmental Specifications
Operating Temperature 14 to 131°F (–10 to 55°C)
Storage Temperature -4 to 160°F (–20 to 71°C )
Humidity (Without Condensation) 90% = 50 to 86°F (10 to 30°C)
75% = 86 to 104°F (30 to 40°C)
45% = 104 to 122°F (40 to 50°C)
35% = 122 to 131°F (50 to 55°C)
Safety Specifications
Safety Rating CSA C22.2 No. 1010.1:1992
EMC EN50082-1:1992 and EN55022:1994 Class B
Click here for complete specifications on the Fluke 724

What's included with the Fluke 724

  • Calibrator
  • NIST Traceable Calibration Report and Data
  • Test Clips
  • Test Leads
  • Users Manual
  • Users Manuals on CD-ROM

Click on a category to view a selection of compatible accessories with the Fluke 724 Temperature Calibrator.

Fluke C100 Hard Sided Carrying Case C100
Carrying Case for all handheld multimeters.




Fluke AC220 SureGrip™ Alligator Clips AC220
Designed to improve steadiness with rubber overmolded surfaces and finger-hugging curves. For use with TL222 and TL224 test leads.




Fluke L206 Deluxe LED Hat Light L206
Three super bright white LEDs never burn out attach to hard hat, baseball cap, or panel door.




Fluke LVD1A Volt Light LVD1A
Handy Fluke Volt Light compact LED flash-lights with built-in color responsive AC non-contact voltage detector.




Fluke TP1 Slim Reach Test Probe Set TP1
Features hard stainless steel probe tips and one pair of slender probe bodies, which is ideal for probing closely spaced or recessed terminals. Additionally, it comes in a flat blade design to hold securely in blade type electrical wall sockets.




Fluke TP38 Slim Reach Test Probe Set TP38
Comes with hard stainless steel probe tips, this slim reach test probes set comes in one pair of slender probe bodies that for probing closely spaced or recessed terminals. Additionally, they feature an insulated probe tip.




Fluke 700TC2 Thermocouple Plug Kit 700TC2
7-Piece Thermocouple Mini-Plug Connector Kit.




Fluke TL220 Suregrip Industrial Test Lead Set TL220
Includes the Fluke AC220, Fluke TP220, and Fluke TL224.




Fluke TLK-220 US SureGrip™ Industrial Test Lead Kit TLK-220
A handy all-in-one kit that is ideal for industrial applications. Additionally, this test lead kit comes equipped with AC220 SureGrip alligator clip set, AC285 SureGrip large jaw alligator clip set, TP220 sharp test probes, TL224 SureGrip silicone right to straight test leads, and a carrying case.
