Fluke 753 Documenting Process Calibrator

Model: 753 | UPC: 095969590402

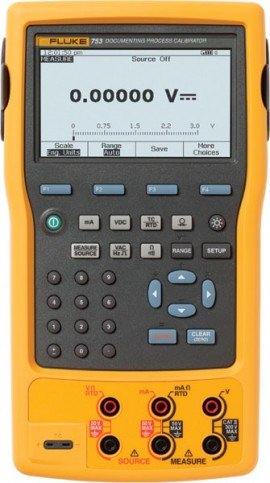

Fluke 753 Documenting Process Calibrator-


Downloads: datasheet manual

Fluke 753 Documenting Process Calibrator

Model: 753

Source, simulate and measure pressure, temperature, and electrical signals with this process calibrator. Users can download procedures, lists, and instructions created with software, and upload data for printing archiving, and analysis. Additionally, it comes equipped with a USB interface and communication cable.

Source, simulate and measure pressure, temperature, and electrical signals with this process calibrator. Users can download procedures, lists, and instructions created with software, and upload data for printing archiving, and analysis. Additionally, it comes equipped with a USB interface and communication cable.

Your Price $6449.99 USD
Availability 2 to 3 Weeks
Quantity

Add In-House Traceable Calibration to your 753

Add In-House Traceable Calibration to your 753


Fluke 753 Offers

Download procedures, lists, and instructions created with software, and upload data for printing, archiving, and analysis with this documenting process calibrator. It features source measurement capabilities for all common process parameters. This calibrator sources, simulates, and measures pressure, temperature, and electrical signals. Users can as well automate calibration procedures, captures data for documentation, and meets standards such as ISO 9000, FDA, EPA, and OSHA regulations.

Features

  • Full-featured documenting process calibrator for calibrating and troubleshooting
  • Measures volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
  • Sources and simulate volts, mA, pressure, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
  • Powers transmitters during test using loop supply with simultaneous mA measurement
  • Measures and sources pressure
  • Allows you to creates and run automated as-found/as-left procedures to satisfy quality programs or regulations, and record and document results
  • Holds up to a full week of downloaded procedures and calibration results
  • Offers many flexible features like autostep, custom units, user-entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay
  • Offers compatibility with DPCTrack2 and many other asset management software packages
  • Bright white dual display for reading both sourced and measured parameters simultaneously
  • Easy-to-use multi-lingual interface
  • Gas gauge and rechargeable Li-Ion battery for 10 hour uninterrupted use

Fluke 753 Specifications

Measurement Accuracy
Voltage DC Range/resolution: 100 mV, 3 V, 30 V, 300 V
1 year: 0.02% + 0.005 mV, 0.02% + 0.00005 V, 0.02% + 0.0005 V, 0.05% + 0.05 V
2 years: 0.03% + 0.005 mV, 0.03% + 0.00005 V, 0.03% + 0.0005 V, 0.07% + 0.05 V
Voltage AC Range/resolution: 3(40 to 500 Hz)/0.001 V, 30 (40 to 500 Hz)/0.01 V, 300 (40 to 500 Hz)/0.1 V
1 year: 0.5% + 0.002 V, 0.5% + 0.02 V, 0.5% + 0.2 V
2 years: 1.0% + 0.004 V, 1.0% + 0.04 V, 1.0% + 0.2 V
Current DC Range/resolution: 30 mA, 110 mA
1 year: 0.01% + 5 µA, 0.01% + 20 µA
2 years: 0.015% + 7 µA, 0.015% + 30 µA
Resistance Range/resolution: 10 Ω, 100 Ω, 1 kΩ, 10 kΩ
1 year: 0.05% + 50 mΩ, 0.05% + 50 mΩ, 0.05% + 500 mΩ, 0.1% + 10 Ω
2 years: 0.07% + 70 mΩ, 0.07% + 70 mΩ, 0.07% + 0.5 Ω, 0.15% + 15 Ω
Frequency Range/resolution: 1.00 to 110.00 Hz/0.01 Hz, 110.1 to 1100.0 Hz/0.1 Hz, 1.101 to 11.000 kHz/0.001 kHz, 11.01 to 50.00 kHz/0.01 kHz
2 years: 0.05 Hz, 0.5 Hz, 0.005 kHz, 0.05 kHz
Source Accuracy
Voltage DC Range/resolution: 100 mV, 1 V, 15 V
1 year: 0.01% + 0.005 mV, 0.01% + 0.00005 V, 0.01% + 0.0005 V
2 years: 0.015% + 0.005 mV, 0.015% + 0.0005 V, 0.015% + 0.0005 V
Current DC Range/resolution: 22 mA (source), current sink (simulate)
1 year: 0.01% + 0.003 mA, 0.02% + 0.007 mA
2 years: 0.02% + 0.003 mA, 0.04% + 0.007 mA
Resistance Range/resolution: 10 Ω, 100 Ω, 1 kΩ, 10 kΩ
1 year: 0.01% + 10 mΩ, 0.01% + 20 mΩ, 0.02% + 0.2 Ω, 0.02% + 3 Ω
2 years: 0.015% + 15 mΩ, 0.015% + 30 mΩ, 0.03% + 0.3 Ω, 0.03% + 5 Ω
Frequency Range/resolution: 0.1 to 10.99 Hz, 0.01 to 10.99 Hz, 11.00 to 109.99 Hz, 110.0 to 1099.9 Hz, 1.100 to 21.999 kHz, 22.000 to 50.000 kHz
2 years: 0.01 Hz, 0.01 Hz, 0.1 Hz, 0.1 Hz, 0.002 kHz, 0.005 kHz
Technical Data
Data Log Functions Measure functions: Voltage, current, resistance, frequency, temperature, pressure
Reading rate: 1, 2, 5, 10, 20, 30, or 60 readings/minute
Maximum record length: 8000 readings (7980 for 30 or 60 readings/minute)
Ramp Functions Source functions: Voltage, current, resistance, frequency, temperature
Rate: 4 steps/second
Trip detect: Continuity or voltage (continuity detection not available when sourcing current)
Loop Power Function Voltage: Selectable, 26 V
Accuracy: 10%, 18 V minimum at 22 mA
Maximum current: 25 mA, short circuit protected
Maximum input voltage: 50 V DC
Step Functions Source functions: Voltage, current, resistance, frequency, temperature
Manual step: Selectable step, change with arrow buttons
Autostep: Fully programmable for function, start delay, stepvalue, time per step, repeat
Environmental Specifications
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dust/Water Resistance Meets IP52, IEC 529
Operating Altitude 9842' (3000 m) above mean sea level
Mechanical and General Specifications
Batteries Internal Battery Pack Li-ion: 7.2 V, 4400 mAh, 30 Wh
Battery Life >8 hours typical
Battery Replacement Via snap-shut door without opening calibrator; no tools required
Side Port Connections Pressure module connector
USB Connector to interface to your PC
Connection for optional battery charger/eliminator
Data Storage Capacity 1 week of calibration procedures results
90 Day Specifications The standard specification interval are 1 and 2 years
Typical 90 day measurement and source accuracy can be estimated by dividing the one year "% of reading" or "% of output" specifications by 2.
Floor specifications, expressed as "% of full scale" or "counts" or "ohms" remain constant.
Dimensions 5.4 x 9.6 x 2.5" (136 x 245 x 63 mm)
Weight 2.7 lbs (1.2 kg)
Safety Specifications
Agency Approvals CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-1:1993
Click here for complete specifications on the Fluke 753

What's included with the Fluke 753

  • Calibrator
  • NIST-Traceable Calibration Report and Data
  • USB Communication Cable
  • 3 x Test probes
  • 3 x Sets of “Extended Tooth"" Alligator Clips
  • 2 x Hook Clips
  • Carrying Case
  • Battery Charger
  • Li-on Battery Pack
  • DPCTrack 2™ Sample Software
  • Instruction Manual
