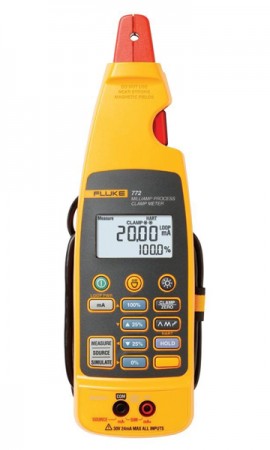

Fluke 772 Milliamp Process Clamp Meter, Dual Backlit Display

Model: 772 | UPC: 095969475815

Downloads: datasheet manual

Fluke 772 Milliamp Process Clamp Meter, Dual Backlit Display

Model: 772

Measure 4 to 20 mA signals with in-circuit measurement, simultaneous mA in-circuit measurement with 24V loop power.

Your Price	$1660.00 USD
Availability	2 to 3 Weeks3 to 4 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your 772 Milliamp Process Clamp Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICA2) for only $205.00 USD

Traceable Calibration Certificate for your 772 Milliamp Process Clamp Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICA2) for only $205.00 USD

Recommended Accessories

Fluke C550 Premium Tool Bag

C550

Fluke TL220 Suregrip Industrial Test Lead Set

TL220

Fluke TLK291 Fused Test Probe Set

TLK291

Fluke 772 Offers

Features

Source 4 to 20mA signals for testing control system I/O or I/Ps
mA output linear ramp or 25% step output
Automatically change the 4 to 20mA output for remote testing
Best in class 0.2 % accuracy
0.01 mA resolution and sensitivity
Measure 4 to 20 mA signals without "breaking the loop"
Measure mA signals for PLC and control system analog I/O
Dual backlit display with both mA measurement and percent of 4 to 20mA span
Measurement Spotlight illuminates hard to see wires in dark enclosures
Detachable clamp with extension cable for measurements in tight locations
Measure 10 to 50mA signals in older control systems using the 99.9 mA range
Power saving features, auto-off, backlight timeout extend battery life
Hold function captures and displays changing measurements mA measure, jaw mA measure, in circuit Loop power mA source

Applications

Petro-Chemical
Oil and Gas
Food and Beverage
Pharmaceutical

Fluke 772 Specifications

Diameter of Measurable Conductor	0.177" or 4.5mm max
mA Measurement (Measured by clamp)
Resolution and Range	0 to 20.99mA
Accuracy	0.2% + 2 counts
Resolution and Range	21.0 to 100.0mA
Accuracy	1% + 5 counts
mA Measurement (Measured in series with test jacks)
Resolution and Range	0 to 24.00mA
Accuracy	0.2% + 2 counts
mA Source (Maximum mA Drive: 24 mA into 1,000 ohms)
Resolution and Range	0 to 24.00mA
Accuracy	0.2% + 2 counts
mA Simulate (Maximum voltage 50V DC)
Resolution and Range	0 to 24.00mA
Accuracy	0.2% + 2 counts

Click here for complete specifications on the Fluke 772

What's included with the Fluke 772

772 Milliamp Process Clamp Meter
Four AA alkaline batteries (installed)
Soft carrying case
TL75 test leads
AC 72 detachable clip
TL 940 mini hook test leads
Hanging tool with hook and loop strap
Instruction sheet

datasheet for the Fluke 772 Milliamp Process Clamp Meter, Dual Backlit Display manual for the Fluke 772 Milliamp Process Clamp Meter, Dual Backlit Display

Click on a category to view a selection of compatible accessories with the Fluke 772 Milliamp Process Clamp Meter, Dual Backlit Display .

Carrying Cases

Fluke TB25 Tool Bucket Organizer Bag, 5.2 gal TB25

Durable and rugged, this tool bucket organizer bag has a 5.2-gallon capacity that can be relied on to protect and safely carry a variety of test tools and accessories. With its waterproof hard bottom shell, this versatile organizer has a total of 28 pockets that can fit hand tools, DMMs, clamp meters, test probes, and more.

Fluke C550 Premium Tool Bag C550

Tool Bag with steel reinforced frame.

Test Leads & Probes

Fluke TL220 Suregrip Industrial Test Lead Set TL220

Includes the Fluke AC220, Fluke TP220, and Fluke TL224.

Fluke TLK291 Fused Test Probe Set TLK291

Compatible with a variety of Fluke multimeters and test leads, this fused test probe set provides firm and secure contact.
