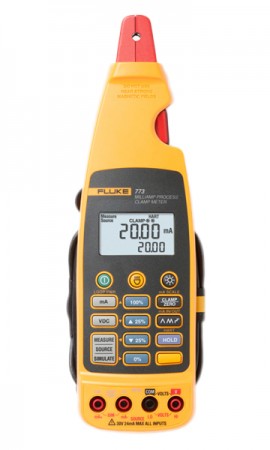

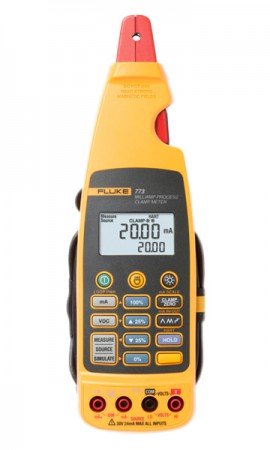

Fluke 773 Milliamp Process Clamp Meter, 4 to 20 mA

Model: 773 | UPC: 095969475822

Fluke 773 Milliamp Process Clamp Meter, 4 to 20 mA-


Downloads: datasheet manual

Fluke 773 Milliamp Process Clamp Meter, 4 to 20 mA

Model: 773

Ideal for troubleshooting transmitters, valves, and programmable logic controllers (PLCs) found in process plants. This meter measures 4 to 20 mA signals without breaking the loop, which allows it to troubleshoot a live device without having to power down. Additionally, users can detach the clamp section of the meter.

Ideal for troubleshooting transmitters, valves, and programmable logic controllers (PLCs) found in process plants. This meter measures 4 to 20 mA signals without breaking the loop, which allows it to troubleshoot a live device without having to power down. Additionally, users can detach the clamp section of the meter.

Your Price $1369.99 USD
Availability 4 in Stock
Quantity

Add In-House Traceable Calibration to your 773

Add In-House Traceable Calibration to your 773


Fluke 773 Offers

A process clamp meter saves time and money by measuring output signals without shutting down the system

Capable of measuring 4 to 20 mA signals five times faster than a traditional multimeter without breaking the loop. That means this process clamp meter allows the user to troubleshoot a live device without needing to power down and possibly miss something going on in the process.

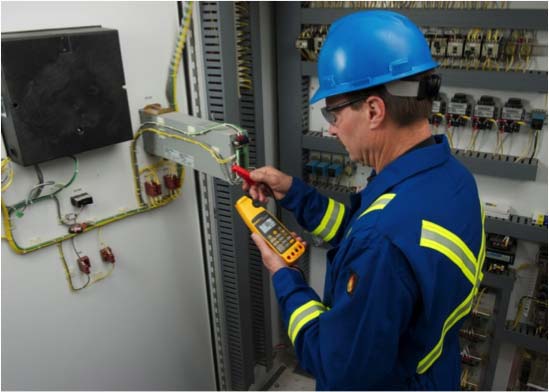

Ideal for troubleshooting transmitters, valves, and programmable logic controllers (PLCs) found in process plants, this instrument also measures low-level DC and correlates process indication with real physical value. And it measures up to 99.0 mA non-contact, including 10 to 50 mA signals in older control systems.

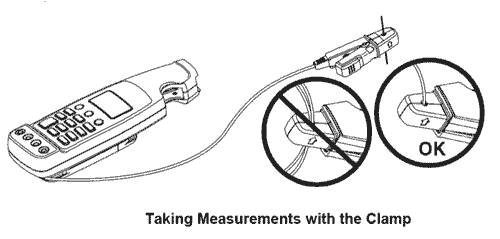

Additionally, this tool sources and measures dc voltage, therefore it can be used to troubleshoot voltage input and output devices. The user can detach the clamp section of the meter and use it as a remote jaw, connected to the main body by an extension cable to make it easier to take measurements in tight spaces. Plus, automatic power-off features save battery life so you can work longer without charging the batteries.

Features

  • Loop calibrator that measures 4 to 20 mA signals without breaking the loop
  • Source 4 to 20 mA signals for testing control system I/O or I/Ps
  • Simulate 4 to 20 mA signals for testing control system I/O
  • Measure 4 to 20 mA signals with in-circuit measurement
  • Simultaneously measure mA in-circuit with 24 V loop power for powering and testing transmitters
  • Source mA output signals in a linear ramp or 25 % step output - automatically change the 4 to 20 mA output for remote testing
  • Power saving features, auto-off, backlight timeout extend battery life
  • DC voltage measurement to verify 24 V power supplies or voltage I/O signals
  • Source dc voltage to test input devices that accept a 1 to 5 volt or 0 to 10 volt signal
  • Scaled mA output provides a continuous mA signal that corresponds to the 4 to 20 mA signal measured by the mA clamp - Output mA signal enables a logging DMM or other device to record the 4 to 20 mA signal without breaking the loop
  • mA in/out: simultaneously measure the mA signal with the clamp and source a mA signal - apply a mA input signal to a device and measure its' 4 to 20 mA output on devices such as valves or mA isolators
  • Voltage output linear ramp or 25 % step output - automatically change the voltage output for remote testing
  • Delivers 0.01 mA resolution and sensitivity
  • Measurement spotlight to illuminate hard to see wires in dark enclosure
  • Measures 10 to 50 mA signals in older control systems using the 99.9 mA range

Applications

  • Troubleshooting transmitters
  • Troubleshooting valves
  • Troubleshooting programmable logic controllers (PLCs) found in process plants
Fluke Clamp Selection Guide

Fluke 773 Specifications

Measurement mA (Measured by Clamp)
Resolution/Range 0 to 20.99 mA
Accuracy 0.2% + 5 counts
Resolution/Range 21.0 to 100.0 mA
Accuracy 1% + 5 counts
Measurement mA (Measured in Series with Test Jacks)
Resolution/Range 0 to 24.00 mA
Accuracy 0.2% + 2 counts
Source mA (Maximum mA Drive: 24 mA into 1000 Ω)
Resolution/Range 0 to 24.00 mA
Accuracy 0.2% + 2 counts
Simulate mA (Maximum Voltage 50 V DC)
Resolution/Range 0 to 24.00 mA
Accuracy 0.2% + 2 counts
Voltage Source (2 mA Maximum Drive Current)
Resolution/Range 0 to 10.00 V DC
Accuracy 0.2% + 2 counts
Voltage Measure
Resolution/Range 0 to 30.00 V DC
Accuracy 0.2% + 2 counts
General Specifications
Diameter of Measurable Conductor 0.177" (4.5 mm) max
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -13 to 140°F (-25 to 60°C)
Operating Humidity <90% at <86°F (30°C)
<75% at 86 to 131°F (30 to 55°C)
Operating Altitude 0 to 6561.7' (0 to 2000 m)
Dimensions 278 x 5¾ x 1158" (44 x 70 x 246 mm)
Weight 0.9 lb (410 g)
IP Rating IP 40
Click here for complete specifications on the Fluke 773

What's included with the Fluke 773

  • Milliamp Process Clamp Meter
  • Test Leads
  • Alligator Clips
  • Hanging Strap
  • Carrying Case
  • User Manual
