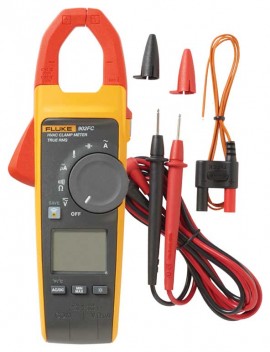

Fluke 902 FC True RMS Wireless HVAC/R Clamp Meter, CAT III 600V / CAT IV 300V

Model: 902 FC | Order No: 902FC | UPC: 95969798341

Fluke 902 FC True RMS Wireless HVAC/R Clamp Meter, CAT III 600V / CAT IV 300V-


Downloads: datasheet manual

Fluke 902 FC True RMS Wireless HVAC/R Clamp Meter, CAT III 600V / CAT IV 300V

Model: 902 FC | Order No: 902FC

Save time reporting by emailing your measurements directly to your inbox from the field, and troubleshoot problems faster with TrendIt™. Reduce the risk of arc flash by separating yourself from the hazardous measurement situations with the Fluke Connect app.

Save time reporting by emailing your measurements directly to your inbox from the field, and troubleshoot problems faster with TrendIt™. Reduce the risk of arc flash by separating yourself from the hazardous measurement situations with the Fluke Connect app.

Sale Price $278.99 USD
Regular Price $309.99 USD
Availability 14 in Stock
Quantity

Add In-House Traceable Calibration to your 902FC

Add In-House Traceable Calibration to your 902FC


Fluke 902 FC Offers

Delivers the features necessary to diagnose and repair HVAC/R systems. Additionally, with Fluke Connect® you can trend measurements, create and send reports right from the field, safely stay away from live equipment while taking measurements, and more.

Features

  • 600 A ac current measurement
  • 600 V ac and dc voltage measurement
  • 1000 µF capacitance measurement
  • DC Current measurement to 200 µA
  • Resistance measurement to 60 kΩ
  • True RMS voltage and current for accurate measurements on non-linear signals
  • Extended resistance range to measure a broad set of thermistors, μA DC current range to measure flame sensor current, contact temperature, and capacitance
  • Minimum and maximum recording to capture variations automatically
  • Get more done faster and safer than before by connecting your meter to Fluke Connect and capture measurements wirelessly
  • Save your measurement to Fluke Cloud storage for further analysis or comparison to earlier inspection data
  • Read measurements on your phone at a safe distance, wearing less PPE while your meter takes the arc blast zone risks, not you
  • Instantly trend and monitor measurements live on your phone screen for better troubleshooting results
  • Create and email reports right from the field
  • When team collaboration is needed use Fluke Connect ShareLive video call to share live measurements and discuss next steps with colleagues
  • Don’t risk transcription errors, save your measurements directly to your meter from your smartphone with the press of a button
  • Ergonomic design fits in your hand and can be used while wearing personal protective equipment
  • Large, easy-to-read backlit display
  • Auto shut-off maximizes battery life so the meter works when you need it
  • Measurement range feature automatically changes switch positions
  • CAT III 600V / CAT IV 300V safety rating
  • Three-year warranty

Applications

  • HVAC/R
  • General purpose electrical maintenance
  • Preventive maintenance
  • Troubleshooting
Fluke Clamp Selection Guide

Fluke 902 FC Specifications

A ac (via Jaw)
Range 60/600A
Resolution 0.01/0.1 A
Accuracy 2.0% ±5 digit (45 to 65 Hz)
2.5% ±5 digit (65 to 400 Hz)
Crest factor (50Hz or 60Hz) 2.5 at 220A
3.0 at 180A
>1.4 at 600A
Add 2% kΩ for CF>2
V ac
Range 600V
Resolution 0.1 V
Accuracy 1.5% ±5 digits (45 to 400Hz)
V dc
Range 600V
Resolution 0.1 V
Accuracy 1% ±5 digits
Ohms
Range 600/6,000/60,000 Ω
Resolution 0.1/1/10
Accuracy 1% ±5 digits
µA
Range 200 µA
Resolution 0.1 µA
Accuracy 1% ±4 digits
Contact temperature
Range 14 to 752°F (10 to 400°C)
Resolution 0.1 C/F
Accuracy 1% ±8 digits
Capacitance
Range 100.0/1000 µF
Resolution 0.1/1 µF
Accuracy 1% ±4 digits
Click here for complete specifications on the Fluke 902 FC

What's included with the Fluke 902 FC

  • Clamp Meter
  • TL75 Test Leads
  • 80BK Integrated DMM Temperature Probe
  • 2 x Alkaline Batteries
  • Soft Carrying Case
  • User Manual
  • Statement of Calibration
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements
