Fluke 9103-A-156 Field Dry-Well Insert A, miscellaneous, cold side

Model: 9103-A-156 | UPC: 095969128582

Fluke 9103-A-156 Field Dry-Well Insert A, miscellaneous, cold side-


Downloads: manual

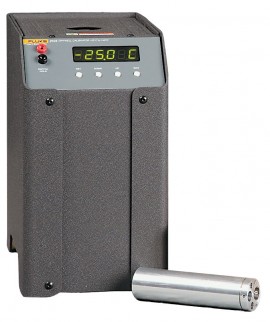

Fluke 9103-A-156 Field Dry-Well Insert A, miscellaneous, cold side

Model: 9103-A-156

Cover below-ambient temperatures as low as -13°F (-25°C) with this field dry-well. This unit reaches 32°F (0°C) in just eight minutes, and 212°F (100°C) in six minutes. Additionally, it features wells of 116" (1.6 mm), 18" (3.2 mm), 316" (4.8 mm), 14" (6.35 mm), 38" (9.5 mm), and 12" (12.7 mm).

Cover below-ambient temperatures as low as -13°F (-25°C) with this field dry-well. This unit reaches 32°F (0°C) in just eight minutes, and 212°F (100°C) in six minutes. Additionally, it features wells of 116" (1.6 mm), 18" (3.2 mm), 316" (4.8 mm), 14" (6.35 mm), 38" (9.5 mm), and 12" (12.7 mm).

Your Price $4020.00 USD
Availability 2 to 3 Weeks
Quantity

Add In-House Traceable Calibration to your 9103-A-156

Add In-House Traceable Calibration to your 9103-A-156


Fluke 9103-A-156 Offers

Features

  • Lightweight and very portable
  • Accuracy to ±0.25°C
  • Easy to recalibrate

Fluke 9103-A-156 Specifications

Range –13 to 284°F (–25 to 140°C) at 23°C ambient
Accuracy ±0.25°C (holes greater than ¼" [6.35 mm]: ±1°C)
Stability ±0.02°C at -13°F (–25°C)
±0.04°C at 284°F (140°C)
Well-to-Well Uniformity ±0.1°C between similarly sized wells
Heating Times 18 minutes from ambient to 284°F (140°C)
Cooling Times 20 minutes from ambient to -13°F (–25°C)
Stabilization Time 7 minutes
Immersion Depth 4.875" (124 mm)
Inserts Insert A, B, C, or D included (specify when ordering)
Outside Insert Dimensions 1.25 x 488" (31.8 x 124 mm)
Computer Interface RS-232 included with free Interface-it software
Power 115 V AC (±10%), 1.3 A or 230 V AC (±10%), 0.7 A, switchable, 50/60 Hz, 150 W
Wells 116" (1.6 mm), 18" (3.2 mm), 316" (4.8 mm), 14" (6.35 mm), 38" (9.5 mm), and 12" (12.7 mm)
Dimensions 5.63 x 10.25 x 9.63" (143 x 261 x 245 mm)
Weight 12 lbs (5.7 kg)
NIST-Traceable Certificate Data at -13°F (–25°C), 32°F (0°C), 77°F (25°C), 122°F (50°C), 167°F (75°C), 212°F (100°C), and 284°F (140°C)

What's included with the Fluke 9103-A-156

  • Dry-Well
  • RS-232 Software
  • Interface-It Software

Click on a category to view a selection of compatible accessories with the Fluke 9103-A-156 Field Dry-Well Insert A, miscellaneous, cold side.

Fluke 9316 Carrying Case for the Fluke 9103 9316
Carrying Case for the 9103 Dry Block Temperature Calibrator.




Fluke 3103-6 Dry Block Insert D for the Fluke 9103 Dry Block Calibrator 3103-6
Insert D for the 9103 Dry Block Temperature Calibrator has three pairs of metric sized wells.




Fluke 3103-2 Dry Block Insert A for the Fluke 9103 Dry Block Calibrator 3103-2
Insert A handles a full range of probe sizes with a single well of each size (1/16", 1/8", 3/16", 1/4", 3/8", 1/2").




Fluke 3103-3 Dry Block Insert B for the Fluke 9103 Dry Block Calibrator 3103-3
Insert B features two wells each of 3/8", 1/4", and 3/16" in diameter for doing comparison calibrations.




Fluke 3103-4 Dry Block Insert C for the Fluke 9103 Dry Block Calibrator 3103-4
Insert C has six 1/4" diameter wells for multiple probe calibrations.
