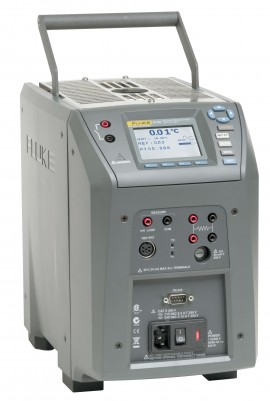

    Fluke 9142-A-P-156 Low Temp Process Field Metrology Well

    Model: 9142-A-P-156 | UPC: 095969419444

    Fluke 9142-A-P-156 Low Temp Process Field Metrology Well-

    Downloads: datasheet manual

    Fluke 9142-A-P-156 Low Temp Process Field Metrology Well

    Model: 9142-A-P-156

    This unit has a built-in two channel thermometer readout that measures PRTs, RTDs, thermocouples, and 4-20mA transmitters which includes the 24V loop supply to power the transmitter.

    This unit has a built-in two channel thermometer readout that measures PRTs, RTDs, thermocouples, and 4-20mA transmitters which includes the 24V loop supply to power the transmitter.

    Your Price $10589.00 USD
    Availability 3 to 4 Weeks
    Quantity

    Traceable Calibration Certificate Icon

    Traceable Calibration Certificate for your 9142-A-P-156 Low Temp Process Field Metrology Well

    Traceable Calibration Certificate Icon

    Traceable Calibration Certificate for your 9142-A-P-156 Low Temp Process Field Metrology Well

    Recommended Accessories

    Fluke Z Insert (Model 9142-INSZ) for 9142 Metrology Wells, Blank-

    Fluke Z Insert (Model 9142-INSZ) for 9142 Metrology Wells, Blank

    9142-INSZ

    Fluke T Insert (Model 9142-INST) for 9142 Metrology Wells, Test-

    Fluke T Insert (Model 9142-INST) for 9142 Metrology Wells, Test

    9142-INST

    Fluke G Insert (Model 9142-INSG) for 9142 Metrology Wells, EA Test-

    Fluke G Insert (Model 9142-INSG) for 9142 Metrology Wells, EA Test

    9142-INSG

    Fluke F Insert (Model 9142-INSF) for 9142 Metrology Wells, Metric Comparison Misc Holes with 0.25in Hole-

    Fluke F Insert (Model 9142-INSF) for 9142 Metrology Wells, Metric Comparison Misc Holes with 0.25in Hole

    9142-INSF

    Fluke E Insert (Model 9142-INSE) for 9142 Metrology Wells, Metric Misc Holes with 0.25in Hole-

    Fluke E Insert (Model 9142-INSE) for 9142 Metrology Wells, Metric Misc Holes with 0.25in Hole

    9142-INSE

    Fluke D Insert (Model 9142-INSD) for 9142 Metrology Wells, Metric Comparison Holes-

    Fluke D Insert (Model 9142-INSD) for 9142 Metrology Wells, Metric Comparison Holes

    9142-INSD

    Fluke C Insert (Model 9142-INSC) for 9142 Metrology Wells, 0.25in Holes-

    Fluke C Insert (Model 9142-INSC) for 9142 Metrology Wells, 0.25in Holes

    9142-INSC

    Fluke B Insert (Model 9142-INSB) for 9142 Metrology Wells, Imperial Comparison Holes-

    Fluke B Insert (Model 9142-INSB) for 9142 Metrology Wells, Imperial Comparison Holes

    9142-INSB

    Fluke A Insert (Model 9142-INSA) for 9142 Metrology Wells, Imperial Misc Holes-

    Fluke A Insert (Model 9142-INSA) for 9142 Metrology Wells, Imperial Misc Holes

    9142-INSA

    Fluke 9142-CASE for Field Metrology Wells-

    Fluke 9142-CASE for Field Metrology Wells

    9142-CASE

    Fluke 9142-A-P-156 Low Temp Process Field Metrology Well Offers

    Features

    • Each process version provides built-in two-channel thermometer readout that measures PRTs, RTDs, thermocouples, and 4-20 mA transmitters which includes the 24V loop supply to power the transmitter
    • Accuracy ranges from ±0.01°C to ±0.07°C depending on the measured temperature
    • Accepts an ITS-90 reference PRT that contains individual calibration constants that reside in a memory chip located inside the sensor housing, so sensors may be used interchangeably
    • Second channel is user-selectable for 2-, 3-, or 4-wire RTDs, thermo-couples, or 4-20 mA transmitters
    • With 24V loop power, you are able to power and measure the trans-mitter current while sourcing and measuring temperature thus allowing for the measurement of as-found and as-left data in one self-contained calibration tool
    • Onboard non-volatile memory for documentation of up to 20 tests
    • Each test can be given a unique alphanumeric ID and will record block temperature, reference temperature, UUT values, error, date, and time which can be viewed via the front panel or exported using Interface-it software (included)
    • Stability indicator visually and audibly tells you the Field Metrology Well is stable to the selectable criteria
    • Preprogrammed calibration routines are stored in memory for easy recall, and all inputs are easily accessible via the front panel of the instrument

    Applications

    Ideal for the following applications: Laboratory, Education, R&D, Calibration Labs, Field Calibration, Industrial Process

    Fluke 9142-A-P-156 Specifications

    Temperature Range -13 to 302°F (-25 to 150°C )
    Accuracy ±0.2°C (full range)
    Stability ±0.01°C (full range)
    Radial Uniformity ±0.01°C (full range)
    Axial Uniformity at 1.6" (40 mm) ±0.05°C (full range)
    Hysteresis 0.025
    Heating Time 23 minutes
    Cooling Time 15 mins to -25°C
    Immersion Depth 6" (150 mm)
    Insert O.D. 1.18" (30 mm)
    Power Supply 100-115V AC (±10%) 50/60Hz, 632W
    230V AC (±10%) 50/60Hz, 575W
    Dimensions 11.4 x 7.3 x 11.6" (290 x 185 x 295mm)
    Weight 8.2 kg (18 lb)
    General Specifications
    Reference Characterization 4-wire, ITS-90, CVD, IEC-751, resistance
    Reference Therm. Accuracy ±0.010°C at -25°C
    ±0.015°C at 0°C
    ±0.020°C at 50°C
    ±0.025°C at 150°C
    ±0.030°C at 200°C
    ±0.40°C at 350°C
    ±0.050°C at 420°C
    ±0.70°C at 660°C
    Reference Resistance Range 0 to 400Ω
    Resistance Accuracy 0-25Ω: ±0.002Ω
    25-400Ω: ±60 ppm
    RTD Characterization 4-wire PRT (2-, 3-wire RTD with jumpers only), PT-100 (385), (JIS), (3926), Ni-12, resistance
    RTD Therm. Accuracy Ni-120: ±0.1°C at 0°C
    Pt-100 (385): ±0.02°C at 0°C
    Pt-100 (3926): ±0.02°C at 0°C
    Pt-100 (JIS): ±0.02°C at 0°C
    RTD Resistance Range 0 to 400Ω
    RTD Resistance Accuracy 0-25Ω: ±0.002Ω
    25-400Ω: ±80 ppm
    T/C Therm. Accuracy J: ±0.07°C at 660°C
    K: ±0.08°C at 660°C
    T: ±0.08°C at 400°C
    E: ±0.7°C at 660°C
    R: ±1.4°C at 660°C
    S: ±1.0°C at 660°C
    M: ±1.4°C at 660°C
    L: ±0.7°C at 660°C
    U: ±0.75°C at 660°C
    N: ±0.9°C at 660°C
    C: ±1.1°C at 660°C
    T/C mV Range -10 to 75 mV
    Voltage Accuracy -10 to 50 mV: ±0.01 mV
    50 to 75 mV: ±250 ppm
    Cold Junction Compensation ±0.5°C (ambient 13 to 33°C)
    mA Current Range Cal. 4-22mA, spec. 4-24mA
    mA Accuracy 0.02% reading + 2µV
    Loop Power 24-28V DC
    Temperature Coefficient Range ±0.005% per °C
    Click here for complete specifications on the Fluke 9142-A-P-156

    What's included with the Fluke 9142-A-P-156

    • Fluke 9142-A-P-156 Low Temp Process Field Metrology Well

    Fluke 9142-A-P-156 Videos

    datasheet for the Fluke 9142-A-P-156 Low Temp Process Field Metrology Well manual for the Fluke 9142-A-P-156 Low Temp Process Field Metrology Well

    Click on a category to view a selection of compatible accessories with the Fluke 9142-A-P-156 Low Temp Process Field Metrology Well.

    Fluke Z Insert (Model 9142-INSZ) for 9142 Metrology Wells, Blank 9142-INSZ
    Use this Z insert with your existing 9142 metrology well.



    Fluke T Insert (Model 9142-INST) for 9142 Metrology Wells, Test 9142-INST
    Use this T insert with your existing 9142 metrology well.



    Fluke G Insert (Model 9142-INSG) for 9142 Metrology Wells, EA Test 9142-INSG
    Use this G insert with your existing 9142 metrology well.



    Fluke F Insert (Model 9142-INSF) for 9142 Metrology Wells, Metric Comparison Misc Holes with 0.25in Hole 9142-INSF
    Use this F insert with your existing 9142 metrology well. The insert comes equipped with metric comparison misc holes for compatibility.



    Fluke E Insert (Model 9142-INSE) for 9142 Metrology Wells, Metric Misc Holes with 0.25in Hole 9142-INSE
    Use this E insert with your existing 9142 metrology well. The insert comes equipped with metric misc holes for compatibility.



    Fluke D Insert (Model 9142-INSD) for 9142 Metrology Wells, Metric Comparison Holes 9142-INSD
    Use this D insert with your existing 9142 metrology well. The insert comes equipped with metric comparison holes for compatibility.



    Fluke C Insert (Model 9142-INSC) for 9142 Metrology Wells, 0.25in Holes 9142-INSC
    Use this C insert with your existing 9142 metrology well. The insert comes equipped with 0.25in holes for compatibility.



    Fluke B Insert (Model 9142-INSB) for 9142 Metrology Wells, Imperial Comparison Holes 9142-INSB
    Use this B insert with your existing 9142 metrology well. The insert comes equipped with imperial comparison holes for compatibility.



    Fluke A Insert (Model 9142-INSA) for 9142 Metrology Wells, Imperial Misc Holes 9142-INSA
    Use this A insert with your existing 9142 metrology well. The insert comes equipped with imperial misc holes for compatibility.



    Fluke TB25 Tool Bucket Organizer Bag, 5.2 gal TB25
    Durable and rugged, this tool bucket organizer bag has a 5.2-gallon capacity that can be relied on to protect and safely carry a variety of test tools and accessories. With its waterproof hard bottom shell, this versatile organizer has a total of 28 pockets that can fit hand tools, DMMs, clamp meters, test probes, and more.



    Fluke 9142-CASE for Field Metrology Wells 9142-CASE
    Field Metrology Well Case.



    Ask a question about Fluke 9142-A-P-156 Low Temp Process Field Metrology Well
