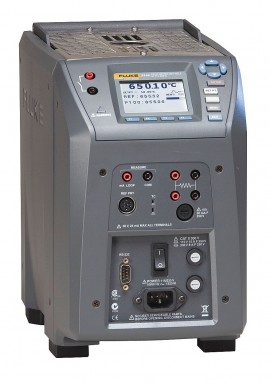

The Fluke 9144-A-156 is a portable field metrology well for temperature calibration from 50 to 660°C (122 to 1220°F). It supplies a stable heat source for use in industrial environments or the laboratory and includes the 9144-INSA insert A with assorted imperial holes.
Use the well as a temperature source for comparison calibrations, thermocouple checks, and temperature-transmitter sensor calibration. Reference thermometers and electrical readout instruments are used separately as required by the calibration procedure.
This is the standard, non-process model. The built-in two-channel thermometer readout, 4–20 mA measurement, 24 V loop supply, and onboard storage of up to 20 test records are features of the separate -P process versions, not the 9144-A-156.
Features
Applications
| Base Unit Specifications | |
| Temperature Range at 73.4°F (23°C) | 122 to 1220°F (50 to 660°C) |
| Display Accuracy | ±0.35°C at 50°C ±0.35°C at 420°C ±0.5°C at 660°C |
| Stability | ±0.03°C at 50°C ±0.04°C at 420°C ±0.05°C at 660°C |
| Axial Uniformity at 1.6" (40 mm) | ±0.05°C 50°C ±0.35°C at 420°C ±0.5°C at 660°C |
| Radial Uniformity | ±0.02°C at 50°C ±0.05°C at 420°C ±0.10°C at 660°C |
| Loading Effect (with a 0.25" (6.35 mm) Reference Probe and Three 0.25" (6.35 mm) Probes) | ±0.015°C at 50°C ±0.025°C at 420°C ±0.035°C at 660°C |
| Hysteresis | 0.1 |
| Operating Conditions | 32 to 122°F (0 to 50°C), 0% to 90% RH (non-condensing) |
| Environmental Conditions (For All Specifications Except Temperature Range) | 55.4 to 91.4°F (13 to 33°C) |
| Immersion (Well) Depth | 5.9" (150 mm) |
| Insert OD | 0.96" (24.4 mm) |
| Heating Time | 15 min: 122 to 1220°F (50 to 660°C) |
| Cooling Time | 25 min: 1220 to 212°F (660 to 100°C) 35 min: 1220 to 122°F (660 to 50°C) |
| General Specifications | |
| Resolution | 0.01° |
| Display | LCD, °C or °F user-selectable |
| Power Requirements | (±10%), 50/60 Hz, 1800 W |
| Computer Interface | RS-232 interface |
| Calibration | NVLAP accredited calibration included |
| Automation | Use the 1586A Super-DAQ to automate temperature sensor calibration |
| Dimensions | 11.4 x 7.3 x 11.6" (290 x 185 x 295 mm) |
| Weight | 17 lbs (7.7 kg) |
