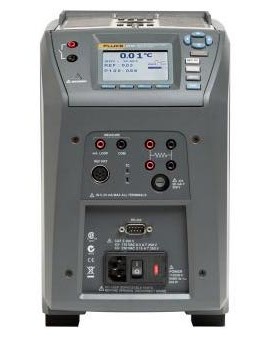

Fluke 9144-F-P-156 Field Metrology Well with F Insert (Model 9144-INSF) and Process Electronics, 50 to 660°C

Model: 9144-F-P-156 | UPC: 95969420525

Fluke 9144-F-P-156 Field Metrology Well with F Insert (Model 9144-INSF) and Process Electronics, 50 to 660°C-


Downloads: manual

Fluke 9144-F-P-156 Field Metrology Well with F Insert (Model 9144-INSF) and Process Electronics, 50 to 660°C

Model: 9144-F-P-156

Designed to be lightweight, portable and fast, this field metrology well comes with an F insert and has process electronics. The metrology well is made for a variety of field applications, such as transmitter loop calibrations, comparison calibrations and thermocouple sensor checks.

Designed to be lightweight, portable and fast, this field metrology well comes with an F insert and has process electronics. The metrology well is made for a variety of field applications, such as transmitter loop calibrations, comparison calibrations and thermocouple sensor checks.

Your Price $7848.00 USD
Availability 2 to 3 Weeks
Quantity

Fluke 9144-F-P-156 Offers

It has a built-in gradient-temperature compensation (patent pending) that adjusts control characteristics to ensure stable performance in unstable environments.

Features

  • Lightweight, portable, and fast
  • Cool to -25°C in 15 minutes and heat to 660°C in 15 minutes
  • Built-in 2-channel readout for PRT, RTD, thermocouple, 4-20mA current
  • True reference thermometry with accuracy to ±0.01°C
  • On-board automation and documentation
  • Metrology performance in accuracy, stability, uniformity, and loading

Fluke 9144-F-P-156 Specifications

Temperature Range at 23°C 122 to 1,220°F (50 to 660°C)
Display Accuracy ±0.35°C at 50°C
±0.35°C at 420°C
±0.5°C at 660°C
Operating Conditions 0 to 50°C, 0 to 90% RH (non-condensing)
Immersion (Well) Depth 5.9in (150mm)
Resolution 0.01°
Display LCD, °C or °F (user-selectable)
Size (H x W x D) 11.4 x 7.3 x 11.6in (290 x 185 x 295mm)
Weight 17lbs (7.7kg)
Power Requirements 100 to 115V (±10%) 50/60Hz, 1,400W; 230V (±10%), 50/60Hz, 1,800W
Computer interface RS-232 (9930 Interface-it control software included)

What's included with the Fluke 9144-F-P-156

  • Users Manual
  • Technical Manual on CD
  • Serial Cable
  • 9930, Interface-it Software
  • Report of Calibration
  • Test Leads
  • Insert Removal Tool
  • 6-Pin DIN Connector for Reference Probe

Fluke Metrology Wells: Overview


This video will serve as an introduction and overview of the Fluke metrology wells. These units are used to calibrate a variety of different temperature sensors. Additionally, it provides you metrology performance in a field environment.

Click on a category to view a selection of compatible accessories with the Fluke 9144-F-P-156 Field Metrology Well with F Insert (Model 9144-INSF) and Process Electronics, 50 to 660°C.

Fluke F Insert (Model 9144-INSF) for 9144 Metrology Wells, Metric Comparison Misc Holes with 0.25in Hole 9144-INSF
With metric comparison misc holes and a 0.25in hole, this F insert is made to work with the 9144 field metrology well.
