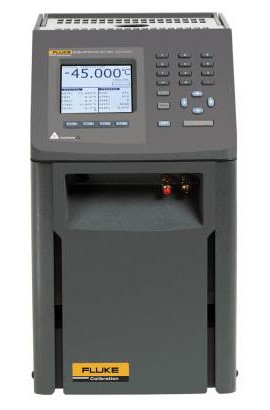

Fluke 9170-A-156 Metrology Well Calibrator with "A" insert, -49 to 284°F

Model: 9170-A-156 | UPC: 95969293846

Fluke 9170-A-156 Metrology Well Calibrator with "A" insert, -49 to 284°F-

Fluke 9170-A-156 Metrology Well Calibrator with "A" insert, -49 to 284°F

Model: 9170-A-156

The well achieves a low temperature of -49°F (-45°C) in normal room conditions, and it is stable to ±0.005°C over its full temperature range (up to 284°F [140°C]) and has an immersion depth of 6.3" (160 mm). With axial uniformity of ±0.02°C and radial uniformity of ±0.01°C, it is perfect for a variety of pharmaceutical and other applications.

The well achieves a low temperature of -49°F (-45°C) in normal room conditions, and it is stable to ±0.005°C over its full temperature range (up to 284°F [140°C]) and has an immersion depth of 6.3" (160 mm). With axial uniformity of ±0.02°C and radial uniformity of ±0.01°C, it is perfect for a variety of pharmaceutical and other applications.

Your Price $12378.00 USD
Availability 2 to 3 Weeks
Quantity

Add In-House Traceable Calibration add to your 9170-A-156

Add In-House Traceable Calibration add to your 9170-A-156


Fluke 9170-A-156 Offers

Features

  • Accurate enough for lab use, and rugged and portable enough to take anywhere
  • Best-performing industrial heat sources (accuracy, stability, uniformity)
  • Display accuracy: Temperature gradients, loading effects, and hysteresis have been minimized to make the calibration of the display much more meaningful
  • Stability: Stable to ±0.005°C over their full range
  • Axial and radial uniformity
  • Hysteresis
  • Large LCD display
  • Numeric keyboard
  • On-screen menus

Applications

  • Pharmaceutical
  • Laboratory

Fluke 9170-A-156 Specifications

Range (at 23°C Ambient) -49 to 284°F (-45 to 140°C)
Display Accuracy ±0.1°C (full range)
Stability ±0.005°C (full range)
Axial Uniformity (60 mm) ±0.1°C at -45°C
±0.04°C at -35°C
±0.02°C at 0°C
±0.07°C at 140°C
Radial Uniformity ±0.01°C full range
Well Depth 6.3" (160 mm)
Display LCD, °C or °F (user-selectable)
Power 115 VAC (±10%), or 230 VAC (±10%), 50/60 Hz, 550 W
Computer Interface RS-232
Traceable Calibration Data at -45°C, 0°C, 50°C, 100°C and 140°C
Dimensions 14.4 x 8 x 12.7" (366 x 203 x 323 mm)
Weight 31.5 lbs (14.2 kg)

What's included with the Fluke 9170-A-156

  • Metrology Well Calibrator
  • Insert "A"

Click on a category to view a selection of compatible accessories with the Fluke 9170-A-156 Metrology Well Calibrator with "A" insert, -49 to 284°F.

Fluke A Insert (Model 9170-INSA) for 9170 Metrology Wells, Aluminum, Misc Holes 9170-INSA
Add this A insert to your existing 9170 metrology well. The insert is crafted from aluminum and has misc holes.




Fluke 9170-CASE Carrying Case for 9170-3 Metrology Wells 9170-CASE
Safely carry your 9170-3 metrology well using this case, which is constructed with a foam-lined interior for added protection and recessed steel handles to aid transport.




Fluke 9170-DCAS Transportation Case with Wheels for 9170-3 Metrology Wells 9170-DCAS
Compatible with 9170-3 metrology wells, this wheeled transit case has a high-impact plastic exterior and a foam-lined interior to help keep your unit safe. The built-in wheels simplify transport.
