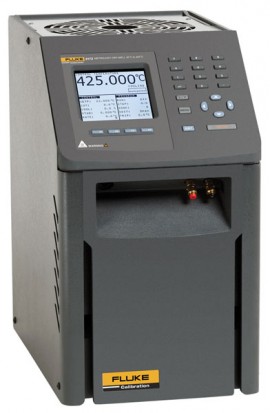

Fluke 9172-DW-156 Field Metrology Well (No Insert), 35 to 425°C

Model: 9172-DW-156 | UPC: 095969413626

Fluke 9172-DW-156 Field Metrology Well (No Insert), 35 to 425°C-


Downloads: datasheet manual

Fluke 9172-DW-156 Field Metrology Well (No Insert), 35 to 425°C

Model: 9172-DW-156

Reduce stem conduction errors at high temperatures by using this field metrology well, which has 8in (203mm) of depth immersion. With exceptional accuracy to ±0.2°C at 425°C, this metrology well comes without an insert.

Reduce stem conduction errors at high temperatures by using this field metrology well, which has 8in (203mm) of depth immersion. With exceptional accuracy to ±0.2°C at 425°C, this metrology well comes without an insert.

Your Price $9805.00 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your add 9172-DW-156

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your add 9172-DW-156

Fluke 9172-DW-156 Offers

Accurate enough for lab use, and rugged and portable enough to take anywhere.

Features

  • Best-performing industrial heat sources (accuracy, stability, uniformity) in the world
  • Immersion depth to 8in (203mm)
  • Optional ITS-90 reference input reads PRTs to ±0.006°C
  • Temperature range from -49 to 1,292°F (-45 to 700°C)

Fluke 9172-DW-156 Specifications

Range (at 23°C Ambient) 95 to 797°F (35 to 425°C)
Display Accuracy ±0.1°C: 35 to 100°C
±0.15°C: 100 to 225°C
±0.2°C: 225 to 425°C
Stability ±0.005°C: 35 to 100°C
±0.008°C: 100 to 225°C
±0.01°C: 225 to 425°C
Well Depth 8in (203mm)
Display LCD, °C or °F (user-selectable)
Size (H x W x D) 14.4 x 8 x 12.7in (366 x 203 x 323mm)
Weight 29lbs (13.2kg)
Power 115VAC (±10%), or 230VAC (±10%), 50/60Hz, 1,025W
Computer Interface RS-232
Traceable Calibration Data at 100°C, 150°C, 250°C, 350°C and 425°C
Click here for complete specifications on the Fluke 9172-DW-156

What's included with the Fluke 9172-DW-156

  • Fluke 9172-DW-156 Field Metrology Well (No Insert), 35 to 425°C

Click on a category to view a selection of compatible accessories with the Fluke 9172-DW-156 Field Metrology Well (No Insert), 35 to 425°C.

Fluke Z Insert (Model 9172-INSZ) for 9172 Metrology Wells, Brass, Blank 9172-INSZ
This brass Z insert is made to fit a 9172 metrology well.




Fluke F Insert (Model 9172-INSF) for 9172 Metrology Wells, Brass, Metric Comparison Holes with 0.25in Ref Hole 9172-INSF
This brass F insert is made to fit a 9172 metrology well and equipped with metric comparison holes with a 0.25in ref hole.




Fluke E Insert (Model 9172-INSE) for 9172 Metrology Wells, Brass, Misc Metric Holes with 0.25in Ref Hole 9172-INSE
This brass E insert is made to fit a 9172 metrology well and equipped with misc metric holes with a 0.25in ref hole.




Fluke D Insert (Model 9172-INSD) for 9172 Metrology Wells, Brass, Metric Comparison Holes 9172-INSD
This brass D insert is made to fit a 9172 metrology well and equipped with metric comparison holes.




Fluke C Insert (Model 9172-INSC) for 9172 Metrology Wells, Brass, 0.25in Holes 9172-INSC
This brass C insert is made to fit a 9172 metrology well and equipped with 0.25in holes.




Fluke B Insert (Model 9172-INSB) for 9172 Metrology Wells, Brass, Comparison Holes 9172-INSB
This brass B insert is made to fit a 9172 metrology well and equipped with comparison holes.




Fluke A Insert (Model 9172-INSA) for 9172 Metrology Wells, Brass, Misc Holes 9172-INSA
This brass A insert is made to fit a 9172 metrology well and equipped with misc holes.




Fluke 9170-DCAS Transportation Case with Wheels for 9170-3 Metrology Wells 9170-DCAS
Compatible with 9170-3 metrology wells, this wheeled transit case has a high-impact plastic exterior and a foam-lined interior to help keep your unit safe. The built-in wheels simplify transport.




Fluke 9170-CASE Carrying Case for 9170-3 Metrology Wells 9170-CASE
Safely carry your 9170-3 metrology well using this case, which is constructed with a foam-lined interior for added protection and recessed steel handles to aid transport.




Fluke TB25 Tool Bucket Organizer Bag, 5.2 gal TB25
Durable and rugged, this tool bucket organizer bag has a 5.2-gallon capacity that can be relied on to protect and safely carry a variety of test tools and accessories. With its waterproof hard bottom shell, this versatile organizer has a total of 28 pockets that can fit hand tools, DMMs, clamp meters, test probes, and more.
