Designed to simplify the troubleshooting process without compromising safety and reliability, this True-RMS wireless current clamp works seamlessly with the 283 FC digital multimeter. In addition, this clamp ensures precise and reliable readings for a wide range of applications including solar, electrical systems, and industrial equipment.
Designed to simplify the troubleshooting process without compromising safety and reliability, this True-RMS wireless current clamp works seamlessly with the 283 FC digital multimeter. In addition, this clamp ensures precise and reliable readings for a wide range of applications including solar, electrical systems, and industrial equipment.
With its non-contact design, the clamp allows for safe connections without the need to touch live wires, enabling you to close the clamp in a cabinet and take measurements from a safe distance. It carries a CAT III 1500 V, CAT IV 1000 V rating that matches the safety rating of the 283 FC digital multimeter.
Wireless connectivity allows for convenient transmission of measurements, eliminating the hassle of tangled wires and allowing you to install the current clamp in an enclosure so you can safely measure at a distance. The clamp has a thin jaw design to ensure easy access to combiner boxes and tight spaces, enhancing overall efficiency in your measurement process.
Features
Wireless Current Clamp

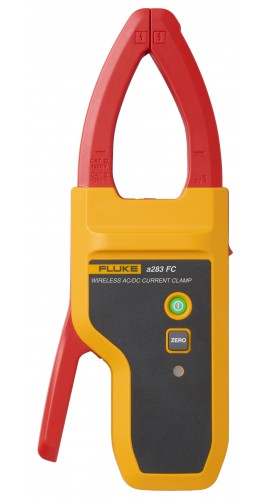

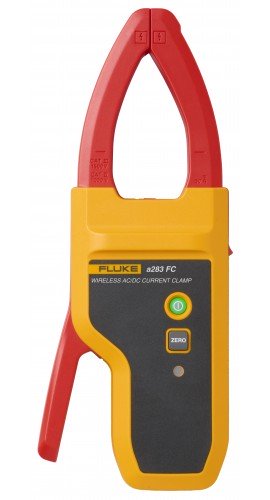

The a283 FC True-RMS wireless current clamp is designed to simplify the troubleshooting process without compromising on safety and reliability. It can measure both AC and DC current up to 60 A, ensuring precise and reliable readings for a wide range of applications including solar installations, electrical systems, and industrial equipment.
With its non-contact design, the clamp allows for safe connections without the need to touch live wires, enabling you to close the clamp in a cabinet and take measurements from a safe distance. It carries a CAT III 1500 V, CAT IV 1000 V rating that matches the safety rating of the 283 FC.
Wireless connectivity allows for convenient transmission of measurements, eliminating the hassle of tangled wires and allowing you to install the current clamp in an enclosure so you can safely measure at a distance. The clamp has a thin jaw design to ensure easy access to combiner boxes and tight spaces, enhancing overall efficiency in your measurement process.
Applications
Function | |
AC Current (True-RMS) | Range: 60 A Resolution: 0.01 A Accuracy: 1.5% + 0.15 A, 45 to 500 Hz |
DC Current | Range: 60 A Resolution: 0.01 A Accuracy: 1.5% + 0.15 A |
Environmental Specifications | |
Operating Temperature | -10 to 60°C (14 to 140°F) |
Storage Temperature | -30 to 70°C (-22 to 158°F) |
Humidity (without condensation) | 0 to 90%, 5 to 30°C (41 to 86°F) 0 to 75%, 30 to 40°C (86 to 104°F) 0 to 45%, 40 to 60°C (104 to 140°F) |
Protection | |
Electromagnetic compatibility | IEC 61326-1, IEC 61326-2-2, Portable, Group 1, Class A |
Overvoltage category | CAT III 1500 V, CAT IV 1000 V |
Agency approvals | ETL (AMER and EMEA), CSA (APAC), CE, UK CA |
Drop test | 2 m (6.5') drop test |
Ingress protection | IP52 |
Features | |
LED indicator | Indicates wireless connection and data transmission status |
Battery indicator | Indicates battery status |
Power Key | Power On/Off |
Zero Key | A DC zeroing function |
Mechanical and General Specifications | |
Jaw opening | 34 mm (1.34") |
Battery life | > 80 hours typical (Alkaline, 2 AAA) |
Dimensions | 22.6 x 9.1 x 4.2 cm (8.9 x 3.6 x 1.7") |
Weight | 0.375 kg (13.2 oz) |
