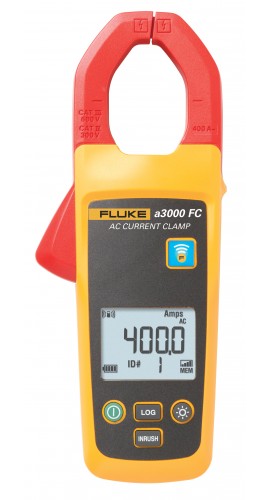

Fluke A3000 FC Wireless AC Current Clamp Module

Model: A3000FC | UPC: 095969692045

Fluke A3000 FC Wireless AC Current Clamp Module-


Downloads: datasheet

Fluke A3000 FC Wireless AC Current Clamp Module

Model: A3000FC

The A3000 FC Wireless Current Clamp Meter is a fully functional True-RMS current clamp meter that wirelessly relays AC measurements to any Fluke Connect system.

The A3000 FC Wireless Current Clamp Meter is a fully functional True-RMS current clamp meter that wirelessly relays AC measurements to any Fluke Connect system.

Sale Price $179.99 USD
Regular Price $199.99 USD
Availability 1 in Stock
Quantity

Add In-House Traceable Calibration to your A3000FC

Add In-House Traceable Calibration to your A3000FC


Fluke A3000-FC Offers

Features

  • True-RMS ac clamp meter
  • Measure up to 400A AC
  • Use as a standalone meter or as part of the system
  • Logging function for recording and saving up to 65,000 readings
  • Inrush function
  • Compatible Models: Fluke 3000 FC DMM, Fluke Ti200/300/400 Infrared Camera, PC via optional pc3000 FC Adapter, Fluke Connect Mobile app

Fluke A3000-FC Specifications

Range 0.5 A to 400.0 A
Resolution 0.1 A
Accuracy 400.0 A: 2 % ± 5 digits (10 Hz to 100 Hz), 2.5 % ± 5 digits (100 Hz to 500 Hz)
Inrush Max displayed reading: 999.9A
Crest factor (50 Hz/60 Hz) 3 at 500 A, 2.5 at 600 A, 1.42 at 1000 A, add 2 % for C.F. > 2
LCD w/backlight 3½ digits
Log rate/interval 1 sec minimum/adjustable by PC
Battery type 2 AA, NEDA 15 A, IEC LR6/td>
Battery life 400 hours
Memory Record up to 65,000 readings
RF communications 2.4 GHZ ISM Band
RF communication range Open air, unobstructed: Up to 20 m
Obstructed, sheetrock wall: Up to 6.5 m
Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
Operating temperature -10 °C to +50 °C
Storage temperature -40 °C to +60 °C
Temperature coefficient Add 0.1 x (specified accuracy)/°C (< 18 °C or > 28 °C)
Operating humidity 90% at 35 °C, 75 % at 40 °C, 45 % at 50 °C
Altitude Operating: 2,000 m
Storage: 12,000 m
EMC EN 61326-1:2006
Safety compliance IEC 61010-1, 600 V CAT III, 3rd edition Pollution Degree 2
Safety rating CAT III 600 V
Certifications CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
Ingress Protection (IP) rating IP30
Pollution Degree 2
Jaw opening 34 mm (1.33 in)
Size (HxWxD) 20.3 cm x 7.49 cm x 3.55 cm (8 in x 2.95 in x 1.4 in)
Weight .22 kg (8 oz)
Click here for complete specifications on the Fluke A3000FC

What's included with the Fluke A3000FC

  • Fluke A3000 FC Wireless AC Current Clamp Module
  • This product features Fluke Connect Technology

    See it. Save it. Share it. All the facts, right in the field.

    Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

    Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

    Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


    Fluke Connect Features:

    • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
    • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
    • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
    • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
    • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

    Fluke Connect Benefits:

    • Maximize uptime
    • Minimize maintenance costs
    • Better assessments with accurate records
    • Higher efficiency with less walking around; no notebook and excel needed
    • Share troubleshooting knowledge live
    • Create and share helpful content in the field
    • Access to Fluke digital product manuals means no need to carry manuals in the field
    • Keep organized manually entered measurements

    Click on a category to view a selection of compatible accessories with the Fluke A3000 FC Wireless AC Current Clamp Module.

    Fluke Connect 3000FC Wireless Digital Multimeter 3000FC
    Part of the Fluke Connect team of wireless tools, capable of communicating with up to three modules at one time. Features a measurement range from 0.5A to 400A.




    Fluke A3001 FC Wireless iFlex AC Current Module A3001FC
    The A3001 FC Wireless iFlex AC Current Module that wirelessly relays measurements to any Fluke Connect system.




    Fluke A3002 FC Wireless AC/DC Current Module A3002FC
    Wirelessly receives and pass measurements from the i410 or i1010 AC/DC clamps accessories and other Fluke Connect™ enabled master units with this wireless AC/C current module.




    Fluke V3000 FC Wireless True-rms AC Voltage Module V3000FC
    The V3000 FC Wireless Voltage Module measures true-rms AC voltage and relays measurements to any Fluke Connect master units




    Fluke V3001 FC Wireless DC Voltage Module V3001FC
    The V3001 FC Wireless Voltage Module measures DC voltage and relays measurements to any Fluke Connect master units




    Fluke T3000 FC Wireless K-Type Temperature Module T3000-FC
    Share test data through the Fluke Connect app when you pair this k-type temperature module with any other Fluke Connect remote modules. This allows you to access live readings without being exposed to the live panel. Additionally, you can identify temperature differences between the three phases.




    Fluke pc3000 FC Adapter and Software PC3000-FC
    This USB adapter and software allows your PC or laptop to communicate with up to 10 Fluke Connect wireless devices.
