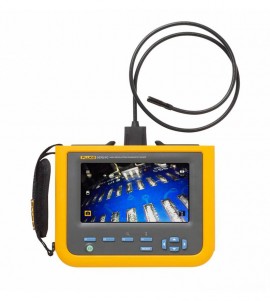

Fluke DS703 FC High Resolution Diagnostic Videoscope with Fluke Connect™, 7" Touch Screen

Model: DS703 FC | Order No: DS703FC | UPC: 095969865722

Fluke DS703 FC High Resolution Diagnostic Videoscope with Fluke Connect™, 7" Touch Screen-

Fluke DS703 FC High Resolution Diagnostic Videoscope with Fluke Connect™, 7" Touch Screen

Model: DS703 FC | Order No: DS703FC

This model has true 720p resolution video recording, a 7" capacitive touch screen and incorporates the Fluke Connect™ system. It also features an adjustable LED light, digital zoom for quality images and is great for accurate inspections in difficult to reach spaces.

This model has true 720p resolution video recording, a 7" capacitive touch screen and incorporates the Fluke Connect™ system. It also features an adjustable LED light, digital zoom for quality images and is great for accurate inspections in difficult to reach spaces.

Your Price $2499.99 USD
Availability 1 in Stock
Quantity

Fluke DS703 FC Offers

Gritty, industrial, expensive equipment?

The benefits of a videoscope are well known. But Industrial inspections require a powerful diagnostic videoscope designed to stand up to the dirtiest, most harsh environments.

Fluke Diagnostic Videoscopes put high-resolution images in the palm of your hand.

Save time with the Fluke Connect™ system

Wirelessly sync images directly from your diagnostic videoscope to the Fluke Connect™ system, and attach to an asset record or work order. Having access to maintenance records simultaneously at the inspection site and from the office or an off-site location enables faster decision making and real-time collaboration between team members. You can also live stream images or videos from the diagnostic videoscope to a smartphone or PC.

Features

  • True 720p video
  • 7” capacitive touch screen
  • Wi-Fi capability
  • 1280 x 720 resolution
  • Rugged and designed to stand up to the dirtiest, most harsh environments
  • Intuitive user interface
  • Easy to navigate button technology
  • High definition probe with dual-view camera
  • Processing speeds that render a smooth, clear, consistent image
  • Macro to micro zoom function
  • Adjustable lighting to capture the best image
  • Up is Up™ technology for an appropriate orientation, regardless of the probe location (1.2 meter probe only)
  • Fluke Connect™ allows you to save and share images directly from the diagnostic videoscope

Applications

  • Quality Control
  • Industrial Inspection and Monitoring
  • Production
  • Aviation
  • Automotive

Fluke DS703 FC Specifications

Videoscope Probe
Length 1.2 m (3.94 ft)
Type Detachable, semi-ridged, waterproof, immersible to 1 meter or more in depth
Diameter 8.5 mm (0.33")
Lighting Adjustable LED, on front, one side
Illumination 53 Lux
Up is Up™ Technology Appropriate image display, regardless of the orientation of the probe, 8.5 mm, 1.2 m probe only
Camera
Resolution 1200 x 720 (864,000 pixels)
Digital zoom Adjustable from 1x to 8x zoom
Field of view 68°
Depth of field 25 mm to infinity
Video Resolution 720 p
Rotation 180°
Streaming Video Via HDMI and Fluke Connect™
General Specifications
Color palettes Visible light, grayscale or inverted
Internal memory 6 GB
Dimensions 6.98 x 8.85" (17.73 x 22.48 cm)
Weight 1.95 lbs (0.88 Kg)

What's included with the Fluke DS703 FC

  • Diagnostic Videoscope
  • 1.2m/8.5mm semi-ridgid probe
  • USB Cable
  • TPAK Magnetic Hanger
  • Hand Strap
  • Neck Strap
  • AC Power Supply/Battery Charger
  • Protective EVA Case
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements

Click on a category to view a selection of compatible accessories with the Fluke DS703 FC High Resolution Diagnostic Videoscope with Fluke Connect™, 7" Touch Screen.

Fluke 3.8MM/1M Probe Scope with Probe, 3.8 mm x 1 m 3.8MM/1M Probe
1 Meter long, 3.8mm videoscope probe comes with a forward view camera. Compatible with the DS701 and DS703 FC Videoscopes. Supports all features of the Videoscopes except Up is Up™.




Fluke 8.5MM/3M Probe Scope with Probe, 8.5 mm x 3 m 8.5MM/3M Probe
3 Meter long, 8.5mm videoscope probe comes with a dual view camera. Compatible with the DS701 and DS703 FC Videoscopes. Supports all features of the Videoscopes except Up is Up™.




Fluke 5.5MM/1M Probe Scope with Probe, 5.5 mm x 1 m 5.5MM/1M Probe
1 Meter long, 5.5mm videoscope probe comes with a dual view camera. Compatible with the DS701 and DS703 FC Videoscopes. Supports all features of the Videoscopes except Up is Up™.




Fluke 8.5MM/1.2M Probe Scope with Probe, 8.5 mm x 1.2 m 8.5MM/1.2M Probe
1.2 Meter long, 8.5mm videoscope probe comes with a dual view camera. Compatible with the DS701 and DS703 FC Videoscopes. Supports all features of the Videoscopes except Up is Up™.




Fluke 9MM/20M Probe Scope with Probe, 9 mm x 20 m 9MM/20M Probe
20 Meter long, 9mm videoscope probe comes with a forward view camera. Compatible with DS701 and DS703 FC Videoscopes. Supports all features of the Videoscopes except Up is Up™.
