Fluke Norma 6004 Portable Power Analyzer, 4-channel

Model: NORMA 6004 | UPC: 095969918725

Fluke Norma 6004 Portable Power Analyzer, 4-channel-


Downloads: datasheet manual

Fluke Norma 6004 Portable Power Analyzer, 4-channel

Model: NORMA 6004

Gives you the freedom to make high accuracy power measurements, this battery-powered analyzer is designed for portability and allows you to make measurements directly at the load, in nearly any environment. Includes four measurement channels, giving it the capability to measure three-phase power and DC power simultaneously.

Gives you the freedom to make high accuracy power measurements, this battery-powered analyzer is designed for portability and allows you to make measurements directly at the load, in nearly any environment. Includes four measurement channels, giving it the capability to measure three-phase power and DC power simultaneously.

Your Price $11999.99 USD
Availability 2 to 3 Weeks
Quantity

Fluke NORMA 6004 Offers

Accurate enough for the lab, built for the field

Designed for portability, the lightweight, battery-powered analyzer eliminates the need to carry large, fragile, expensive analyzers into the field, allowing you to make measurements directly at the load in nearly any environment. By measuring directly at the load, you can discover how the equipment operates under real-world conditions, with real-world variables, not just at a test bench or in the lab.

Combined with wide-band frequency response, it makes it easier than ever to make measurements on hard to access systems such as inverter drive systems, DC-AC and AC-DC power conversion systems, and electric motors without removing them from service. Making these measurements in the field simplifies the troubleshooting, and performance measurement processes without sacrificing uptime, giving you more accurate test results, that will enable you to discover whether your loads are operating as effectively and efficiently as they should be.

Features

  • Key measurements: Voltage, current, active power, reactive power, apparent power, power factor, and harmonics with associated values
  • High accuracy and wide bandwidth - 0.1% measurement accuracy and 500 kHz bandwidth
  • Highly portable and easily installed in tight spaces - only 3.78" (9.6 cm) thick
  • Operate continuously for up to 10 hours without an external power supply using the 5000 mAh Li-ion internal battery
  • Measure safely - safety rated for CAT III 1000V, CAT IV 600 V environments
  • Measure three phase power and DC output power at the same time with four channels, with voltage and current inputs on each channel
  • 0.1% accuracy, 500 kHz bandwidth, 200 ks/s sample rate so you can rely on the power conversion system measurements you take no matter what distortion may be present
  • USB and RS485 interface and open communication protocol for easy system integration and software platform flexibility
  • Combine two analyzers to enable simultaneous measurement of multiple circuits for even more troubleshooting capability - configurable to 6 or 8 channels using dual analyzer synchronization
  • View critical data in the field on the main display - Meter, Waveform, Harmonics up to the 100th, Vector and Trend
  • Ensure high common-mode rejection and allow flexible configurations according to measurement requirements using the electrically isolated channels
  • User adjustable measurement rate from 100 ms to 1 s with continuous logging via 32GB of onboard storage
  • Easy in-field set up using the integrated front panel or a remote PC connection (USB or RS485)
  • Online measuring, data download and analysis with included PC software (Fluke Power Analyzer Software)
  • Full remote control of the connected instrument using Fluke Power Analyzer Software and a local USB or long-distance RS485 connection

Applications

  • R&D and third party labs
  • Renewable energy/clean tech
  • Manufacturing

Fluke NORMA 6004 Specifications

Key Specifications
Inputs 4 Voltage + 4 Current
Sample Rate 200 ks/s
Measurement Update Rate 100 ms, 200 ms, 500 ms, 1s
Dual Analyzer Synchronization Mode Able to extend to 6, 7 or 8 channels (using multiple instruments)
Data Trend Storage Rate As per display rate
Main Function Meter, Scope, Harmonic, Phasor, Trend
Measuring Parameters RMS, DC Component, AC Component, Rectified Mean, Peak Value, Peak-Peak, Crest Factor, Form Factor, Fundamental Component, Fundamental Content, Harmonic Distortion, Harmonic Content, Harmonic Factor for voltages and currents, Active Power, Reactive Power, Apparent Power, Power Factor, Phase Shift, Efficiency, Impedance, Electric Energy, Charge/Discharge capacity (Ah), Frequency
Electrical
Range 10, 100, 1000 V
Crest Factor CF ≤2
Maximum Voltage 10% overload
Input Impedance 2 MΩ/10 pF (typical)
Temperature Coefficient 0.05 (Spec)/k
Bandwidth 1000 V range: 500 kHz
100 V range: 200 kHz
10 V range:100 kHz
CMRR 120 dB at 50/60 Hz
Accuracy (% Reading + % Range)
Range - 1000 V DC: 0.1 + 0.1
AC (10 Hz to 1 kHz): 0.1 + 0.1
AC (10 kHz): 5 + 0.5
Range - 100 V DC: 0.1 + 0.1
AC (10 Hz to 1 kHz): 0.1 + 0.1
AC (10 kHz): 5 + 0.5
Range - 10 V DC: 0.1 + 0.2
AC (10 Hz to 1 kHz): 0.1 + 0.2
AC (10 kHz): 5 + 0.5
Current Crest factor: CF ≤2
Temperature coefficient: 0.05 x (Spec)/k
Overload capacity: 10% overload
CMRR: 120 dB at 50/60 Hz
Shunt (Current Input) Measuring range: 0.1, 1, 10 A
Input impedance: 0.025 Ω (typical)
Bandwidth: 10 A - 500 kHz; 1 A - 200 kHz; 0.1 A - 100 kHz
BNC (Voltage Input) Range: 0.1, 1, 10 V
Input impedance: 100 kΩ/100 pF (typical)
Bandwidth: 10 V - 500 kHz; 1 V - 200 kHz; 0.1 V - 100 kHz
Range - 10 A DC: 0.1 + 0.2
AC (10 Hz to 1 kHz): 0.1 + 0.1
AC (10 kHz): 5 + 1
Range - 1 A DC: 0.1 + 0.5
AC (10 Hz to 1 kHz): 0.1 + 0.2
AC (10 kHz): 5 + 1
Range - 0.1 A DC: 0.1 + 2
AC (10 Hz to 1 kHz): 0.1 + 1
AC (10 kHz): 5 + 1
Range - 10 V DC: 0.1 + 0.1
AC (10 Hz to 1 kHz): 0.1 + 0.1
AC (10 kHz): 5 + 1
Range - 1 V DC: 0.1 + 0.2
AC (10 Hz to 1 kHz): 0.1 + 0.1
AC (10 kHz): 5 + 1
Range - 0.1 V DC: 0.1 + 1
AC (10 Hz to 1 kHz): 0.1 + 0.5
AC (10 kHz): 5 + 1
General Specifications
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -22 to 140°F (-30 to 60°C)
Operating Humidity Non-condensing (<50°F [10°C])
≤90% RH (at 50 to 86°F [10 to 30°C])
≤75% RH (at 86 to 104°F [30 to 40°C])
≤45% RH (at 104 to 122°F [40 to 50°C])
Altitude Operating: 6561.68' (2000 m)
Storage: 39,370.1' (12,000 m)
Display 5.7", TFT LCD, 640 x 480
Battery BP 291, 10.8 V/5000 mAh, 54Wh IEC 62133, UN38.3
Operating time: 10 Hours (on battery)
Communication Interface USB/RS485
Storage Capacity 32GB
PC Software Fluke Power Analyzer software
Ingress Protection IP 50 (Terminals mated) according to IEC 60529
Safety IEC 61010-1: Pollution Degree 2
IEC 61010-2-030: CAT IV 600V, CAT III 1000 V
EMC IEC 61326-1: Industrial
IEC 61326-2-2
Dimensions 11.73 x 8.46 x 3.78" (298 x 215 x 96 mm)
Weight 7.7 lbs (3.5 kg)
Click here for complete specifications on the Fluke NORMA 6004

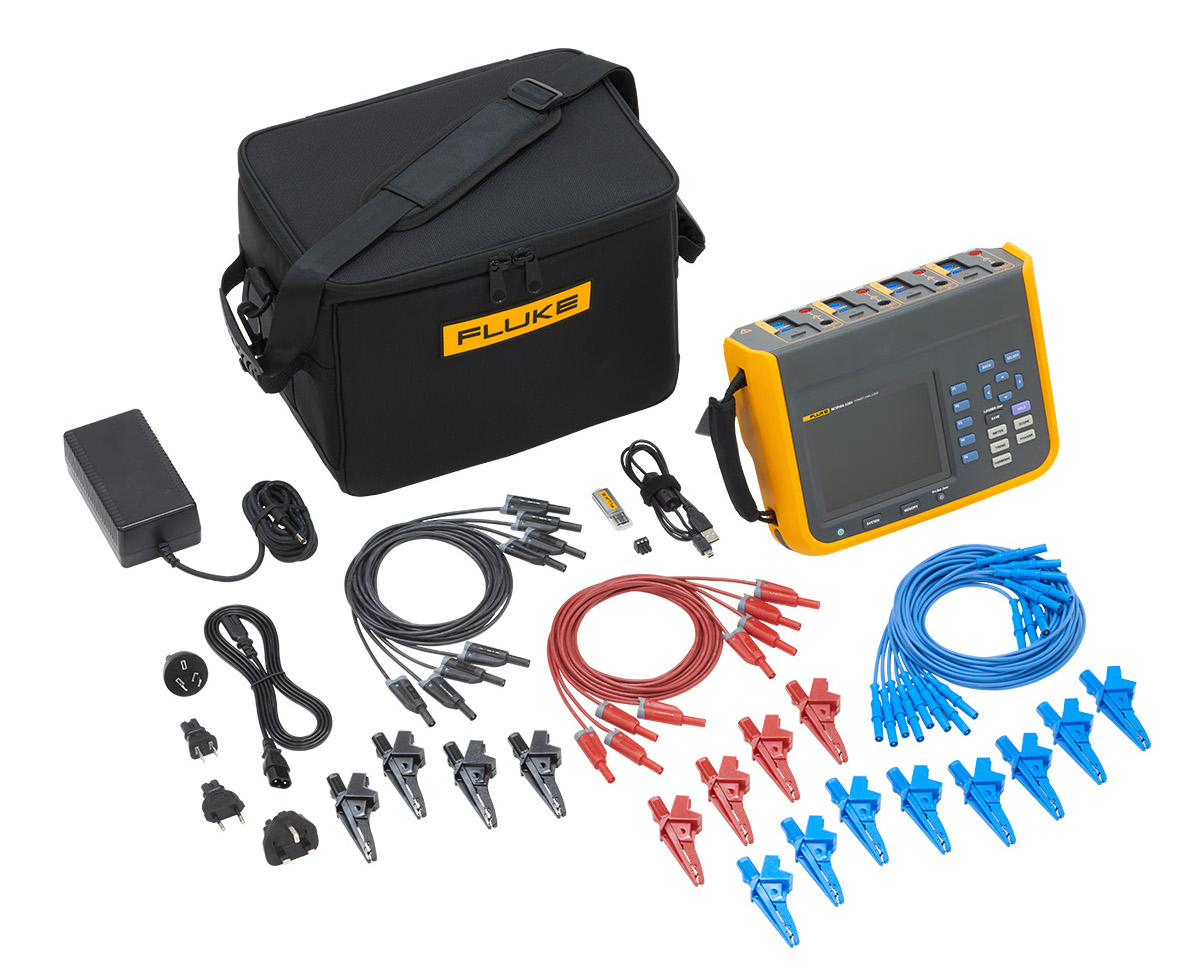

What's included with the Fluke NORMA 6004

  • Power Analyzer
  • Test Leads:
    • 4 x Red
    • 4 x Black
    • 8 x Blue
  • Alligator Clips:
    • 4 x Red
    • 4 x Black
    • 8 x Blue
  • USB (Mini B) Cable
  • RS-485/Synchrony Adapter
  • Soft Carrying Case
  • Power Supply Adapter
  • Power Cord
  • USB Flash Drive for PC SW and User Manual
