Fluke PQ400/B Power Quality Window

Model: PQ400/B | UPC: 095969906425

Fluke PQ400/B Power Quality Window-


Downloads: datasheet

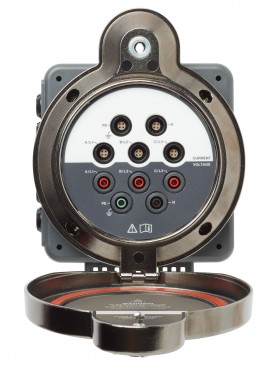

Fluke PQ400/B Power Quality Window

Model: PQ400/B

Featuring a power quality window that enables the connection of three-phase measurement equipment to energized panels, without the need to open the panel door or wear supplemental personal protective equipment (PPE). It has a safety rating of CAT IV, 600V and CAT III 1000 V rating according to IEC61010-2-30.

Featuring a power quality window that enables the connection of three-phase measurement equipment to energized panels, without the need to open the panel door or wear supplemental personal protective equipment (PPE). It has a safety rating of CAT IV, 600V and CAT III 1000 V rating according to IEC61010-2-30.

Your Price $1499.99 USD
Availability 2 to 3 Weeks
Quantity

Fluke PQ400/B Offers

Compliance without compromise. Safety without sacrifice.

The PQ400 gives you access to the critical power quality and energy data you need, all while decreasing testing time and helping you to maintain safety.

  • Reduce the risk of arc-flash and electrocution, while increasing the safety of your personnel
  • Decrease maintenance costs and reduce downtime by making critical power quality and energy measurements without opening the panel door, enabling logging and monitoring at any time—without disrupting operations
  • Reduce work permit requirements and processes by reducing the hazards associated with taking measurements on open panels, saving time and effort
  • Increase measurement efficiency and reduce the need for arcflash PPE, saving time, increasing efficiency and increasing operator comfort

Features

  • Permanently connected voltage and current sensors located inside the electrical panel allow you to make power quality and energy measurements using the external access points without opening the panel door, reducing operator risk
  • Voltage and current connections for three-phase voltages, neutral and ground cover most measurement scenarios
  • Automatic probe detection for 1740 and 1730 series power quality and energy loggers and compatible clamps, eliminates the need to open cabinet to check the clamp model
  • Full 360° rotation allows the PQ400 window to be oriented in any direction
  • Simple installation using a step drill bit and electro-hydraulic hole punch (114.3 mm, 4.5" diameter)
  • CAT IV, 600 V and CATIII 1000 V rating according to IEC61010-2-30
  • Compatibility with standard 4mm shrouded safety-socket voltage test leads makes it easier to make voltage connections, and increases safety by reducing the risk of accidentally touching live electrical components

How It Works

The PQ400 electrical measurement window is a permanently installed interface that provides technicians with near instant access to electrical panels for making critical power quality and energy measurements. The PQ400 installs using a standard step drill bit and electro-hydraulic hole punch (114.3 mm, 4.5" hole diameter), and allows users to make three-phase voltage, current and ground connects covering most measurement configurations. Once installed users can simply unlock the window cover, lift the lid, and connect the voltage leads of the logger or analyzer. Then, connect the leads for the current sensors and start making critical measurements. Once complete, simply remove the voltage and current connections from the front panel interface and lock the window lid, leaving the internal connections in place for future use.

Applications

  • Electrical
  • Datacenters
  • Waster water
  • Healthcare
  • Heavily automated plants
  • Semiconductor manufacturing
  • Power utilities
  • Petrochemical

Fluke PQ400/B Specifications

Voltage
Input Number of inputs: 5 (A/L1, B/L2, C/L3, N, and earth/ground)
Wire gauge: Solid/flexible: 0.25 to 1.5 mm2 (AWG 24 to AWG 16)
Voltage: Max. 1000 V
Fuse: 2 A 1000 V 1.5 A2s, 10 kA IR (A/L1, B/L2, C/L3, N)
Output Connectors: 5 x 4 mm safety terminals, 3x red for A/L1, B/L2, C/L3, 1 x black for N, 1x green for earth/ground
Load current: Max. 1 A rms
Current
Input/Output Connectors: 5 x 4-pin circular compatible with Fluke 354x FC, 173x, and 174x power and energy loggers (these loggers can all be powered from the measured voltage up to 500 V)
General Specifications
Maximum Voltage Between any
Voltage Terminal and Earth Ground
1000 V
Maximum Voltage Between any
Current Terminal and Earth Ground
30 V
Safety General: IEC 61010-1: pollution degree 2
Measurement: IEC 61010-2-030: CAT IV 600 V/CAT III 1000 V
Supported Electrical Enclosures Enclosure: UL 50/NEMA environmental type 1 (Type 12 when PQ400 cover is closed)
Panel thickness: Max. 3.5 mm (10 gauge)
Operating/Storage Temperature -13 to 140°F (-25 to 60°C)
Rating IEC 60529: IP67 with cover closed, IP50 with cover opened and all connectors attached
Vibration IEC 60068-2-6 , MIL-PRF28800F: Random vibration class 2
Dimensions Outside: 5.8 x 7.36 x 0.9" (148 x 187 x 23 mm [148 x 370 x 19 mm with cover opened])
Inside: 5.51 x 6.22 x 2.28" (140 x 158 x 58 mm)
Weight 4.6 lbs (2.1 kg)
Click here for complete specifications on the Fluke PQ400/B

What's included with the Fluke PQ400/B

  • Fluke PQ400/B Power Quality Window
  • Webinar: Introduction to Portable Precision Power Analyzers with Fluke


    This wideband precision analyzer is accurate enough for the lab, yet it's built for the field. Offering you more freedom than ever before to make high accuracy power measurements wherever you need to. Whether in the lab, or in the field. Designed for portability and eliminates the need to carry large, fragile, expensive analyzers into the field, allowing you to make measurements directly at the load in nearly any environment. By measuring directly at the load, you can discover how the equipment operates under real-world conditions, with real-world variables, not just at a test bench or in the lab.
    During our 1-hour webinar, we've covered:
    - The new Fluke Norma 6000 Power Analyzer for accurate measurements at frequencies from DC to 500kHz.
    - It is not a Power Quality Analyzer.
    - It is a Power Analyzer for accurate measurements at frequencies from DC to 500kHz.
    - It is designed to be used in the field, its rugged, battery-operated, lightweight, and suited to use outside of a laboratory environment.
    - You’ll learn why it can help you, where and how it is used.

    Click on a category to view a selection of compatible accessories with the Fluke PQ400/B Power Quality Window.
