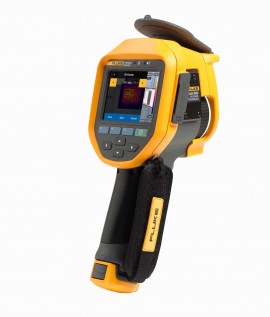

This professional camera features SuperResolution which captures and combines 4x the data to create a 640 x 480 image. Features an increased sensitivity to visualize temperature differences, and NETD is ≤0.025 at 30°C target temperature (25mK).
This professional camera features SuperResolution which captures and combines 4x the data to create a 640 x 480 image. Features an increased sensitivity to visualize temperature differences, and NETD is ≤0.025 at 30°C target temperature (25mK).
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
Features
Increased Sensor Sensitivity
The additional sensitivity to the camera's internal sensor helps you capture smaller surface temperature differences, making it easier to visualize results. With the enhanced measurement accuracy and the wider dynamic temperature range up to 1500°C with NETD as low as 25 mK, you can collect precise information for making informed decisions that boost your company's return on investment (ROI).
Sharper Images for Diagnosing Issues
Improvements to the firmware lead to sharper onscreen infrared images with clearer color differentiation, giving you a stronger visual indicator of temperature differentials. The infrared camera show deviations from standard temperatures and relay issues to your team using multiple Delta-T (ΔT) markers. You'll spot and analyze temperature-related issues with more certainty.
Updated User Interface
The improved, user-tested, touch screen interface is faster and easier to use than ever. The display integrates a contemporary design, featuring multiple rectangular markers in-camera. It helps your crew quickly identify min/max temperatures for an area of the equipment or equipment array. To further enhance the visual display, the cameras have a new palette and wider color array of yellows and greens to help distinguish heat differences.
More Flexibility to Visualize Targets with Smart Lenses
Compatible with more Fluke infrared smart lenses. Whether the thermal inspection calls for macro, telephoto, or wide-angle, you can attach the appropriate lens to better capture your target. Fluke smart lenses are interchangeable between compatible cameras, without calibration.
Share Thermal Images with SmartView® and Fluke Connect®
With the improvements to the firmware and thermal sensitivity of this infrared camera, you are better prepared to create comprehensive and professional thermal inspection reports. SmartView gives thermal investigators a simple solution for viewing infrared images on their mobile devices or desktop computers. Fluke Connect offers an easy way to share thermal images where they can be viewed on a smartphone or tablet allowing team members to collaborate and analyze equipment status in real-time.
Rotating Machinery
Technicians can use the thermal imaging capabilities of the handheld infrared camera to discover and diagnose various issues, including cooling problems and impeded airflow, bearing issues on motors, and many mechanical problems. It captures clear and accurate images with advanced focus technologies, helping technicians confidently.
Applications
Focus is one of the most important aspects of thermography, and an out of focus image can give you data that can lead to misdiagnosis – costing you thousands. With this infrared camera, worrying about focus is now obsolete. With MultiSharp™ focus, you get images automatically focused throughout the field of view, even if you start from a completely blurry target. That's because the camera takes multiple images and combines them to give you clear, accurate focus on targets near and far. Simply point and shoot.
Manual focus – only front pipe in focus.
MultiSharp™ Focus produces an image focused throughout the field of view.
Manual focus – only 1 motor in focus.
MultiSharp™ Focus – front and back motors in focus.
With the push of a button, a built-in laser distance meter instantly calculates and displays the distance to your designated target, and the focus engine immediately adjusts the focus.
Passive autofocus systems may only capture the near-field subject (fence).
LaserSharp® Auto Focus captures your designated target.
It brings 640 x 480 SuperResolution to the superior infrared camera. Now you can see even more detail with 4x the pixel data. SuperResolution captures multiple images and combines them to create a 640 x 480 image.
Regular resolution.
SuperResolution. Get 4x the pixel data – a 640 x 480 image.
Infrared lenses can make it possible to inspect targets that would be challenging to see with a standard IR lens due to their size and distance. Compatible with 2x and 4x telephoto and wide angle lenses.
Standard lens.
4x Telephoto infrared smart lens.
You can wirelessly sync images directly from your camera to the Fluke Connect® system, and attach to an asset record or work order. Having access to maintenance records simultaneously at the inspection site and from the office or an off-site location enables faster decision making and real time collaboration between team members. You can also live stream the camera display to your smartphone or PC and remotely control the camera.
Capture and save measurements from your wireless-enabled test tools to the Fluke Connect® app on your smartphone.
Asset analysis dashboard: Easily compare complex data.
| Key Features | |
| Detector Resolution | 320 x 240 (76,800 pixels) or 640 x 480 with SuperResolution |
| SuperResolution | Yes, in software. Captures and combines 4x the data to create a 640 x 480 image |
| IFOV with Standard Lens (Spatial Resolution) | 1.31mRad, D:S 753:1 |
| Field of View | 24°H x 17°V (Standard Lens) |
| Minimum Focus Distance | Approx. 6" (15 cm) (Standard Lens) |
| MultiSharp™ Focus | Yes, focused near and far, throughout the field of view |
| LaserSharp® Auto Focus | Yes, for consistently in-focus images |
| Touchscreen Display | 3.5" (landscape) 640 x 480 LCD |
| Thermal Sensitivity (NETD) | ≤0.025°C at 30°C target temp (25mK) |
| Frame Rate | 60 Hz |
| Digital Zoom | 2x and 4x |
| Temperature Measurement | |
| Temperature Measurement Range (not calibrated below -10°C) |
14 to 2732°F (-10 to 1500°C) |
| Accuracy | ±2°C or 2% (at 25°C nominal, whichever is greater) |
| Color Palettes | |
| Standard | 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Ultra Contrast™ | 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| General Specifications | |
| Color Alarms (Temperature Alarms) | High temperature, low temperature, and isotherms (within range) |
| Infrared Spectral Band | 7.5 to 14 μm (long wave) |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -4 to 122°F (-20 to 50°C) without batteries |
| Spot Temperature | Hot and cold spot markers |
| Safety | IEC 61010-1: Overvoltage category II, Pollution Degree 2 |
| Electromagnetic Compatibility | IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A |
| Dimensions | 10.9 x 4.8 x 6.5" (27.7 x 12.2 x 16.7 cm) |
| Weight | 2.3 lb (1.04 kg) |
Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.
Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.
Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.
Click on a category to view a selection of compatible accessories with the Fluke Ti450 PRO 60Hz Infrared Camera, 60 Hz, 320 x 240.
| Key Features | |
| Detector Resolution | 320 x 240 (76,800 pixels) or 640 x 480 with SuperResolution |
| SuperResolution | Yes, in software. Captures and combines 4x the data to create a 640 x 480 image |
| IFOV with Standard Lens (Spatial Resolution) | 1.31mRad, D:S 753:1 |
| Field of View | 24°H x 17°V (Standard Lens) |
| Minimum Focus Distance | Approx. 6" (15 cm) (Standard Lens) |
| MultiSharp™ Focus | Yes, focused near and far, throughout the field of view |
| LaserSharp® Auto Focus | Yes, for consistently in-focus images |
| Touchscreen Display | 3.5" (landscape) 640 x 480 LCD |
| Thermal Sensitivity (NETD) | ≤0.025°C at 30°C target temp (25mK) |
| Frame Rate | 60 Hz |
| Digital Zoom | 2x and 4x |
| Temperature Measurement | |
| Temperature Measurement Range (not calibrated below -10°C) |
14 to 2732°F (-10 to 1500°C) |
| Accuracy | ±2°C or 2% (at 25°C nominal, whichever is greater) |
| Color Palettes | |
| Standard | 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Ultra Contrast™ | 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| General Specifications | |
| Color Alarms (Temperature Alarms) | High temperature, low temperature, and isotherms (within range) |
| Infrared Spectral Band | 7.5 to 14 μm (long wave) |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -4 to 122°F (-20 to 50°C) without batteries |
| Spot Temperature | Hot and cold spot markers |
| Safety | IEC 61010-1: Overvoltage category II, Pollution Degree 2 |
| Electromagnetic Compatibility | IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A |
| Dimensions | 10.9 x 4.8 x 6.5" (27.7 x 12.2 x 16.7 cm) |
| Weight | 2.3 lb (1.04 kg) |
Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.
Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.
Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.
Click on a category to view a selection of compatible accessories with the Fluke Ti450 PRO 60Hz Infrared Camera, 60 Hz, 320 x 240.
