Perform five essential lighting tests in under 30 seconds to pinpoint problems and verify operation when done. Survives on-the-job handling, and is drop-tested to survive from a 6' (2 m) ladder.
Perform five essential lighting tests in under 30 seconds to pinpoint problems and verify operation when done. Survives on-the-job handling, and is drop-tested to survive from a 6' (2 m) ladder.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
The replacement product is only available on our affiliate GlobalTestSupply.com website. Don't worry your cart and information will be brought over.
The replacement product is only available on our affiliate GlobalTestSupply.com website. Don't worry your cart and information will be brought over.
Not what you're looking for? Let’s do a search and help you find what you need.

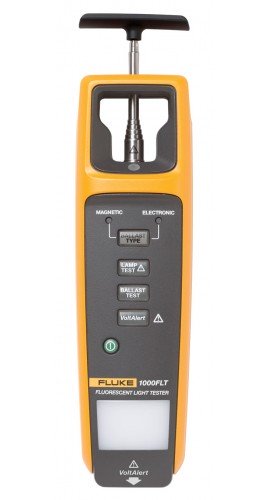

Takes the trial and error out of fluorescent light testing.
Features
Applications
| Lamp Test Max Output | 3000 V peak-peak |
| Ballast Test | 20 kHz |
| Ballast Type Discriminator | ≤10' (3 m) distance |
| Pin Continuity Test | <1 kΩ |
| NCV (VoltAlert™) | 85 to 400 V AC 45 to 67 Hz ≤4" (10 cm) distance |
| Temperature | Operating: 14 to 122°F (-10 to 50°C) Storage: -40 to 140°F (-40 to 60°C) |
| Relative Humidity | 85% maximum |
| Safety Rating | IEC 61010-1, pollution degree 2 |
| Battery | Type: 4 x AA alkaline IEC LR6 Life: 40 hours |
| Auto Power Off | 20 minutes after non-use |
| Low Battery Indicator | Power button light blinks when power is low (typically 85% of capacity depleted) |
| Operating Altitude | <2000 m |
| Electromagnetic Environment | EN 61326-1: Portable |
| Electromagnetic Compatibility | CE IEC: CISPR 11: Group 2, class A |
| Resistance to Impact | 6' (2 m) drop |
| Dimensions | 8.5 x 1.2 x 2.6" (21.5 x 3.0 x 6.5 cm) |
| Weight | 0.80 lb (0.37 kg) |
Click on a category to view a selection of compatible accessories with the Fluke 1000FLT Fluorescent Light Tester.
