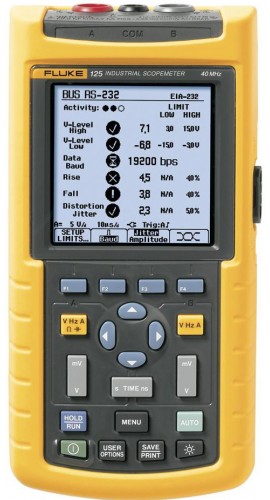

Fluke 125S Industrial ScopeMeter with Software

Model: 125/003S | UPC: 095969400978

Downloads: datasheet

Fluke 125S Industrial ScopeMeter with Software

Model: 125/003S

Features 40MHz sampling on two inputs, real-time monochrome scope, plus bus health test, power and harmonics measurements. Ideal for installing and troubleshooting field buses and motors. Includes SCC120 kit (software, communications cable and durable carry case).

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke 125B/S Industrial ScopeMeter Hand-Held Oscilloscope with AC clamp and Fluke View software, 40 MHz

Model: 125B/S | Order No: 125B/NA/S

Work with confidence with the oscilloscope that offers simplified testing, more insight, faster electro-mechanical troubleshooting, and comes with 40 MHz of bandwidth. Conveniently measures voltage, current, power waveforms and comes with the Fluke View software.

Learn More

Recommended Accessories

Fluke TL220 Suregrip Industrial Test Lead Set

TL220

Fluke 80TK Thermocouple Module

80TK

Fluke i200s AC Current Clamp

I200S

Fluke 125/003S Offers

Features

Dual-input 20MHz or 40MHz digital oscilloscope
Two 5,000 count True-RMS digital Multimeters
Dual-input TrendPlot™ paperless recorder plots and displays the actual ,minimum, maximum and average of any measurement up to 16 days with a resolution of 1.5 hours
Connect-and-View™ advanced triggering that recognizes signal patterns and automatically sets up and continuously adjusts triggering time base and amplitude
Measurements include: VDC, Vac, VAC+DC, Vpeak max, Vpeak min, Vpeak to peak, frequency, positive and negative pulse width, positive and negative duty cycle, A AC, A DC, A AC+DC (with optional probe), phase, temperature (with optional probe), dBV, and dBm into 50Ω and 600Ω
Shielded test leads for oscilloscope, resistance and continuity measurements
Cursor measurements
Full bandwidth, VPS40 10:1 40 MHz probe included
Memory save and recall of 20 instrument screens with user set-ups and user text
600V CAT III safety certified
Optically isolated RS-232 interface

Functional Specifications

Display: 10.2 cm monochrome LCD
Bandwidth: 40
Number of inputs: 2; optional isolated external Trigger through ITP120
True-RMS multimeter: Dual fully featured 5000 counts DMM
Dual input TrendPlot: Yes, with cursors
Trigger types: Connect-and-View™, free run, single shot, edge, video
Scope Envelope mode: Yes
Scope measurements: As 124 + power, VA, VAR, PF, RPM, Vpwm; THD
Bus Health Test function: For standard industry buses
Waveform mathematics: Harmonics mode

General Specifications

Power measurements: Power, VA, VAR, PF, Vpwm
Memory (screens/set-ups): 20
Safety certified (EN61010-1): 600 V CAT III (instrument and included accessories)

Fluke 125/003S Specifications

Specifications

Oscilloscope Bandwidth

40 MHz

Dual input True RMS Meter

	Vdc, Vac, Vac+Vdc, Ohms,Continuity , Diode-test
	Current, °C, °F, Capacitance, dBV, dBM, Crest Factor, Touch Hold and Zeroset

Vdc, Vac, Vac+Vdc, Ohms,Continuity , Diode-test

Current, °C, °F, Capacitance, dBV, dBM, Crest Factor, Touch Hold and Zeroset

TrendPlot Recording

	Automatic vertical scaling and time compression.
	Display the actual, MIN, MAX and AVG reading.

Automatic vertical scaling and time compression.

Display the actual, MIN, MAX and AVG reading.

Cursors

∆T, 1/∆T, V, ∆V, rise- and fall time

Real-time sample rate

25 MS/s

Inputs and digitizers

Timebase range

20 ns - 1 min/div

Input sensitivity

5 mV - 500 V/div

Trigger types

Connect-and-View™, Free Run, Single Shot, Edge, Video, External

Glitch capture

40 ns

Scope measurements

Automatic

Maximum record length

512 min/max pts per input

Memory

20 screens and setups

Environmental Specifications

Operating Temperature

0°C to 50°C

Storage Temperature

-20°C to +60°C

Operating Altitude

3,000 m

Safety Specifications

Electrical Safety

600V CAT III (EN61010-1)

Mechanical & General Specifications

Size

232 x 115 x 50 mm

Weight

1.2 kg

Warranty

3 years parts and labor (one year on accessories)

Battery Life

7 hrs using NiMH

RS-232 Interface

Optically isolated via optional PM9080 or OC4USB for interfacing to Printer or PC

Click here for complete specifications on the Fluke 125/003S

What's included with the Fluke 125/003S

Fluke AC120 Alligator clips
Fluke BB120 Shielded BNC adapter
Getting started booklet
Fluke HC120 Hook Clips
Fluke PM 8907 Battery Charger/Line Voltage Adapter
Fluke STL120 Shielded Test Lead Set
Fluke BP 120 MH
User manual (CD-ROM)
Fluke VPS40 Voltage Probe, 40 MHz, 10:1
Fluke I400s AC Current Clamp

Fluke SCC 120 includes:

Hard-shell Carrying Case
OC4USB Optically Isolated RS-232 Adapter/Cable
FlukeView for ScopeMeter Windows® software

FlukeView ScopeMeter software helps you get more out of your ScopeMeter by:

Documenting: Transfer screens, waveforms, and measurement data from the ScopeMeter to your PC for printing, or to import data to other programs.
Archiving: Store and retrieve waveforms with text annotations and create your own library for easy reference and comparison.
Analysis: Gather valuable measurement data and enable cursor measurements to reveal relationships and conditions. Extended recording of up to four user-selected measurements help you monitor and analyze slow moving signals and related events. Upload waveforms to the PC and use cursors for detailed measurements. Perform waveform analysis, including analyzing harmonics.

Windows 95/98/Me/NT4.0/2000/XP
Requires one free RS-232 port (COM port)
Requires optional PM9080 RS-232 Adapter/Cable

datasheet for the Fluke 125S Industrial ScopeMeter with Software
