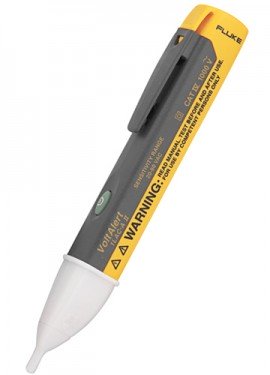

Fluke 1LAC-A-II Low Voltage Detector

Model: 1LAC-A-II | UPC: 095969290876

Fluke 1LAC-A-II Low Voltage Detector-


Downloads: datasheet manual

Fluke 1LAC-A-II Low Voltage Detector

Model: 1LAC-A-II

20-90V AC with Round-tip.

20-90V AC with Round-tip.

Your Price $32.99 USD
Availability 8 in Stock
Quantity

Fluke 1LAC-A-II Offers

The next generation VoltAlert™ AC non-contact voltage testers from Fluke are easy to use – just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there's voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home.

Features

  • Voltbeat™ technology and continuous self-test – so you always know it's working
  • Upon detection, tip glows and beeper sounds
  • CAT IV 1000 V for added protection
  • Expanded range: 90 V AC to 1000 V AC
  • 20 V to 90 V AC control circuit model also available
  • Two-year warranty
  • Batteries included
  • On/Off Button
  • Audible/Silent

Specifications

  • Batteries: 2 AAA alkaline batteries included
  • Light source: One high intensity red LED
  • Agency Approvals: c CSA us, CE, C-Tick
  • IP Rating: IP 40
  • Safety: Europe and ROW: Low voltage directive and related standards as: EN61010 respectively IEC61010 for international requirements

Fluke 1LAC-A-II Specifications

Operating principle
Senses the stead state electrostatic field produced by ac voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched off) indicates the presence of voltage
Voltage sensing ranges
Nominally, 90 V AC to 1000 V AC or 200 V AC to 1000 V AC depending on model, 45 Hz to 405 Hz; also a 20 V to 90 V control circuit model
Detector tip style Blade or round, depending on model
Light source One high intensity red LED
Agency Approvals c CSA us, CE, C-Tick
Safety Rating 1000 V, CAT IV
IP Rating IP 40
Operating Temperature  -10 °C to 50 °C
Operating humidity ranges0% to 95% (0 °C to 30 °C)
0% to 75% (30 °C to 40 °C)
0% to 45% (40 °C to 55 °C)
Operating Altitude 3000 meters
Batteries  2 AAA alkaline batteries included
Click here for complete specifications on the Fluke 1LAC-A-II

What's included with the Fluke 1LAC-A-II

  • Fluke 1LAC-A-II Low Voltage Detector
  • Customer Reviews for the Fluke 1LAC-A-II

    Ask a question about Fluke 1LAC-A-II Low Voltage Detector

    Fluke 1LAC-A-II Offers

    The next generation VoltAlert™ AC non-contact voltage testers from Fluke are easy to use – just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there's voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home.

    Features

    • Voltbeat™ technology and continuous self-test – so you always know it's working
    • Upon detection, tip glows and beeper sounds
    • CAT IV 1000 V for added protection
    • Expanded range: 90 V AC to 1000 V AC
    • 20 V to 90 V AC control circuit model also available
    • Two-year warranty
    • Batteries included
    • On/Off Button
    • Audible/Silent

    Specifications

    • Batteries: 2 AAA alkaline batteries included
    • Light source: One high intensity red LED
    • Agency Approvals: c CSA us, CE, C-Tick
    • IP Rating: IP 40
    • Safety: Europe and ROW: Low voltage directive and related standards as: EN61010 respectively IEC61010 for international requirements

    Fluke 1LAC-A-II Specifications

    Operating principle
    Senses the stead state electrostatic field produced by ac voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched off) indicates the presence of voltage
    Voltage sensing ranges
    Nominally, 90 V AC to 1000 V AC or 200 V AC to 1000 V AC depending on model, 45 Hz to 405 Hz; also a 20 V to 90 V control circuit model
    Detector tip style Blade or round, depending on model
    Light source One high intensity red LED
    Agency Approvals c CSA us, CE, C-Tick
    Safety Rating 1000 V, CAT IV
    IP Rating IP 40
    Operating Temperature  -10 °C to 50 °C
    Operating humidity ranges0% to 95% (0 °C to 30 °C)
    0% to 75% (30 °C to 40 °C)
    0% to 45% (40 °C to 55 °C)
    Operating Altitude 3000 meters
    Batteries  2 AAA alkaline batteries included
    Click here for complete specifications on the Fluke 1LAC-A-II

    What's included with the Fluke 1LAC-A-II

  • Fluke 1LAC-A-II Low Voltage Detector
