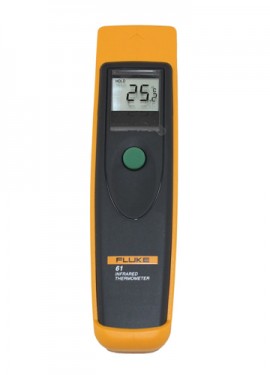

Fluke 61 Mini Handheld Infrared Thermometer

Model: 61 | UPC: 095969119030

Fluke 61 Mini Handheld Infrared Thermometer-


Downloads: manual

Fluke 61 Mini Handheld Infrared Thermometer

Model: 61

Measure temperature in hard-to-reach, hot, rotating, or dangerous situations with this infrared thermometer. This unit allows users to monitor the status of electrical motors and electrical panels, research heating, ventilation problems, and diagnose car malfunctions. Also, it provides a distance to spot ratio of 8:1.

Measure temperature in hard-to-reach, hot, rotating, or dangerous situations with this infrared thermometer. This unit allows users to monitor the status of electrical motors and electrical panels, research heating, ventilation problems, and diagnose car malfunctions. Also, it provides a distance to spot ratio of 8:1.

This product has been discontinued. Click here for the replacement model(s).


Fluke 61 Offers

Features

  • Provides easy targeting bright laser beam
  • Measures temperatures from -0 to 525°F (-18 to 275°C) with 0. 5°F (0.2°C) resolution
  • Clearly presents data at a glance on the large backlit display
  • Provides an 8:1 distance to spot ratio
  • Extends battery life with automatic sleep mode after 7 seconds
  • Battery life (alkaline) approximately 12 hours
  • Automatic sleep mode after 7 seconds of non-use extends battery life

Applications

  • Non-contact temperature

Fluke 61 Specifications

Temperature Range 0 to 525°F (-18 to 275°C)
Display Resolution 0.5°F (0.2°C)
Accuracy (Assumes Ambient Operating Temperature of 73°F (23°C)) For targets at:
30 to 525°F (-1 to 275°C) ±2% of reading
Or ±3.5°F (±2°C), whichever is greater
0 to 30°F (-18 to -1°C) ±5°F (±3°C)
Temperature Coefficient 0.2K per °C or 0.2% per °C, whichever is greater
Repeatability ± 2% of reading, or ±3.5°F (±2°C) whichever is greater
Response Time 500 mSec, 95% response
Spectral Response 7 to 18 µm
Emissivity pre-set 0.95
Ambient Operating Range 32 to 120°F (0 to 50°C)
Relative Humidity 10 to 90% RH noncondensing, at up to 120°F (50°C)
Storage Temperature -4 to 140°F (-20 to 60°C) without battery
Power 9 V Alkaline or NiCd battery
Battery Life (Alkaline) 12 hours
Distance to Spot Size 8:1
Dimensions 7.5 x 2 x 1.6" (190 x 51 x 41 mm)
Weight 0.75 lb (227 g)

What's included with the Fluke 61

  • Thermometer
  • Holster

Click on a category to view a selection of compatible accessories with the Fluke 61 Mini Handheld Infrared Thermometer.

Fluke C23 Soft Case Vinyl Carrying Case C23
Included with the Fluke 320 series.




Fluke C50 Meter Case C50
Case includes an inside pocket, belt loop and inside meter strap.








Fluke C550 Premium Tool Bag C550
Tool Bag with steel reinforced frame.




Fluke C90 Soft Carrying Case for DMM and Visual IR Thermometers C90
Zippered carrying case with inside pocket and belt loop.




Fluke H3 Clamp Meter Holster H3
A fabric holster absorbs shocks and protects the meter from rough handling. Features built-in pocket for lead storage and convenient belt-loop with snap.
