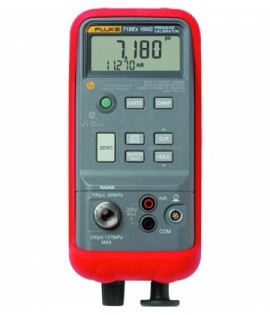

    Fluke 718Ex-30G Intrinsically Safe Pressure Calibrator

    Model: 718EX-30 | UPC: 095969241649

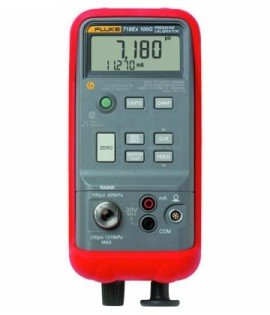

    Fluke 718Ex-30G Intrinsically Safe Pressure Calibrator-

    Downloads: datasheet manual

    Fluke 718Ex-30G Intrinsically Safe Pressure Calibrator

    Model: 718EX-30

    Intrinsically Safe Pressure Calibrator -12 to 30 PSI (0.5%FS Accuracy; 0.001 PSI Resolution).

    Intrinsically Safe Pressure Calibrator -12 to 30 PSI (0.5%FS Accuracy; 0.001 PSI Resolution).

    Your Price $5463.99 USD
    Availability 2 to 3 Weeks
    Quantity

    Traceable Calibration Certificate Icon

    Traceable Calibration Certificate for your 718EX-30 G Intrinsically Safe Pressure Calibrator

    Traceable Calibration Certificate Icon

    Traceable Calibration Certificate for your 718EX-30 G Intrinsically Safe Pressure Calibrator

    Recommended Accessories

    Fluke TL71 Premium Right Angle Test Lead Set-

    Fluke TL71 Premium Right Angle Test Lead Set

    TL71

    Fluke TL223 SureGrip Electrical Test Lead Set-

    Fluke TL223 SureGrip Electrical Test Lead Set

    TL223

    Fluke TL220 Suregrip Industrial Test Lead Set-

    Fluke TL220 Suregrip Industrial Test Lead Set

    TL220

    Fluke C789 Meter & Accessory Case-

    Fluke C789 Meter & Accessory Case

    C789

    Fluke 718EX-30 Offers

    The Fluke 718Ex Intrinsically Safe Pressure Calibrator is a powerful intrinsically safe, self contained pressure calibrator for usage in explosion endangered areas.

    Features

    • True RMS current and voltage measurements gives you accurate readings of non-sinusoidal waveforms
    • Multimeter functions include AC/DC voltage, resistance, capacitance, frequency, diode and continuity
    • Peak hold captures inrush currents and transients
    • Data hold and Max/Min functions
    • 4000-count backlit display
    • Autoranging with manual range button
    • Auto power off
    • 1.7" (43mm) jaw opening for conductors up to 750MCM or two 500MCM
    • Complete with Type K thermocouple probe, test leads, 9V battery and belt holster

    Fluke 718EX-30 Specifications

    Measurement Accuracy
    Pressure
    Fluke 718Ex 30G
    Range -830 mbar to 2 bar (internal sensor)
    Over pressure: 3x FS
    Resolution 0.0001 bar
    Accuracy 0.05% FS
    Functions Zero, Min, Max, Hold, Damp
    Note: for use with non-corrosive gasses
    Fluke 718Ex 100G
    Range -830 mbar to 7 bar (internal sensor)
    Over pressure: 2x FS
    Resolution 0.001 bar
    Accuracy 0.05% FS
    Functions Zero, Min, Max, Hold, Damp
    Note: for use with non-corrosive gasses
    Fluke 718Ex series
    via pressure module connector
    Range 29 pressure modules, 2.5 mbar to 700 bar
    Over pressure per pressure module specs
    Resolution Per pressure module specs
    Accuracy To 0.025% of full span, per pressure module specs
    Functions Zero, Min, Max, Hold, Damp
    Note: media compatibility per pressure module specs
    Source Pressure, built in pump
    Range -820 mbar to full scale
    Note Supported Pressure Units PSI, in. H2O (4°C), in. H2O (20°C), kPa, cm H2O (4°C),
    cm H2O (20°C), bar, mbar, kg/cm2, mmHg, in Hg
    Fluke 718Ex 30G
    Range -830 mbar to 2 bar (internal sensor)
      Over pressure: 3x FS
    Resolution 0.0001 bar
    Accuracy 0.05% FS
    Functions Zero, Min, Max, Hold, Damp
      Note: for use with non-corrosive gasses
    Fluke 718Ex 100G
    Range -830 mbar to 7 bar (internal sensor)
      Over pressure: 2x FS
    Resolution 0.001 bar
    Accuracy 0.05% FS
    Functions Zero, Min, Max, Hold, Damp
      Note: for use with non-corrosive gasses
    Fluke 718Ex series
      via pressure module connector
    Range 29 pressure modules, 2.5 mbar to 700 bar
      Over pressure per pressure module specs
    Resolution Per pressure module specs
    Accuracy To 0.025% of full span, per pressure module specs
    Functions Zero, Min, Max, Hold, Damp
      Note: media compatibility per pressure module specs
    Source Pressure, built in pump
    Range -820 mbar to full scale
    Note Supported Pressure Units PSI, in. H2O (4°C), in. H2O (20°C), kPa, cm H2O (4°C),
      cm H2O (20°C), bar, mbar, kg/cm2, mmHg, in Hg
    Technical Data
    Measure Accuracy
    Range 0-24 mA
    Resolution 0.001 mA
    Accuracy 0.02% rdg ± 2 counts
    Range 0-24 mA
    Resolution 0.001 mA
    Accuracy 0.02% rdg ± 2 counts
    Display
    LCD, 5 digit pressure and current simultaneous
      LCD, 5 digit pressure and current simultaneous
    Environmental Specifications
    Operating temperature
    -10°C to 55°C
      -10°C to 55°C
    Storage temperature
    -40°C to 60°C
      -40°C to 60°C
    Humidity (Without Condensation)
    95% (10°C to 30°C)
    75% (30°C to 40°C)
    45% (40°C to 50°C)
    35% (50°C to 55°C)
      95% (10°C to 30°C)
      75% (30°C to 40°C)
      45% (40°C to 50°C)
      35% (50°C to 55°C)
    Operating Altitude
    3,000 m max
      3,000 m max
    Safety Specifications
    Safety
    ATEX II 1G EEx ia IIC T4 compliant
    CSA Certification I.S. Class I,
    Div 1 Groups A-D , T4
      ATEX II 1G EEx ia IIC T4 compliant
      CSA Certification I.S. Class I,
      Div 1 Groups A-D , T4
    Mechanical & General Specifications
    Size
    216 mm L x 94 mm W x 66 mm H (with holster)
      216 mm L x 94 mm W x 66 mm H (with holster)
    Weight
    Approx. 992 g (with holster)
      Approx. 992 g (with holster)
    Warranty
    1 year
      1 year
    Shock
    1 meter drop test
      1 meter drop test
    Vibration
    Random, 2 G, 5-500 Hz
      Random, 2 G, 5-500 Hz
    Battery type
    One 9-volt alkaline battery ANSI/NEDA 1604A or IEC 6LR619V
    Battery life: 4 to 20 hours, depending on functions used
      One 9-volt alkaline battery ANSI/NEDA 1604A or IEC 6LR619V
      Battery life: 4 to 20 hours, depending on functions used
    Click here for complete specifications on the Fluke 718EX-30
