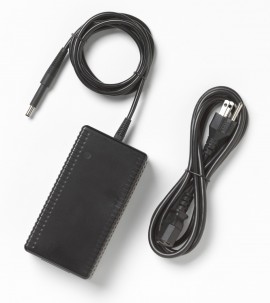

Fluke BC500 AC Power Charger

Model: BC500 | UPC: 095969765541

Fluke BC500 AC Power Charger-


Downloads: manual

Fluke BC500 AC Power Charger

Model: BC500

Replacement or AC space charger for Fluke 500 Series Battery Analyzers. Provides power cord operation and charging for Fluke 500 Series Battery Analyzers.

Replacement or AC space charger for Fluke 500 Series Battery Analyzers. Provides power cord operation and charging for Fluke 500 Series Battery Analyzers.

Sale Price $152.99 USD
Regular Price $169.99 USD
Availability 1 to 2 Weeks
Quantity

Fluke BC500 Offers

The BC500 is a universal mains-power adapter (the Adapter or Product) for measurement, control, and laboratory equipment. The Adapter is intended for operating and charging the Fluke BT500-Series Battery Testers. The Adapter is based on the switched-mode concept for high efficiency and low stand-by power consumption, and complies with level-VI requirements. It operates in a wide range of input voltages from 100 Vac up to 240 Vac nominal. A mains cord is included to make the Adapter suitable for most types of mains outlet.

Fluke BC500 Specifications

Input
Nominal input voltage 100 Vac to 240 Vac, ±10 %
Input current 0.35 A at max. load
Nominal input frequency 50 Hz to 60 Hz ±5 %
Mains Inlet IEC 60320-1 type C8
Input power, no load < 0.1 W (@ 115 / 230 Vac)
Output
Output voltage 18 Vdc ±5 %
Output current 0 mA to 840 mA
Output cable length 2 m (6.5 ft)
Output connector 5.5 mm outer diameter, per DIN45232
Output polarity Inner contact positive, outer contact negative
General
Dimensions 79 mm x 149 mm x 49 mm
Housing material Black Heat Resistant ABS
Weight 0.35 kg

What's included with the Fluke BC500

  • Power Adapter
  • DC Cable
  • 2-Wire Mains Cords with male and female connector

Customer Reviews for the Fluke BC500

Ask a question about Fluke BC500 AC Power Charger

Fluke BC500 Offers

The BC500 is a universal mains-power adapter (the Adapter or Product) for measurement, control, and laboratory equipment. The Adapter is intended for operating and charging the Fluke BT500-Series Battery Testers. The Adapter is based on the switched-mode concept for high efficiency and low stand-by power consumption, and complies with level-VI requirements. It operates in a wide range of input voltages from 100 Vac up to 240 Vac nominal. A mains cord is included to make the Adapter suitable for most types of mains outlet.

Fluke BC500 Specifications

Input
Nominal input voltage 100 Vac to 240 Vac, ±10 %
Input current 0.35 A at max. load
Nominal input frequency 50 Hz to 60 Hz ±5 %
Mains Inlet IEC 60320-1 type C8
Input power, no load < 0.1 W (@ 115 / 230 Vac)
Output
Output voltage 18 Vdc ±5 %
Output current 0 mA to 840 mA
Output cable length 2 m (6.5 ft)
Output connector 5.5 mm outer diameter, per DIN45232
Output polarity Inner contact positive, outer contact negative
General
Dimensions 79 mm x 149 mm x 49 mm
Housing material Black Heat Resistant ABS
Weight 0.35 kg

What's included with the Fluke BC500

  • Power Adapter
  • DC Cable
  • 2-Wire Mains Cords with male and female connector
