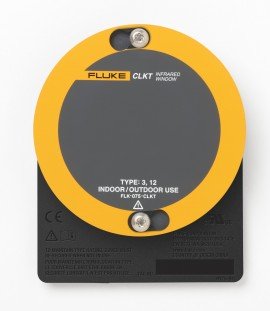

Fluke FLK-075-CLKT C-Range IR Window 3" (75mm)

Model: FLK-075-CLKT | UPC: 095969495851

Fluke FLK-075-CLKT C-Range IR Window 3" (75mm)-


Downloads: datasheet manual

Fluke FLK-075-CLKT C-Range IR Window 3" (75mm)

Model: FLK-075-CLKT

3" (75mm) C-Range IR Window for indoor and outdoor applications, with KWIK Twist Key that easily swivels off.

3" (75mm) C-Range IR Window for indoor and outdoor applications, with KWIK Twist Key that easily swivels off.

Sale Price $269.99 USD
Regular Price $299.99 USD
Availability 47 in Stock
Quantity

Fluke FLK-075-CLKT Infrared (IR) Window 3" Offers

Features

  • The Fluke FLK-075-CLKT IR Window is Engineered and tested to withstand electric-arcs up to 50 kA for 30 cycles.
  • Certified by UL & CSA for Type 3/12 (Outdoor) environments in North America and Canada, the C-Range windows are tested to withstand the long term aging effects of UV exposure.
  • Certified by SIRA Certification IP65 (Outdoor) environments in Europe.
  • The CLIRVU® coating, exclusive to Fluke Infrared Windows, seals the optic prior to assembly to protect against moisture degradation.
  • Quadraband™ optic is compatible with IR-Fusion® and Thermal Fusion technologies allowing the thermographer to see potential problems in visual light and thermographic mode.
  • Got more than one window per panel? Each C-Range window is delivered with an identification plate attached for unique, on-site numbering for rapid location confirmation and faster repairs.
  • Fluke AutoGround automatically grounds at installation for maximum safety and compliance. No additional steps or testing is required. Only available on Fluke IR Windows.

Fluke FLK-075-CLKT Specifications

Optic data
Crystal insert diameter
75mm (296in)
Viewing aperture diameter
68mm (2.7in)
Viewing aperture area
3632mm2 (5.63in2)
Thickness
2mm (0.08in)
CLIRVU coating
Yes
Shortwave IR, Midwave IR, Longwave IR, Ultraviolet (UV) capable
Yes
Visual and fusion capable
Yes
Maximum temperature
Gaskets: 250°C (482°F)
Body: 659°C (1219°F)
Optic: 1400°C (2552°F)
Gaskets
Low smoke and fume (LSF) compliant silicone
Pull-out strength
Up to 630kg (1388lb)
Warranty
Lifetime replacement against manufacturing defects
Certifications
Underwriters Laboratories (UL) recognized
Yes
UL50 environmental
Type 3/12
UL746C
N/A Polymer free
UL94
N/A Polymer free
Canadian Standards Association (CSA) approval
Yes
Environmental
Type 3/12
TUV
Cyclic humidity and vibration withstand
Yes
IP rating
IP65
NEMA rating
Type 1 (UL third party certified)
Vibration rating
IEC60068-2-6
Humidity rating
IEC60068-2-3
Click here for complete specifications on the Fluke FLK-075-CLKT

What's included with the Fluke FLK-075-CLKT

IR Windows are supplied complete, assembled and ready for installation.
In addition to the IR Window, each carton contains:
  • Installation CD
  • self-adhesive drilling template
  • security access key
  • warranty statement
