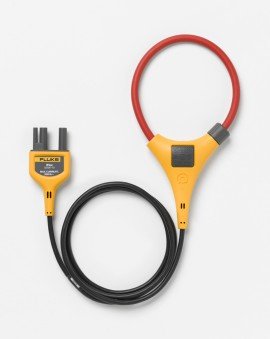

Fluke i2500-10 iFlex Flexible 10" Current Probe

Model: i2500-10 | UPC: 095969559706

Fluke i2500-10 iFlex Flexible 10" Current Probe-


Downloads: datasheet

Fluke i2500-10 iFlex Flexible 10" Current Probe

Model: i2500-10

The iFlex 2500 is a 10" flexible current probe that offers a measuring capability up to 2500 A AC current and up to 1000 V AC.

The iFlex 2500 is a 10" flexible current probe that offers a measuring capability up to 2500 A AC current and up to 1000 V AC.

Sale Price $152.99 USD
Regular Price $169.99 USD
Availability 1 in Stock
Quantity

Fluke i2500-10 Offers

The Fluke i2500-10 iFlex 10" flexible current probes expand the measurement range of the select Fluke meters to 2500 A ac while providing the ultimate measurement flexibility. ThThe iFlex probes connect directly to the meter, displaying current measurements without error prone scaling factors. The 1.8 m (6 ft) cord allows separation between the measurement location and the clamp meter making it easier to view the display. The large loop size and thin cross section allow measurement of awkward sized conductors and improved wire access in crowded spaces. The Fluke i2500-10 also comes in an 45 cm (18 in) size, the Fluke i2500-18.

Features & Benefits

  • Expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access
  • CAT IV 600 V, CAT III 1000 V
  • 7.5 mm coil diameter allows measurement in tight spaces
  • Ergonomic design allows easy operation with one hand
  • 1.8 m (6 ft) cable
  • Three-year warranty
Fluke Clamp Selection Guide

Fluke i2500-10 Specifications

Specifications
i2500-18 and i2500-10
Range
Resolution
Accuracy
AC Current*
2500 A
0.1 A
3% ± 5 digits**
Frequency* 500 Hz
0.1 Hz
0.5% ± 5 digits
External magnetic
field rejection

(with cable >10 cm from the coupling)

40 dB
Inrush* *
Safety rating
CAT III 1000 V, CAT IV 600 V
*When used with compatible Fluke meter. Accuracy stated includes probe and meter accuracy.
** For position accuracy at non-optimum positions, see Position sensitivity specifications table "A"

 Position Sensitivity Specifications
 Distance from Optimum
i2500-10
i2500-18
Additional iFlex error
 A 0.5 in (12.7 mm)
1.4 in (35.6 mm)
 ± 0.5%
 B 0.8 in (20.3 mm)
 2.0 in (50.8 mm)  ± 1.0%
 C 1.4 in (35.6 mm)
 2.5 in (63.5 mm)  ± 2.0%
Click here for complete specifications on the Fluke i2500-10

What's included with the Fluke i2500-10

  • Fluke i2500-10 iFlex Flexible 10" Current Probe
  • How To Set Up the Fluke iFlex Flexible Current Probe


    This video is designed to demonstrate how to set up and use your Fluke iFlex flexible current probe. It provides users to capability to take measurements in tight areas. Additionally, it is compatible with a variety of Fluke products.

    Using the Fluke iFlex Flexible Current Probe in Tight Areas


    This video demonstrates how this flexible current probe is used for awkward and tight spaces. For this specific scenario, it is paired with the Fluke 381. Additionally, it is also compatible with a variety of Fluke products.

    Using the Fluke iFlex Flexible Current probe with the Fluke 376 FC True RMS Clamp Meter


    This video demonstrates the versatility of the Fluke iFlex flexible current probe. Additionally, it is compatible with a variety of Fluke meters.
