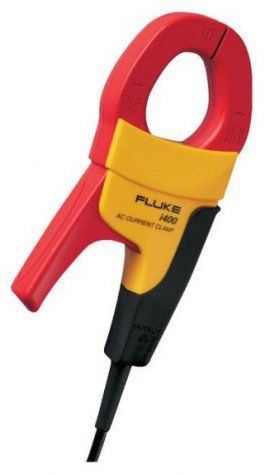

Fluke i400 AC Current Clamp, 400 A AC

Model: I400 | UPC: 095969268608

Fluke i400 AC Current Clamp, 400 A AC-


Downloads: datasheet manual

Fluke i400 AC Current Clamp, 400 A AC

Model: I400

For use with digital multimeters, this current clamp allows users to take accurate current measurements without breaking electric circuits. Additionally, it measures up to 400 A AC.

For use with digital multimeters, this current clamp allows users to take accurate current measurements without breaking electric circuits. Additionally, it measures up to 400 A AC.

Sale Price $148.49 USD
Regular Price $164.99 USD
Availability 7 in Stock
Quantity

Add In-House Traceable Calibration to your I400

Add In-House Traceable Calibration to your I400


Fluke I400 Offers

Features

  • Easy readings on you meter
  • Compact shape
  • Take accurate current readings without breaking the circuit
  • Soft non-slippery overmold handle prevents from accidental touching live wiring
  • CAT IV 600 V / CAT III 1000 V safety rating

Compatible with

  • Fluke 787 ProcessMeter Digital Multimeter
  • Fluke 87V MAX True-rms Digital Multimeter
  • Fluke 27 II Rugged Digital Multimeter
  • Fluke 28 II Rugged Digital Multimeter
  • Fluke 287 True RMS Electronics Logging Multimeter
  • Fluke 289 True RMS Data Logging Multimeter
  • Fluke 77 IV Digital Multimeter
  • Fluke 83V Average Responding Industrial Multimeter
  • Fluke 1587/ET Advanced Electrical Troubleshooting Kit
  • Fluke 1587 MDT: Advanced Motor and Drive Troubleshooting Kit

Fluke I400 Specifications

General Specifications
Nominal Current Range 400 A
Continuous Current Range 1 to 400 A
Maximum Non-Destructive Current 1000 A
Lowest Measurable Current 1 A
Basic Accuracy 2% + 0.06 A
45 to 400 Hz
% reading + floorspec
Useable Frequency 5 to 20 kHz
Output Level(s) 1 mA/A
Safety Specifications
Safety CAT IV 600 V, CAT III, 1000 V
Maximum Voltage 1000 V AC rms from earth to ground, in compliance with EN61010
Mechanical and General Specifications
Maximum Conductor Diameter 1.25" (32 mm)
Maximum Conductor Size (Busbar) 750 MCM
Output Cable Length 59" (1.5 m)
Shrouded Banana Plugs Yes
Click here for complete specifications on the Fluke I400

What's included with the Fluke I400

  • Fluke i400 AC Current Clamp, 400 A AC
  • Fluke: i400 AC Current Clamp

    Click on a category to view a selection of compatible accessories with the Fluke i400 AC Current Clamp, 400 A AC.

    Fluke 80BK-A Integrated DMM Temperature Probe 80BK-A
    A K type thermocouple with a standard shrouded banana jack that is compatible with digital multimeters that feature temperature measurement functions. Additionally, this integrated digital multimeter temperature probe comes in a convenient one-piece construction.




    Fluke 80K-40 High Voltage Probe 80K-40
    Designed to extend the voltage measuring capability of an AC/DC voltmeter to 40,000 V peak AC or DC Overvoltage Category I. The probe provides high accuracy when used with a voltmeter having 10 MΩ input impedance. Intended for low energy applications.




    Fluke 80K-6 KV High Voltage Probe 80K-6
    Designed to extend the voltage measuring capability of an AC/DC voltmeter to 6000 V peak AC or DC Overvoltage Category I. The probe provides high accuracy when used with a voltmeter having 10 MΩ input impedance. Intended for low energy applications.




    Fluke FlukeView Forms Software with cable (FVF-SC2) FVF-SC2
    For use with the Fluke 180 Series, 789, 1550B, 1550C, 1555, 53-2-B, 54-2-B and 1653.




    Fluke TPAK ToolPak Magnetic Meter Hanger ToolPak
    Hang your meter in a variety of ways for convenient hands-free operation. Attaches to most Fluke meters.




    Fluke C280 Polyester Soft Carrying Case C280
    Compatible with Fluke 287 and 289 DMMs or other similar format test tools
