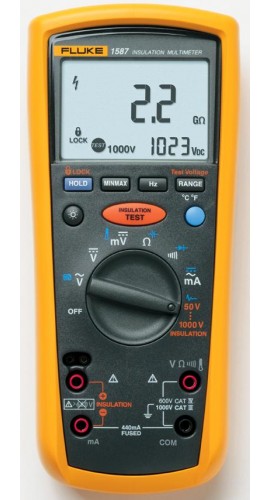

Fluke 1587 Insulation Multimeter

Model: 1587 | UPC: 095969262958

Fluke 1587 Insulation Multimeter-


Downloads: datasheet manual

Fluke 1587 Insulation Multimeter

Model: 1587

Advanced multi-functional digital multimeter with built-in insulation testing functions make this the ideal all-round tool for troubleshooting, commissioning and maintenance.

Advanced multi-functional digital multimeter with built-in insulation testing functions make this the ideal all-round tool for troubleshooting, commissioning and maintenance.

This product has been discontinued. Click here for the replacement model(s).


Fluke 1587 Offers

  • Auto discharge of capacitive voltage
  • AC/DC Voltage
  • DC millivolts
  • AC/DC milliamps
  • Resistance (0.1 Ω to 50 MΩ)
  • Continuity
  • Three-year warranty
  • Remote probe, test leads, alligator clips
  • Rugged, utility hard case
  • Auto power off to save battery power
  • True-rms
  • Large display with backlight
  • CAT III 100V, CAT IV 600V measurement category
  • mAccepts optional Fluke TPAKTM magnetic hanging system to free your hands for other work

Specifications:

Voltage DC

  • Maximum Voltage: 1000V
  • Maximum Resolution: 0.001V
  • Accuracy: ±(0.09%+2)

Voltage AC

  • Maximum Voltage: 1000V
  • Maximum Resolution: 0.1 mV
  • Accuracy: ±(2%+3)

Current DC

  • Maximum Amps: 400mA
  • Maximum Resolution: 0.01 mA
  • Amps Accuracy: ±(0.2%+2)

Current AC

  • Maximum Amps: 400mA
  • Maximum Resolution: 0.01 mA
  • Amps Accuracy: ±(1.5%+2)*

Resistance

  • Maximum Resistance: 50 MΩ
  • Maximum Resolution: 0.1Ω
  • Accuracy: ±(0.9%+2)

Insulation Test

  • Minimum Test Current @ 1kΩ/V:1mA
  • Test Voltages: 1577:500, 1000V
  • Maximum Resistance per Test Voltage: 50V; 100V; 250V; 500V; 1000V: 600 MΩ
  • Maximum Resolution per Test Voltage: 50V: 0.01 MΩ; 100V: 0.01 MΩ; 250V: 0.1 MΩ; 500V: 0.1 MΩ; 1000V: 0.1 MΩ
  • Accuracy per Test Voltage: 50V: ±(3% + 5); 100V: ±(3% + 5); 250V: ±(1.5% + 5)

General Specifications

  • Dimensions: 203x100x50mm (with holster)
  • Weight: 624g
  • Battery Life: Meter use: 1000 hours; Insulation test use: Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
  • IP Rating: IP40

Specifications

Voltage DC
Maximum Voltage 1000 V
Accuracy ±(0.2%+2)
Maximum Resolution 0.001V
Voltage AC
Maximum Voltage 1000 V
Accuracy ±(2%+3)
Maximum Resolution 0.1 mV
Current DC
Maximum Amps 400mA
Amps Accuracy ±(1.0%+2)
Maximum Resolution 0.01 mA
Current AC
Maximum Amps 400mA
Amps Accuracy ±(2.0%+2) 1kHz bandwidth
Maximum Resolution 0.01 mA
Resistance
Maximum Resistance 50 MΩ
Accuracy ±(1.2%+2)
Maximum Resolution 0.1Ω
Insulation Test
Minimum Test Current @ 1kΩ/V 1mA
Test Voltages 500, 1000 V
Maximum Resistance per Test Voltage 100V: 600 MΩ
Maximum Resolution per Test Voltage 50V: 0.01 MΩ 100V: 0.01 MΩ 250V: 0.1 MΩ 500V: 0.1 MΩ 100V: 0.1 MΩ
Accuracy per Test Voltage 50V: ±(3 % + 5) 100V: ±(3 % + 5) 250V: ±(1.5 % + 5) 500V: ±(2.0 % + 5) 100V: ±(2.0 % + 5)
Environmental Specifications
Operating temperature –20 °C to +55 °C
Storage temperature -40°C to +60°C
Humidity (Without Condensation) 0% - 95% (10 °C – 30 °C) 0% - 75% (30 °C – 40 °C) 0% - 40% (40 °C – 55 °C)
Operating Altitude 2000 m
Safety Specifications
Overvoltage category Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement CAT III 1000 V and CAT IV 600 V
Agency Approvals 2000 m CAT III 1000 V, CAT IV 600 V; 3000 m CAT II 1000 V, CAT III 600 V
Mechanical & General Specifications
Size 203 x 100 x 50 mm (with holster)
Weight 624 g
Warranty 3 years
Battery life Alkaline Meter use 1000 hours
Insulation test use Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
IP Rating IP40
Click here for complete specifications on the Fluke 1587

What's included with the Fluke 1587

  • Fluke 1587 Insulation Multimeter
  • Click on a category to view a selection of compatible accessories with the Fluke 1587 Insulation Multimeter.

    Fluke 80AK-A Thermocouple Adapter 80AK-A
    Designed to adapt K type thermocouples mini-connector to dual shrouded banana plug inputs. Additionally, it is ideal for low voltage applications below 30 V AC and 60 V DC.




    Fluke 80PK-27 SureGrip™ Industrial Surface Temperature Probe 80PK-27
    Compatible with any temperature measuring instrument that accepts type K thermocouples features a miniature connector input and a cold reference junction compensation. Additionally, this industrial surface temperature probe is ideal for surfaces in rugged environments.




    Fluke 80PK-3A Surface Temperature Probe 80PK-3A
    Compatible with any temperature measuring instrument that accepts type K thermocouples and features a miniature connector input. Additionally, this surface temperature probe is ideal for measuring the temperature of flat or slightly convex surfaces, with an exposed junction to allow direct contact with the surface being measured.




    Fluke 80PK-8 Pipe Clamp Temperature Probe 80PK-8
    Uses Type-K thermocouple for fast temperature and superheat measurements of pipe surfaces. Designed to reliably measure the temperature of pipes ¼" (6 mm) to 1⅜" (35 mm) in diameter, at temperatures between -20 and 300°F (-29 and 149°C), while retaining a long service life.




    Fluke i1010-KIT Current Clamp Kit I1010-KIT
    Includes carrying case.




    Fluke i200 AC Current Clamp I200
    A single range 200 A clamp-on AC current clamp with current output via safety shrouded banana plugs. It is compatible with most Fluke multimeters or any other current measurement device that accepts shrouded banana plugs.




    Fluke i400 AC Current Clamp, 400 A AC I400
    For use with digital multimeters, this current clamp allows users to take accurate current measurements without breaking electric circuits. Additionally, it measures up to 400 A AC.




    Fluke TL27 Heavy Duty Test Lead Set TL27
    DMM test leads (red, black) with safety shrouded, standard diameter banana plugs.




    Fluke TL225 SureGrip™ Stray Voltage Adapter Test Lead Kit TL225
    Designed to assure that the meter has a low input impedance that eliminates stray voltage. Additionally, this stray voltage adapter test lead kit is compatible with all modern meters with standard input spacing.




    Fluke L200 Probe Light L200
    Easily attaches to any Fluke test probe.




    Fluke L210 Probe Light Kit L210
    Comes in a small and rugged design, this probe light kit liberates the users' hands for work. Additionally, it features a bright white LED and fits between the modular test probe and test lead.




    Fluke AC285 SureGrip™ Alligator Clips AC285
    Designed to improve steadiness in slippery hands, and is for use with TL222 and TL224 test leads. Rubber over-molded surfaces and finger-hugging curves give a comfortable, reliable grip so you can focus on making an accurate measurement.




    Fluke TLK-225 SureGrip™ Master Accessory Set TLK-225
    A replacement kit that provides flexibility and comfort, and comes equipped with all SureGrip™ leads and probes.




    Fluke TP220 SureGrip™ Industrial Test Probes TP220
    For use with the TL222 and TL224. Additionally, these industrial test probes feature 0.5" (12 mm) stainless steel tips that provide reliable contact and flexible finger barrier, which improves grip.




    Fluke C101 Hard Carrying Case C101
    Compatible with a vareity of Fluke industrial test tools. Additionally, this hard carrying case features a foam interior.




    Fluke C25 Large Soft Carrying Case for Digital Multimeters C25
    Featuring a durable, zippered carrying case with padding and inside pocket, and high quality polyester exterior. It includes a convenient hand strap and carries most of Fluke's popular digital multimeters.




    Fluke C550 Premium Tool Bag C550
    Tool Bag with steel reinforced frame.




    Fluke CXT170 CXT170
    Rugged Pelican Hard Case for the Fluke 170 Series.




    Fluke TPAK ToolPak Magnetic Meter Hanger ToolPak
    Hang your meter in a variety of ways for convenient hands-free operation. Attaches to most Fluke meters.
