Fluke 190-504/FPC Offers

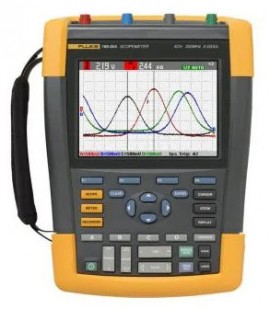

Accurate and versatile, this portable oscilloscope provides a fast sampling rate of up to 5 GS/s, a 200 ps resolution, and deep memory of 10,000 samples per channel. Perform timing or amplitude-related measurements on three phases or three-axis control systems, or compare and contrast multiple test points in a circuit under test.

Features

• Up to four independent floating isolated inputs, up to 1000 V
• Up to 5 GS/s real time sampling (channels used)
• Deep memory: 10,000 points per trace waveform capture (scope mode)
• CAT III 1000 V/CAT IV 600 V safety rated instrument for industrial environments
• Up to seven hours of battery operation
• Large, bright color display is easy to view in nearly any environment
• Easy to store and view historical data and transfer to a PC via USB or Wifi
• Convenient battery access door for quick battery swaps in the field
• IP51 rating, dust and drip-proof
• Connect-and-View triggering for intelligent, automatic triggering on fast, slow and even complex signals
• Frequency spectrum using FFT-analysis
• Automatic capture and REPLAY of 100 screens
• ScopeRecord mode gives 30,000 points per input channel for low frequency signal analysis
• TrendPlot Paperless Recorder mode with deep memory for longterm automatic measurements

Measure from mV to kV safely

Independently isolated inputs allow you to make measurements in mixed circuits having different ground references reducing the risk of accidental short circuits. Conventional bench oscilloscopes without special differential probes and isolation transformers can only reference measurements to line power earth ground. This test tool is engineered to cover a wide application range from mV to kV, so you're ready for anything from microelectronics to heavy duty higher voltage electrical applications.

IP-51 rated for harsh environments

Rugged and shock-proof, ScopeMeter Test Tools are built for dirty, hazardous environments. With its sealed case, it can endure dust, drips, humidity and airborne pollutants. Every time you reach for this test tool, you can be confident it will work reliably wherever your work takes you.

USB and Wi-Fi connectivity

It offers two USB ports, electrically isolated from measurement input circuits allowing you to quickly and easily transfer data to a PC, archive and share waveforms with OEMs, colleagues and support staff, or store waveforms, screen captures and instrument setups onto USB memory devices for later use. Easily transfer saved files via USB stick, direct connection via the USB interface or optional Wi-Fi connectivity. These files can be used for further data handling or in FlukeView-2 Software to study waveforms in greater detail.

Connect-and-View triggering

Connect-and-View triggering provides an instant, stable display without the need for adjusting settings. If you've used other scopes, you know how tricky triggering can be. If settings are incorrect, results can be unstable or incorrect. Connect-and-View automatically sets up correct triggering by recognizing signal patterns. Without touching a button, you get a stable, reliable and repeatable display of virtually any signal including motor drive and control signals. It's especially fast and convenient when you're measuring a number of test points in rapid succession.

TrendPlot paperless recorder - records up to 11 days to help you find intermittent faults

The toughest faults to find are those that happen only once in a while. These intermittent events can be caused by bad connections, dust, dirt, corrosion, or simply broken wiring or connectors. Line outages, dips, swells and interruptions, or the starting and stopping of a motor can also cause a machine to stop. You may not be around when it happens, but this test tool will be.

• Plot minimum and maximum peak values and average over time
• Plot any combination of up to four readings including voltages, amps, temperature, frequency and phase for all inputs, all with time and date stamp to pinpoint faults

ScopeRecord™ mode for high resolution waveform recording

ScopeRecord memory stores up to 30,000 or more data points per channel, capturing fast intermittent events and glitches as short as 8 ns (two sets of multiple channel recordings can be stored to internal memory for later analysis).

• Records events like UPS, power supply or motor start-up cycles
• With the Stop on Trigger mode, it automatically recognizes a power failure and stores the waveform data preceding it

Applications

• Microelectronics
• Troubleshooting

Includes Fluke Premium Care Support - One-Year Plan

Reduce unplanned expenses and get the most out of your tools

When you invest in quality equipment to get your jobs done, you want your money to go as far as possible.

Fluke Premium Care provides coverage above and beyond your tool's original product warranty, so you don't need to worry about unexpected downtime caused by damaged test equipment, accessories, or tools in need of calibration or repair. It's easy too! You'll receive your product with the information and register. That's it, you're covered!
