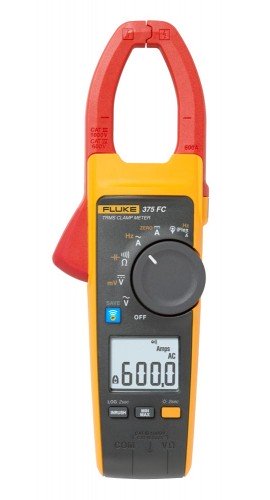

Fluke 375 FC True RMS AC/DC Clamp Meter, 600 A, 1000 V

Model: 375 FC | Order No: 375FC | UPC: 95969798464

Fluke 375 FC True RMS AC/DC Clamp Meter, 600 A, 1000 V-


Downloads: datasheet manual

Fluke 375 FC True RMS AC/DC Clamp Meter, 600 A, 1000 V

Model: 375 FC | Order No: 375FC

Measure very low and very high resistance with this True RMS AC/DC clamp meter. It features a VFD low-pass filter which provides accurate motor drive measurements and is ideal for troubleshooting non-linear signals. Additionally, this instrument is compatible with the Fluke Connect application and iFlex flexible current probe.

Measure very low and very high resistance with this True RMS AC/DC clamp meter. It features a VFD low-pass filter which provides accurate motor drive measurements and is ideal for troubleshooting non-linear signals. Additionally, this instrument is compatible with the Fluke Connect application and iFlex flexible current probe.

Sale Price $386.99 USD
Regular Price $429.99 USD
Availability 20 in Stock
Quantity

Add In-House Traceable Calibration to your 375 FC

Add In-House Traceable Calibration to your 375 FC


Fluke 375 FC Offers

True RMS AC/CD clamp meter measures very low voltage and very high resistance

Included in the Fluke Connect family of wireless test tools, this clamp meter provides high-performance features and is easy to use. It features a VFD low-pass filter which gives accurate motor drive measurements and wireless communications to share results to a smartphone via Fluke Connect.

Features

  • Connect your meter to your smartphone using Fluke Connect Measurements app to increase the troubleshooting power of your clamp
  • Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
  • Record results directly to your phone and the Fluke Cloud™
  • Capture intermittent faults while performing other tasks using the logging capabilities
  • Create and share reports from the field via email, or converse in real time with ShareLive™ video calls
  • iFlex flexible current probe expands the measurement range to 2500 A AC; provides access to large conductors in tight spaces (sold separately)
  • Integrated VFD low pass filter for accurate motor drive measurements
  • Proprietary in-rush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
  • Compatible with optional TPAK magnetic hanging strap
  • CAT IV 600 V, CAT III 1000 V safety rating
  • Runs on two AA alkaline batteries

Measurement capabilities

  • 600 A AC and DC
  • 2500 A AC current measurement with iFlex™ flexible current probe (sold separately)
  • 1000 V AC and DC voltage measurement
  • True RMS voltage and current for accurate measurements on non-linear signals
  • Frequency measurement to 500 Hz with body jaw and iFlex
  • Resistance measurement to 60 kΩ with continuity detection
  • Min, max, average and in-rush recording to capture variations automatically
  • 500 mV DC measurement range to interface with other accessories
  • 1000 µF capacitance measurement

Wireless connectivity improves productivity

Using its Bluetooth connectivity to Apple and Android devices, you can read the results of this clamp meter from a safe distance away on your smartphone, wearing less PPE. You can create and send reports in email right from the field and save results to the cloud. You can also converse with colleagues in real-time with ShareLive™ video calls.

Versatile performance

With True RMS AC voltage and current measurements, this instrument enables you to accurately troubleshoot non-linear signals. And you can log and trend measurements to pinpoint intermittents while you are performing other tasks.

Fluke Clamp Selection Guide

Fluke 375 FC Specifications

AC Current via Jaw
Range 600 A
Resolution 0.1 A
Accuracy 2% ±5 digits (10 to 100 Hz)
2.5% ±5 digits (100 to 500 Hz)
Crest Factor (50/60 Hz) 3 at 500 A
2.5 at 600 A
Add 2% for C.F. >2
AC Current via Flexible Current Probe
Range 2500 A
Resolution 0.1 A (≤600 A)
1 A (≤2500 A)
Accuracy 3% ±5 digits (5 to 500 Hz)
Crest Factor (50/60Hz) 3.0 at 1100 A
2.5 at 1400 A
1.42 at 2500 A
Add 2% for C.F. >2
DC Current
Range 600.0 A
Resolution 0.1 A
Accuracy 2% ±5 digits
AC Voltage
Range 1000 V
Resolution 0.1 V (≤600.0 V)
1 V (≤1000 V)
Accuracy 1.5% ±5 digits (20 Hz to 500 Hz)
DC Voltage
Range 1000 V
Resolution 0.1 V (≤600.0 V)
1 V (≤1000 V)
Accuracy 1% ±5 digits
mV DC
Range 500.0 mV
Resolution 0.1 mV
Accuracy 1% ±5 digits
Frequency via Jaw
Range 5.0 to 500.0 Hz
Resolution 0.1 Hz
Accuracy 0.5% ±5 digits
Trigger Level 5 to 10 Hz, ≥10 A
10 to 100 Hz, ≥5 A
Frequency via Flexible Current Probe
Range 5.0 to 500.0 Hz
Resolution 0.1 Hz
Accuracy 0.5% ±5 digits
Trigger Level 5 to 20 Hz, ≥25 A
20 to 100 Hz, ≥20 A
100 to 500 Hz, ≥25 A
Resistance
Range 60 kΩ
Resolution 0.1 Ω (≤600 Ω)
1 Ω (≤6000 Ω)
10 Ω (≤60 kΩ)
Accuracy 1% ±5 digits
Capacitance
Range 1000 µF
Resolution 0.1 µF (≤100 µF)
1 µF (≤1000 µF)
Accuracy 1% ±4 digits
General Specifications
Maximum Voltage Between Any Terminal and Earth Ground 1000 V
Batteries 2 x AA alkaline, NEDA 15A, IEC LR6
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -40 to 140°F (-40 to 60°C)
Operating Humidity - Non-Condensing (<10°C) ≤90% RH [at 50 to 86°F (10 to 30°C)]
≤75% RH [at 86 to 104°F (30 to 40°C)]
Operating Altitude 9842.52' (3000 m)
Storage Altitude 39,370' (12,000 m)
Jaw Opening 1.34" (34 mm)
Flexible Current Probe Diameter 0.3" (7.5 mm)
Flexible Current Probe Cable Length (Head to Electronics Connector) 5.9' (1.8 m)
Safety IEC 61010-1, Pollution Degree 2
IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V
IP Rating IEC 60529: IP30, non-operating
Radio Frequency Certification FCC ID T68-FBLE IC:6627A-FBLE
Dimensions 9.8 x 3.3 x 1.8" (249 x 85 x 45 mm)
Weight 13.9 oz. (395 g)
Click here for complete specifications on the Fluke 375 FC

What's included with the Fluke 375 FC

  • Clamp Meter
  • Test Leads
  • 2 x AA Alkaline Batteries
  • Carrying Case
  • Coated Instruction Card
  • Safety Information Sheet
  • Three-Year Warranty
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements
