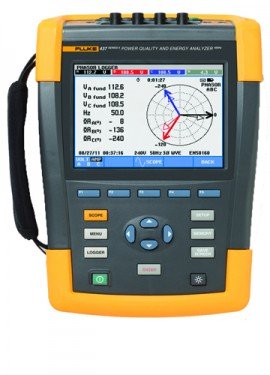

Fluke 434-II Series of Power Quality Analyzers

Fluke 434-II Series of Power Quality Analyzers-

Fluke 434-II Series of Power Quality Analyzers

Delivers essential power quality monitoring and logging in a compact form. Use as a frontline troubleshooting tool, for predictive maintenance and for long-term load studies. Available as a stand-alone unit or a complete kit including 4x 6000A flexible current transformers.

Delivers essential power quality monitoring and logging in a compact form. Use as a frontline troubleshooting tool, for predictive maintenance and for long-term load studies. Available as a stand-alone unit or a complete kit including 4x 6000A flexible current transformers.

Fluke 434-II Three-Phase Energy Analyzer
434-II $6,399.99 USD Availability:
1 to 2 Weeks
Fluke 434-II/BASIC Three-Phase Energy Analyzer
434-II/BASIC $5,799.99 USD Availability:
1 to 2 Weeks

Fluke 434-II Offers

The Fluke 434 Series II Power Quality and Energy Analyzer is the world's only Power Quality analyzer that can monetize the cost of energy waste due to poor power quality and is ideal for characterizing power quality, conducting load studies and capturing hard-to-find voltage events over a user-defined period of time. The Fluke 434 II Energy Analyzer is the ideal tool for advanced energy logging and energy monetization, identifying the most energy-wasteful areas of your facility.

Features

  • These power quality and energy analyzers help locate and predict, prevent and troubleshoot power quality problems in three-phase and single-phase power distribution systems
  • Energy Loss Calculator: classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint true system energy losses in dollars
  • Power Inverter Efficiency: Simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp
  • Troubleshoot Real-time: Analyze trends using cursors and zoom tools
  • Measure all Three Phases and Neutral: With included flexible current probes (4) with enhanced thin flex designed to fit into the tightest places
  • Automatic Trending: Every measurement is always automatically recorded, without any set-up
  • System Monitor: Ten power quality parameters on one screen according to EN61060 power quality standard
  • Logger Function: Configure for any test condition with memory for up to 600 parameters at user defined intervals
  • View Graphs and Generate Reports: With included analysis software
  • Battery Life: Seven hours of operating time per charge on Li-ion battery pack
  • Automatic Transient Mode: Capture 200kHz waveform data on all phases simultaneously up to 6kV
  • Fully Class A Compliant: Conduct tests according to stringent international IEC 61000-4-30 Class A standard
  • Mains Signalling: Measure interference from ripple control signals at specific frequencies

Specifications

Model Measurement range Resolution Accuracy
Vrms (AC/DC) 434-II 1 V to 1000 V phase to neutral 0.1 V ± 0.5% of nominal voltage****
Vpk 1 Vpk to 1400 Vpk 1 V 5% of nominal voltage
Voltage Crest Factor (CF) 1.0 > 2.8 0.01 ± 5 %
Vrms½ 434-II 1 V to 1000 V phase to neutral 0.1 V ± 1% of nominal voltage
Vfund 434-II 1 V to 1000 V phase to neutral 0.1 V ± 0.5% of nominal voltage
Amps (AC/DC) i430-Flex 1x 5 A to 6000 A 1 A ± 0.5% ± 5 counts
i430-Flex 10x 0.5 A to 600 A 0.1 A ± 0.5% ± 5 counts
1mV/A 1x 5 A to 2000 A 1A ± 0.5% ± 5 counts
1mV/A 10x 0.5 A A to 200 A (AC only) 0.1 A ± 0.5% ± 5 counts
Apk i430-Flex 8400 Apk 1 Arms ± 5 %
1mV/A 5500 Apk 1 Arms ± 5 %
A Crest Factor (CF) 1 to 10 0.01 ± 5 %
Amps½ i430-Flex 1x 5 A to 6000 A 1 A ± 1% ± 10 counts
i430-Flex 10x 0.5 A to 600 A 0.1 A ± 1% ± 10 counts
1mV/A 1x 5 A to 2000 A 1A ± 1% ± 10 counts
1mV/A 10x 0.5 A A to 200 A (AC only) 0.1 A ± 1% ± 10 counts
Afund i430-Flex 1x 5 A to 6000 A 1 A ± 0.5% ± 5 counts
i430-Flex 10x 0.5 A to 600 A 0.1 A ± 0.5% ± 5 counts
1mV/A 1x 5 A to 2000 A 1A ± 0.5% ± 5 counts
1mV/A 10x 0.5 A A to 200 A (AC only) 0.1 A ± 0.5% ± 5 counts
Hz Fluke 434 @ 50 Hz nominal

42.50 Hz to 57.50 Hz

0.01 Hz ± 0.01 Hz
Fluke 434 @ 60 Hz nominal 51.00 Hz to 69.00 Hz 0.01 Hz ± 0.01 Hz
Watts (VA, var) i430-Flex max 6000 MW 0.1 W to 1 MW ± 1% ± 10 counts
1 mV/A max 2000 MW 0.1 W to 1 MW ± 1% ± 10 counts
Power factor (Cos j/DPF) 0 to 1 0.001 ± 0.1% @ nominal load conditions
kWh (kVAh, kvarh) i430-Flex 10x Depends on clamp scaling and V nominal ± 1% ± 10 counts
Energy loss i430-Flex 10x Depends on clamp scaling and V nominal ± 1% ± 10 counts Excluding line resistance accuracy
Harmonic Order (n) DC, 1 to 50 Grouping: Harmonic groups according to IEC 61000-4-7
Inter-Harmonic Order (n) OFF, 1 to 50 Grouping: Harmonic and Interharmonic subgroups according to IEC 61000-4-7
Volts %f 0.0 % to 100 % 0.1 % ± 0.1% ± n x 0.1 %
%r 0.0 % to 100 % 0.1 % ± 0.1% ± n x 0.4 %
Absolute 0.0 to 1000 V 0.1 V ± 5% *
THD 0.0 % to 100 % 0.1 % ± 2.5 %
Amps %f 0.0 % to 100 % 0.1 % ± 0.1% ± n x 0.1%
%r 0.0 % to 100 % 0.1 % ± 0.1% ± n x 0.4 %
Absolute 0.0 to 600 A 0.1 A ± 5% ± 5 counts
THD 0.0 % to 100 % 0.1 % ± 2.5 %
Watts %f or %r 0.0 % to 100 % 0.1 % ± n x 2%
Absolute Depends on clamp scaling and V nominal - ± 5% ± n x 2 % ± 10 counts
THD 0.0 % to 100 % 0.1 % ± 5 %
Phase Angle -360° to +0° ± n x 1°
Plt, Pst, Pst(1min) Pinst 0.00 to 20.00 0.01 ± 5 %
Volts % 0.0 % to 20.0 % 0.1 % ± 0.1 %
Amps % 0.0 % to 20.0 % 0.1% ± 1 %
Threshold levels Threshold, limits and signalling duration is programable for two signalling frequencies
Signalling frequency 60 Hz to 3000 Hz 0.1 Hz
Relative V% 0 % to 100 % 0.10 % ± 0.4 %
Absolute V3s (3 second avg.) 0.0 V to 1000 V 0.1 V ± 5 % of nominal voltage

What's included with the Fluke 434-II

  • Fluke 434-II Series of Power Quality Analyzers
  • Webinar: Introduction to Portable Precision Power Analyzers with Fluke


    This wideband precision analyzer is accurate enough for the lab, yet it's built for the field. Offering you more freedom than ever before to make high accuracy power measurements wherever you need to. Whether in the lab, or in the field. Designed for portability and eliminates the need to carry large, fragile, expensive analyzers into the field, allowing you to make measurements directly at the load in nearly any environment. By measuring directly at the load, you can discover how the equipment operates under real-world conditions, with real-world variables, not just at a test bench or in the lab.
    During our 1-hour webinar, we've covered:
    - The new Fluke Norma 6000 Power Analyzer for accurate measurements at frequencies from DC to 500kHz.
    - It is not a Power Quality Analyzer.
    - It is a Power Analyzer for accurate measurements at frequencies from DC to 500kHz.
    - It is designed to be used in the field, its rugged, battery-operated, lightweight, and suited to use outside of a laboratory environment.
    - You’ll learn why it can help you, where and how it is used.

    Click on a category to view a selection of compatible accessories with the Fluke 434-II Series of Power Quality Analyzers.

    Fluke WC100 multi color wire clips WC100
    For use with Fluke 430-Series power quality analyzers.





    Fluke AC285 SureGrip™ Alligator Clips AC285
    Designed to improve steadiness in slippery hands, and is for use with TL222 and TL224 test leads. Rubber over-molded surfaces and finger-hugging curves give a comfortable, reliable grip so you can focus on making an accurate measurement.




    Fluke i5sPQ3, 5A AC Current Clamps, 3-pack I5SPQ3
    A pack of 3 pieces of the i5s current clamps, specially configured to provide low current accuracy while taking measurements on secondary current transformers.




    Fluke i200s AC Current Clamp I200S
    A dual-range of 20 A and 200 A ac current clamp with voltage output via a safety insulated BNC connector. A dual banana to BNC adapter is supplied to allow the clamp to be connected to multimeters with banana inputs.




    Fluke i400S AC Current Clamp I400S
    For use with digital multimeters, power quality analyzers, and portable oscilloscopes, this current clamp allows users to take accurate current measurements without breaking electric circuits. Additionally, it measures up to 400 A AC.




    Fluke i1000s AC Current Probe I1000S
    Designed to expand oscilloscope applications in industrial and power environments. Ideal for measuring distorted current waveforms and harmonics.




    Fluke i2000 FLEX Flexible AC Current Clamp I2000-FLEX
    Utilizing the Rogowski principle, the clamp can be used to measure currents up to 2000 A when used in conjunction with multimeters, recorders, or data loggers. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas.




    Fluke i3000s AC Current Clamp I3000S
    3000A AC current clamp with BNC terminated lead




    Fluke i3000s Flex-24 Flexible AC Current Probe, 24 inch length I3000S-FLEX-24
    Flexible 24" 3000A AC current probe with BNC terminated lead.




    Fluke i6000s Flex-24 AC Current Probe I6000S-FLEX-24
    Flexible 24" 6000A AC current probe with BNC terminated lead.




    Fluke i6000s Flex-36 AC Current Probe I6000S-FLEX-36
    Flexible 36" 6000A AC current probe with BNC terminated lead.




    Fluke i30s AC/DC Current Clamp I30S
    30A AC/DC current clamp with BNC terminated lead.




    Fluke 80I-110s AC/DC Current Clamp 80I-110s
    The Fluke 80i-110s is optimized for accurate reproduction of currents at line frequency up to the 50th harmonic waveform.




    Fluke BB120 Shielded Banana to Female BNC Adapter BB120
    Safety designed female BNC to shielded banana adapter for use with 120 Series ScopeMeters and 43B Power Quality Analyzer.




    Fluke BP290 Li-Ion Battery Pack BP290
    For Fluke 43X power quality analyzers and 190-series ScopeMeters.




    Fluke BP291 Double Capacity Li-Ion Battery Pack BP291
    For Fluke 43X power quality analyzers and 190-series ScopeMeters.




    Fluke EBC290 External Battery Charger EBC290
    External battery charger for Li-ion batteries for 190B and 120B Series ScopeMeters and power quality analyzers.
