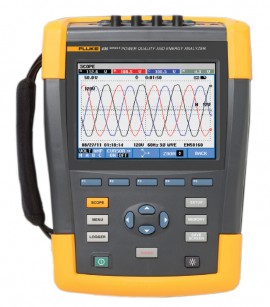

Fluke 435-II Series of Power Quality Analyzers

The Power Quality analyzers that can monetize the cost of energy waste due to poor power quality. More powerful sampling options, greater accuracy and larger memory makes the Fluke 435-II better for longer term, higher resolution or more demanding power quality studies. The wide range of measurement functions and measurement methods make it the perfect tool for both power quality troubleshooting and discovering energy savings. Whether you’re checking the performance of motors and generators, trying to discover the source of an intermittent power problem or performing an energy study…this tool gives you the data you need to quickly get to the source of the problem.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Fluke 1775 Three-Phase Power Quality Analyzer with current probes and WiFi/BLE adaptor, 8 kV

Model: 1775

Never miss a critical power quality event with this power quality analyzer that measures numerous variables. In addition, using a PPE-operable capacitive touch screen, this analyzer discovers equipment failures caused by transients and simplifies examining the overall power quality health of electrical systems.

Learn More

Fluke 1775/BASIC Three-Phase Power Quality Analyzer, 8 kV

Model: 1775/BASIC

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Recommended Accessories

Fluke i200s AC Current Clamp

I200S

Fluke AC285 SureGrip Alligator Clips

AC285

Fluke 80I-110s AC/DC Current Clamp

80I-110s

Fluke 435-II Specifications

	Model	Measurement range	Resolution	Accuracy
Volt
Vrms (ac+dc)	435-II	1 V to 1000 V phase to neutral	0.01 V	± 0.1% of nominal voltage****
Vpk		1 Vpk to 1400 Vpk	1 V	5% of nominal voltage
Voltage Crest Factor (CF)		1.0 > 2.8	0.01	± 5 %
Vrms½	435-II		0.1 V	± 0.2% of nominal voltage
Vfund	435-II		0.1 V	± 0.1% of nominal voltage
Amps (accuracy excluding clamp accuracy)
Amps (ac +dc)	i430-Flex 1x	5 A to 6000 A	1 A	± 0.5% ± 5 counts
	i430-Flex 10x	0.5 A to 600 A	0.1 A	± 0.5% ± 5 counts
	1mV/A 1x	5 A to 2000 A	1A	± 0.5% ± 5 counts
	1mV/A 10x	0.5 A A to 200 A (ac only)	0.1 A	± 0.5% ± 5 counts
Apk	i430-Flex	8400 Apk	1 Arms	± 5 %
	1mV/A	5500 Apk	1 Arms	± 5 %
A Crest Factor (CF)		1 to 10	0.01	± 5 %
Amps½	i430-Flex 1x	5 A to 6000 A	1 A	± 1% ± 10 counts
	i430-Flex 10x	0.5 A to 600 A	0.1 A	± 1% ± 10 counts
	1mV/A 1x	5 A to 2000 A	1A	± 1% ± 10 counts
	1mV/A 10x	0.5 A A to 200 A (ac only)	0.1 A	± 1% ± 10 counts
Afund	i430-Flex 1x	5 A to 6000 A	1 A	± 0.5% ± 5 counts
	i430-Flex 10x	0.5 A to 600 A	0.1 A	± 0.5% ± 5 counts
	1mV/A 1x	5 A to 2000 A	1A	± 0.5% ± 5 counts
	1mV/A 10x	0.5 A A to 200 A (ac only)	0.1 A	± 0.5% ± 5 counts
Hz
Hz	Fluke 435 @ 50 Hz nominal	42.500 Hz to 57.500 Hz	0.001 Hz	± 0.01 Hz
Fluke 435 @ 60 Hz nominal	51.000 Hz to 69.000 Hz	0.001 Hz	± 0.01 Hz
Power
Watts (VA, var)	i430-Flex	max 6000 MW	0.1 W to 1 MW	± 1% ± 10 counts
	1 mV/A	max 2000 MW	0.1 W to 1 MW	± 1% ± 10 counts
Power factor (Cos j/DPF)		0 to 1	0.001	± 0.1% @ nominal load conditions
Energy
	kWh (kVAh, kvarh)	i430-Flex 10x	Depends on clamp scaling and V nominal	± 1% ± 10 counts
	Energy loss	i430-Flex 10x	Depends on clamp scaling and V nominal	± 1% ± 10 counts Excluding line resistance accuracy
Harmonics
Harmonic order (n)	Harmonic order (n)		DC, 1 to 50 Grouping: Harmonic groups according to IEC 61000-4-7
Inter-harmonic order (n)	Inter-harmonic order (n)		OFF, 1 to 50 Grouping: Harmonic and Interharmonic subgroups according to IEC 61000-4-7
Volts	%f	0.0 % to 100 %	0.1 %	± 0.1% ± n x 0.1 %
	%r	0.0 % to 100 %	0.1 %	± 0.1% ± n x 0.4 %
	Absolute	0.0 to 1000 V	0.1 V	± 5% *
	THD	0.0 % to 100 %	0.1 %	± 2.5 %
Amps	%f	0.0 % to 100 %	0.1 %	± 0.1% ± n x 0.1%
	%r	0.0 % to 100 %	0.1 %	± 0.1% ± n x 0.4 %
	Absolute	0.0 to 600 A	0.1 A	± 5% ± 5 counts
	THD	0.0 % to 100 %	0.1 %	± 2.5 %
Watts	%f or %r	0.0 % to 100 %	0.1 %	± n x 2%
	Absolute	Depends on clamp scaling and V nominal	-	± 5% ± n x 2 % ± 10 counts
	THD	0.0 % to 100 %	0.1 %	± 5 %
Phase Angle		-360° to +0°	1°	± n x 1°
Flicker
Plt, Pst, Pst(1min) Pinst		0.00 to 20.00	0.01	± 5 %
Unbalance
Volts	%	0.0 % to 20.0 %	0.1 %	± 0.1 %
Amps	%	0.0 % to 20.0 %	0.1%	± 1 %
Mains signaling
Threshold levels		Threshold, limits and signaling duration is programable for two signaling frequencies	-	-
Signaling frequency		60 Hz to 3000 Hz	0.1 Hz
Relative V%		0 % to 100 %	0.10 %	± 0.4 %
Absolute V3s (3 second avg.)		0.0 V to 1000 V	0.1 V	± 5 % of nominal voltage

General specifications
Case	Design Rugged, shock proof with integrated protective holster Drip and dust proof IP51 according to IEC60529 when used in tilt stand position Shock and vibration Shock 30 g, vibration: 3 g sinusoid, random 0.03 g 2 /Hz according to MIL-PRF-28800F Class 2
Display	Brightness: 200 cd/m 2 typ. using power adapter, 90 cd/m 2 typical using battery power Size: 127 mm x 88 mm (153 mm/6.0 in diagonal) LCD Resolution: 320 x 240 pixels Contrast and brightness: user-adjustable, temperature compensated
Memory	8GB SD card (SDHC compliant, FAT32 formatted) standard, upto 32GB optionally Screen save and multiple data memories for storing data including recordings (dependent on memory size)
Real-time clock	Time and date stamp for Trend mode, Transient display, System Monitor and event capture

Environmental
Operating temperature	0 °C ~ +40 °C; +40 °C ~ +50 °C excl. battery
Storage temperature	-20 °C ~ +60 °C
Humidity	+10 °C ~ +30 °C: 95% RH non-condensing +30 °C ~ +40 °C: 75% RH non-condensing +40 °C ~ +50 °C: 45% RH non-condensing
Maximum operating altitude	Up to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V Up to 3,000 m (10,000 ft) for CAT III 600 V, CAT II 1000 V Maximum storage altitude 12 km (40,000 ft)
Electro-Magnetic-Compatibility (EMC)	EN 61326 (2005-12) for emission and immunity
Interfaces	mini-USB-B, Isolated USB port for PC connectivity SD card slot accessible behind instrument battery
Warranty	Three years (parts and labor) on main instrument, one year on accessories

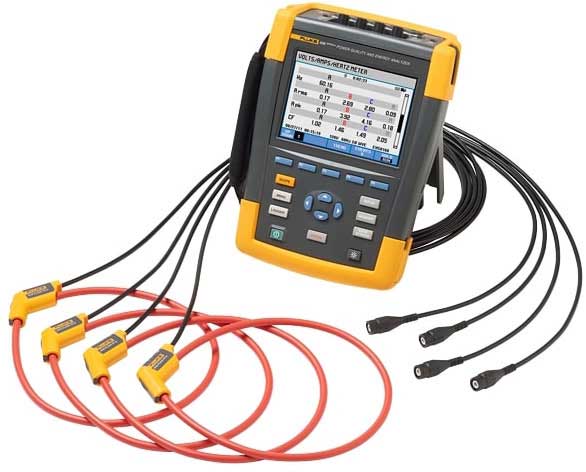

What's included with the Fluke 435-II
