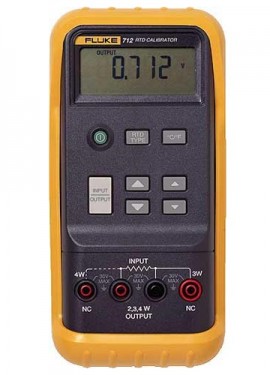

Fluke 712 RTD Process Calibrator

Model: 712 | UPC: 095969050654

Fluke 712 RTD Process Calibrator-


Downloads: datasheet

Fluke 712 RTD Process Calibrator

Model: 712

The lightweight RTD Temperature Calibrator that is EMI tolerant, dust & splash resistant, and features a removable battery door for quick battery changes. Delivers outstanding performance, durability and reliability.

The lightweight RTD Temperature Calibrator that is EMI tolerant, dust & splash resistant, and features a removable battery door for quick battery changes. Delivers outstanding performance, durability and reliability.

This product has been discontinued. Click here for the replacement model(s).


Fluke 712 Offers

Features

  • Operates with seven types of RTDs
  • Measure additional RTDs using Ohms measurement function
  • Simulate additional RTDs using Ohms source function
  • °F or °C selectable
  • Four shrouded banana jacks
  • Compatible with Rosemount® pulsed RTD transmitters (pulses > 10ms)
  • Holster features test lead storage
  • Compatible with toolpack magnetic hanging system

Applications

  • Petro-Chemical
  • Oil and Gas
  • Food and Beverage
  • Pharmaceutical
  • Test and Measurement
  • Instrumentation

Fluke 712 Specifications

Measure / simulate RTD Range: 15 Ω to 3200 Ω, Resolution: 0.1 Ω, Accuracy: 0.1 Ω to 1 Ω
Display Clear 5 digit LCD
Operating Temp. -10 to 55°C
Storage Temp. -40 to 60 °C
Operating Altitude 3,000m max
Safety CSA C22.2 No. 1010.1:1992
Size 187 mm L x 87 mm W x 32 mm (7.93 in. L x 3.86 in. W x 2.06 in D)
Weight Approx. 330 g (21 oz.)
Battery type
Click here for complete specifications on the Fluke 712

What's included with the Fluke 712 RTD

  • Fluke 712 RTD Process Calibrator
  • Protective Yellow Holster with test lead storage
  • Instructions Sheet (14 languages)
  • Single 9V alkaline battery
  • Test Leads and Alligator Clips
  • NIST-traceable calibration report and data
  • 3 Year Warranty
