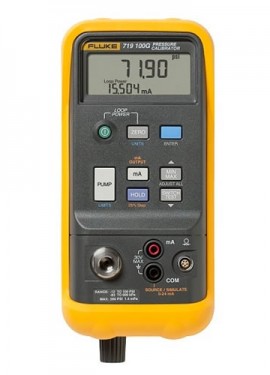

Fluke 719-100G Pressure Calibrator, 100 PSI

Model: 719-100G | UPC: 095969465373

Fluke 719-100G Pressure Calibrator, 100 PSI-


Downloads: datasheet

Fluke 719-100G Pressure Calibrator, 100 PSI

Model: 719-100G

Calibrate and test pressure devices quickly and easily with one hand, saving valuable time. The innovative, built-in electric pump provides pressure calibration at your fingertips. The ideal tool for busy process professionals.

Calibrate and test pressure devices quickly and easily with one hand, saving valuable time. The innovative, built-in electric pump provides pressure calibration at your fingertips. The ideal tool for busy process professionals.

Your Price $3539.99 USD
Availability 1 to 2 Weeks
Quantity

Add In-House Traceable Calibration to your 719-100G

Add In-House Traceable Calibration to your 719-100G


Recommended Accessories


Fluke 719-100G Offers

Fluke 719 Electric Pressure Calibrator provides pressure calibration using the programmable pump limit settings that eliminate over-pressurization.

Features

  • Measure and source mA with best in class 0.015% accuracy
  • Precision pressure adjust vernier for accurate pressure calibration
  • Variable release rate bleed valve for easy pressure adjustment
  • Ideal performance for high accuracy transmitter calibration
  • 30 PSI and 100 PSI pressure ranges
  • Programmable pressure calibrator pump limit
  • eliminates over-pressurization
  • allows the user to program target pressures for pumping
  • Extended pressure measurement range with any of 29 700Pxx Pressure Modules
  • Source mA with simultaneous pressure measurement to test valves and I/Ps
  • Simulate mA signals to troubleshoot 4-20 mA loops
  • Test pressure switches with built in switch test function
  • Power transmitters during test using 24 V loop supply with simultaneous mA measurement
  • Pressure Calibrator includes proven cleanout ports reduce pump failures

Applications

  • Petro-Chemical
  • Oil and Gas
  • Food and Beverage
  • Pharmaceutical
  • Test and Measurement
  • Instrumentation

Application Selection Guide

Fluke 754 Documenting Process Calibrator with HART communication Fluke 721 Dual Sensor Pressure Calibrators Fluke 719PRO Electric Pressure Calibrators Fluke 719 Pressure Calibrator Fluke 718 Series Pressure Calibrators Fluke 717 Series Pressure Calibrators Fluke 700G Series Pressure Test Gauge Fluke 3130-G2M Portable Pneumatic Pressure Calibrators Fluke 2700G Series Pressure Gauges Fluke Deadweight Testers
Model number 754 721/​721Ex 719Pro 719 718 717 700G 3130 2700G Dead-weight Testers
Application
Calibrating pressure transmitters (field) Ideal
Calibrating pressure transmitters (bench) Ideal
Calibrating HART Smart transmitters Ideal
Documenting pressure transmitter calibrations Ideal
Testing pressure switches in the field Ideal
Testing pressure switches on the bench Ideal
Documenting pressure switch tests Ideal
Testing pressure switches with live (voltage) contacts Ideal
Gas custody transfer computer tests Ideal
Verifying process pressure gauges (field) Ideal
Verifying process pressure gauges (bench) Ideal
Logging pressure measurements Ideal
Testing pressure devices using a reference gauge Ideal
Hydrostatic vessel testing Ideal
Leak testing (pressure measurement logging) Ideal
Pressure Calibration Selection Guide

Fluke 719-100G Specifications

Storage Temp. -30 to 60 °C
Operating temperature -10 to 55 °C
Shock 1 meter drop test
Safety CSA C22.2 No. 1010.1:1992
EMC EN50082-1:1992 and EN55022:1994 Class B
Size (HxWxL) 60 mm x 87 mm x 210 mm, (2.19 in x 3.41 in x 8.28 in)
Weight 912 g (2 lb)
Battery Two 9 V alkaline batteries
Battery life 12 hours with 12 mA into 500 Ω, 200 pump cycles to 100 psi, 500 pump cycles to 30 psi
Click here for complete specifications on the Fluke 719-100G

What's included with the Fluke 719-100G

  • Fluke 719-100G Pressure Calibrator
  • TL75 Test Leads
  • AC72 Alligator Clip Set
  • Push Fit Connectors
  • Translucent Test Hose
  • Product Overview Manual
  • User's Manual (CD-ROM in 14 Languages)

Click on a category to view a selection of compatible accessories with the Fluke 719-100G Pressure Calibrator, 100 PSI.

Fluke 700HTH-1 Hydraulic Test Hose 700HTH-1
Hydraulic test hose 10,000 psi, 700 bar working pressure test hose that features stainless steel and nylon construction.












Fluke 700PRV-1 Pressure Relief Valve Kit 700PRV-1
To be used with Fluke 700HTP-1 Hydraulic Test Pump.




Fluke 700PTP-1 Pneumatic Test Pump 700PTP-1
The Fluke 700PTP-1 pneumatic test pump is capable of supplying pressures up to 600 psi. For use with 700 series pressure modules or test gauges.
