Fluke Ti32 60Hz Industrial Commercial Thermal Imager, 320 x 240

Model: TI32 | Order No: TI32-60HZ | UPC: 095969498784

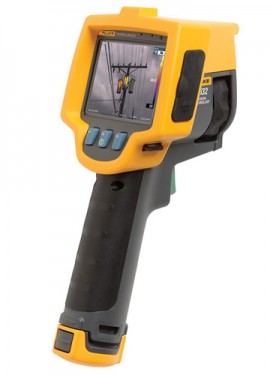

Fluke Ti32 60Hz Industrial Commercial Thermal Imager, 320 x 240-


Downloads: manual

Fluke Ti32 60Hz Industrial Commercial Thermal Imager, 320 x 240

Model: TI32 | Order No: TI32-60HZ

320 x 240 Resolution infrared thermal imager that's rugged enough to withstand a 6.5 foot drop. IR-Fusion® and SmartView analyzing and reporting software included with every model. Clear, crisp images find problems fast.

320 x 240 Resolution infrared thermal imager that's rugged enough to withstand a 6.5 foot drop. IR-Fusion® and SmartView analyzing and reporting software included with every model. Clear, crisp images find problems fast.

This product has been discontinued. Click here for the replacement model(s).


Fluke TI32-60HZ Offers

The P3 Series is comprised of some of the more superior Industrial Thermal Imagers, making it simple and efficient to capture images and analyze data.

Features

  • Its Focal Plane Array (FPA) uncooled microbolometer detector gives an IR resolution of 320 X 240, capturing a detailed image displaying all problematic areas clearly in 76, 800 pixels
  • Thermal sensitivity of ≤0.05°C makes finding any problems quick and simple
  • Optimized for measuring temperatures ranging from -4°F to 1112°F (-20°C to 600°C)
  • Offers the sharpest images in the industry thanks to its combination or thermal sensitivity, spatial resolution and high definition display
  • Its one handed easy-to-use interface helps to navigate all the controls with just the simple use of your thumb
  • Comes with Fluke's own patented IR-Fusion® Technology, allowing you to blend visual and infrared images together for easier and a curate analysis of the problem at hand

Applications

  • Industrial: Monitor mechanical, electromechanical and general building maintenance
  • Process: Inspect refractory insulation, tank and vessel levels, steam systems and traps, pipes and valves, etc
  • Electrical: Monitor unbalanced loads, overloaded systems, wiring problems or component failure, etc

Discover your Thermal Imager

  • Understand the importance of image quality
  • How to better manage your data
  • How our tools are designed for your work environments
  • The ROI you can expect from thermal imaging
  • Learn the importance of innovative solutions that make it simple and easy to capture
  • Analyze and manage thermal imaging
  • Find out why hundreds of professionals choose Fluke thermal imaging
Download the Advanced Thermal Imaging Buyers Guide

Fluke Ti32-60Hz Specifications

IFOV (Spatial Resolution) 1.25 mRad
Detector Resolution 320x240 (76,800 pixels)
Field of View 23°H x 17°V
Minimum Focus Distance 15cm (6")
IR-Fusion Technology IR-Fusion AutoBlend mode and Picture-in-Picture
Display 3.7" diagonal (portrait format)
Thermal Sensitivity (NETD) ≤0.045°C and 45mK
Temperature Measurement Range -20 to 600°C (-4 to 1112°F)
Frame Rate 60Hz
Accuracy ±2°C or 2% (at 25°C nominal, whichever is greater)
On-screen Emissivity Correction Yes
Color Palettes Standard: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted Ultra Contrast™: Ironbow Ultra, Blue-Red Ultra, High Cont
rast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra

What's Included with the Fluke Ti32-60Hz

  • Ti32 Thermal imager with standard infrared lens
  • AC power supply and battery pack charger (including mains adapters)
  • 2 x Lithium ion smart battery packs
  • SD memory card
  • Multi-format USB memory card reader for downloading images into your computer
  • SmartView software with free software upgrades for life
  • Rugged, hard carrying case
  • Soft transport bag
  • Adjustable hand strap
  • Printed users manual
  • Warranty registration card

Fluke SmartView® software is included with all Fluke Thermal Imagers. This powerful software provides a suite of tools that views, optimizes, annotates, and analyzes IR images. It also generates fully customizable and professional-looking reports with the push of a button or in a few easy steps. The Fluke SmartView software is not only easy to use for customers with basic needs, but it also delivers the performance that advanced users require for detailed analysis and reporting.

Fluke SmartView enhances your thermal images:

Image viewing and optimization

  • Displays an array of open images for convenient viewing and analysis
  • Displays the temperature at any given point
  • Optimize images by adjusting level & span, image parameters, add markers, and more!

Extensive annotation possibilities

  • Add annotations to images in the camera or in the PC software
  • Input information such as locations, problem description, recommended actions, and other notes
  • Reference images can be linked together for good/bad and before/after analysis
  • Annotations can be automatically included in reports
  • Review voice annotations captured in the field by the imager

Detailed analysis and total image control

  • A complete set of marker tools are provided (Hot and Cold points, user defined markers, etc.)
  • Use 3D-IR™ to view images from different perspectives, identify additional problems, and eliminate false positives the ultimate analysis tool for your digital infrared thermal imaging needs
  • IR-Fusion®: Five viewing modes enable image optimization based on application needs

Simplified report generation

  • Generate professional customized reports fast
  • One-click report generation for a quick result
  • Choice of features including before/after, IR plus visible light, annotations, supporting data and graphics
  • Report wizard guides the user through advanced report generation

System requirements

  • Windows ® XP SP2/Vista/7
  • A web browser for product registration and web updates. Internet Explorer 5.0 or newer
  • 512 MB of RAM minimum (1 GB for Vista or 7)
  • 360 MB of hard disk space for product installation
  • 16-bit color, 1024 x 768 resolution video or better
  • Color printer for printing the images
  • CD-ROM drive (for installing SmartView software)

Click on a category to view a selection of compatible accessories with the Fluke Ti32 60Hz Industrial Commercial Thermal Imager, 320 x 240.

Fluke FLK-050-CLKT C-Range IR Window 2" (50mm) FLK-050-CLKT
2" (50mm) C-Range IR Window for indoor and outdoor applications, with KWIK Twist Key that easily swivels off.




Fluke FLK-075-CLKT C-Range IR Window 3" (75mm) FLK-075-CLKT
3" (75mm) C-Range IR Window for indoor and outdoor applications, with KWIK Twist Key that easily swivels off.




Fluke FLK-100-CLKT C-Range IR Window 4" (100mm) FLK-100-CLKT
C-Range IR Window for Outdoor and Indoor Applications, 4" (100m) with KWIK Twist.




Fluke CV200 ClirVu 50 mm (2 in) Infrared Window, Hand Turn CV200
Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance.




Fluke CV401 ClirVu 95 mm (4 in) Infrared Window, Security Key CV401
Increase the safety and speed of your electrical thermal imaging inspection with the new Fluke CV Series of ClirVu infrared windows.




Fluke CV400 ClirVu 95 mm (4 in) Infrared Window, Hand Turn CV400
Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance.




Fluke CV300 ClirVu 75 mm (3 in) Infrared Window, Hand Turn CV300
Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance.




Fluke TI-TRIPOD Tripod Mounting Base Accessory TI-TRIPOD
Tripod Mounting Base Accessory for Fluke thermal imagers.




Fluke BOOK-ITP Introduction to Thermography Principles Book BOOK-ITP
Provides an overview of the latest information on the safe, efficient, and practical use of thermal imagers. Full-color, soft-cover book that depicts and describes many thermal images of electrical, electro-mechanical, HVAC/R, process, and building inspection applications with real-world examples illustrate commercial, industrial, municipal, and residential environments and applications.




Fluke TI-VISOR Thermal Imager Visor TI-VISOR
For use with Fluke Ti-series Thermal Imagers.








Fluke TI-SBP3 Spare Battery Pack TI-SBP3
Extra battery pack for Ti400, Ti300, Ti200, Ti125, Ti110, Ti105, Ti100, Ti95, Ti90, TiR125, TiR110, TiR105, Ti32, Ti29, Ti27, and TiS Infrared Cameras.
